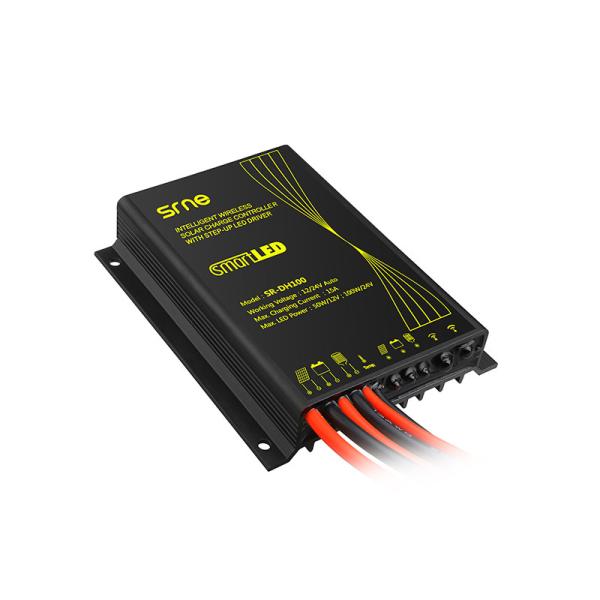

CE 12V Solar Street Light Charge Controller , IP68 Srne Charge Controller
CE 12V Solar Street Light Charge Controller , IP68 Srne Charge Controller
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SRNE
Model Number :
SR-DM160
Certification :
CE/RoHS/ ISO9001
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
packing situation:30 pieces for a carton the carton size:335*295*240mm
MOQ :
1
Price :
Negotiable
Application :
Lighting Controller
Maximum Current :
15A
Rated Voltage :
12V/24V
Product name :
solar street light controllers
Output current accuracy :
±3% or ±30mA
Light control voltage :
5V~15V;2/24V
Working temperature :
-40℃ ~ +60℃
Weight :
390g/490g
MPPT tracking efficiency :
>99%
Voc of solar panel :
<75V
Port :
shenzhen
Description

CE 12V Solar Street Light Charge Controller , IP68 Srne Charge Controller

China manufacturer 15A 24V LED solar street light charge controller

Product Description

MPPT technology
1. Clock timing function
2. Regulatory mechanism of temperature compensation(Only available in
30A/40A/50A/60A)
3. Ultra Low Power Consumption
4. Built-in solar data monitoring interface(RS485)(Only available in
30A/40A/50A/60A)
5. LCD Display with backlight
6. Good heat dissipation effect with less noise
7. Light control mode, Time control mode
8. Reverse protection, short circuit protection
9. Designed for 12V/24V/48V solar power system
10. Hanging style design makes it convenient to install
11. Available in 10A/20A/30A/40A/50A/60A


Protection

* PV array short circuit
* over discharge Protection
* Discharge voltage protection
* IP21 Mechanical protection
* Load overload
* the input low voltage protection
* PV Lightning protection
* Battery reverse polarity

Parameter of SR-DM120/DM160

Parameter Name Value
Model DM120 DM160
Supported battery Lead acid battery(gel included) and lithium battery
Battery voltage 12V 24V 12V 24V
Battery voltage range 7V~32V
Charge current 10A 15A
Limited charge current
Solar panel power 130W 260W 200W 400W
Solar input voltage 17V~60V 34V~60V 17V~60V 34V~60V
Circuit efficiency ≤95% ≤97% ≤95% ≤97%
Voc of solar panel <60V
MPPT tracking efficiency >99%
Limited Charge voltage 15.5V;×2/24V
Over voltage protection 17.0V;×2/24V
Over-discharge voltage 7.5V~15.5V;×2/24V
Max load power 60W 120W 80W 160W
Output voltage range 15V~60V 30V~60V 15V~60V 30V~60V
Output current range 70~4200 mA 70~5600 mA
Output current accuracy ±3% or ±30mA
Light control voltage 5V~15V;×2/24V
Working temperature -40℃ ~ +60℃
Weight 390g 490g
Product dimension 114×88.3×24.5(mm) 142×88.3×24.5(mm)
Protection

1. IP68 degree;

2. PV and Battery reverse connection;

3. internal overheat;

4. PV over voltage, short circuit;

5. charge,discharge over load;

6. Anti converse charge at night;

7.TVS protection to PV.

8. Load short circuit, open circuit ;

9. Battery open circuit

CE 12V Solar Street Light Charge Controller , IP68 Srne Charge ControllerCE 12V Solar Street Light Charge Controller , IP68 Srne Charge ControllerCE 12V Solar Street Light Charge Controller , IP68 Srne Charge Controller

Why choose us?
SRNE, as a high-tech enterprise with the government support ,and with own R&D team as well as factory, has become the famous brand and the experts of PV storage management and control, we always insist on good quality, professional service and leading technology. Besides, customer can purchase premium products with favorable prices from us.
Our R&D team and service: in SRNE, there' re some technicians having more than 10 years experience in the field of solar controller and all the products we design are the trend of market development.
Our tenet is continuously in pursuit of warm customer service.


FAQ:

Q: what kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.

Q: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV
inverter,PV energy storage oriented.And we have our own factory.

Q: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.

Q: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order: 4-8 working days after confirming the sample

Q: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is
below 0.1%.we do try our best to provide a good customer service.
