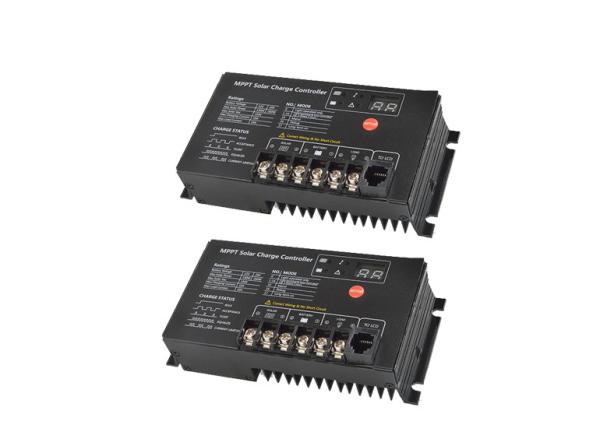

ABS 12 Volt Solar Panel Regulator Lithium Battery Solar Charge Controller

Features of SR-MT2410

1. Adopting double crest or multi crest tracing technique,used for the condition when a part of solar panel is under shadow or parts of panel isdammage
2. Built-in maximum power point tracking algorithm which could promote the energy utilization efficiency of pv system.The charging efficiency is 15%~20% higher than PWM mode
3. It can find out the best working point of I-V curve within 1 minuite,the MPPT efficiency could reach to 99.9%.
4. Adopting advanced digital power supply techniques which makes the energy conversion efficiency reach up to 97%
automatically,which enable the system to work under the rated charging current
5. Have the fault code indication,it helps user confirm the rated charging current.
6. Various load control methods.could recognize day and night qutomatically.
7. Various system protection functions.including over-charge,over-discharge,over-dischage,over-load,over-heat,battery-reverse connection and short-circuit protection eyc.

Installation and use instruction of SR-MT2410

1. Fix the controller: Fix the controller onto the surface of the specific place. Keep a certain distance between the controller and fitting surface to assure heat dissipation
2. Wire preparation: Adopt the wire matching the current,plan the length of wire, strip 5mm insulation of one side of the controller terminal and try to decrease the length of the connected wire so that a reduction in electrical loss.
3. Connect to the battery: connect the battery wire to the controller firstly, Pay attention to the “+” and “–”, in case of reverse connection. If connected well, the indicator light will be on. Otherwise, please check the connection. If reverse connection, controller will not working but not damage the controller.
4. Connect to the solar panel: Pay attention to the “+” and “–”, not reverse connect. If ample sunshine, controller will show charging mode. Or should check the connection is right or wrong. If solar panel under the sunshine will produce voltage immediately. If use 24V or more than 24V system, the solar panel voltage will exceed to body safety voltage, when use please prevent you self from electric shock.
5. Connect Load:Connected the load to controller,make sure the current cannot over the rated current, and notice the positive and negative electrode. Prevent the system from reverse connect.

Parameter of SR-MT2410

FAQ
1 Q: Do you have your own factory? Can we visit?
1 A: Absolutely.You are always welcomed to visit our factory.

2 Q: How do you control the quality of the products?
2 A: Our factory has obtained CE and ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.

3 Q: What kind of payment do you accept?
3 A: We accept T/T, Paypal, Western Union .

4 Q: How long the delivery time?
4 A: 2-7 days for ex-stock orders.

5 Q: What kind of controller you mainly manufacturer?
5 A: We mainly produce PWM solar charge controller, MPPT solar charge controller.

6 Q: Can we print our company logo on product and package?
6 A: Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.

7 Q: How long is the warranty period?
7 A: 3 years warranty.
