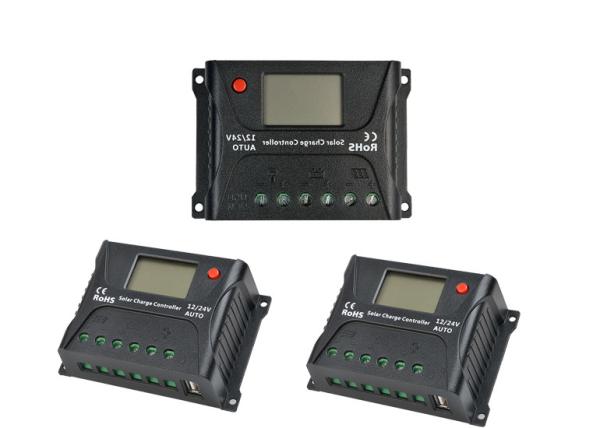

PWM Solar Panel Regulator Charge Controller For Small Off Grid Solar System
PWM Solar Panel Regulator Charge Controller For Small Off Grid Solar System
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SRNE
Model Number :
SR-HP2410
Certification :
CE/RoHS/ ISO9001
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
30 pieces in a carton the carton size:369*222*178mm
MOQ :
1
Price :
Negotiable
Application :
Charger Controller
Maximum Current :
10A/20A
Rated Voltage :
12V/24V
Name :
Small solar system
Rated Current :
10A/20A
Dimension :
103*71*36(mm)
Protection :
Overcharge
System voltage :
12V/24V Auto
Weight :
100g
Operating temperature :
-25℃ to +55℃
IP protection degree :
IP30
Control Mode :
PWM
Port :
shenzhen
Description

PWM Solar Panel Regulator Charge Controller For Small Off Grid Solar System

12v 24v 10amp pwm solar panel charge controller for small off-grid solar system HP2410

Product Description

Features of SR-HP2410/2420

1. 12V/ 24 V system voltages are automatically recognized.
2. An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charging to the battery periodically or when over discharged, can effectively prevent the battery from non-equalization and sulfuration, thus extending the battery's service life.
3. With temperature compensation employed, charging parameters can be automatically adjusted.
4. A wide range of load working modes facilitate the product's application to different types of load.
5. The product provides overcharge, over-discharge, overload protection, as well as short-circuit protection.
6. By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.
7. The product provides a dot matrix graphic LCD screen and a human-machine interface with a key.
8. The user-friendly design of browser and dynamic interfaces ensure convenient and intuitive operations.
9. Boasting an industrial grade design, the product can function well in various tough conditions.
10. TVS lighting protection is adopted.

Our Advantages
1. Mini size, high power density.
2. Various load control methods. Latest design 12v 24v 48v solar system controller
3. Built-in maximum power point trackingalgorithm which could promote the pvsystem’s energy
utilization efficiency. Thecharging efficiency is 15%~20% higherthan PWM mode.
4. Adopting advanced digital power supplytechnology which make the energyconversion efficiency reach up to 97%

Parameter of SR-HP2410/2420

Model

HP2410

HP2420

HP2420-S

Rated current

10A

20A

20A

current display function

No

No

Yes

System voltage

Automatic recognition of 12 V/ 24 V

No-load loss

< 10mA/12V;< 12mA/24V

Max. Solar energy input voltage

<55V

Max. voltage at the battery end

<35V

Overvoltage protection

17.0V;×2/24V;

Equalizing charging voltage

14.6V;×2/24V;

Boost charging voltage

14.4V;×2/24V;

Floating charging voltage

13.8V;×2/24V;

Charging recovery voltage

13.2V;×2/24V;

Over-discharge recovery voltage

12.6V;×2/24V;

Over-discharge voltage

11.1V;×2/24V;

Equalizing charging interval

30days

Equalizing charging time

1H

Boost charging time

2H

Temperature compensation

-3.0mV/℃/2V

Light control voltage

Light control on 5V, ×2/24V;

light control off 6V, ×2/24V;

Light control judgment time

1minute

Operating temperature

-25℃ to +55℃;

IP protection degree

IP30

Net weight

100g

160g

Protection functions

Solar panel short circuit and reverse-connection protection

Dimensions

103×71×36(mm)

130×75×38 (mm)

Detail of SR-HP2410/2420

PWM Solar Panel Regulator Charge Controller For Small Off Grid Solar System

PWM Solar Panel Regulator Charge Controller For Small Off Grid Solar SystemPWM Solar Panel Regulator Charge Controller For Small Off Grid Solar SystemPWM Solar Panel Regulator Charge Controller For Small Off Grid Solar SystemPWM Solar Panel Regulator Charge Controller For Small Off Grid Solar SystemPWM Solar Panel Regulator Charge Controller For Small Off Grid Solar System

Why choose us?
SRNE, as a high-tech enterprise with the government support ,and with own R&D team as well as factory, has become the famous brand and the experts of PV storage management and control, we always insist on good quality, professional service and leading technology. Besides, customer can purchase premium products with favorable prices from us.
Our R&D team and service: in SRNE, there' re some technicians having more than 10 years experience in the field of solar controller and all the products we design are the trend of market development.
Our tenet is continuously in pursuit of warm customer service.


FAQ:

Q: what kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.

Q: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV
inverter,PV energy storage oriented.And we have our own factory.

Q: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.

Q: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order: 4-8 working days after confirming the sample

Q: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is
below 0.1%.we do try our best to provide a good customer service.
