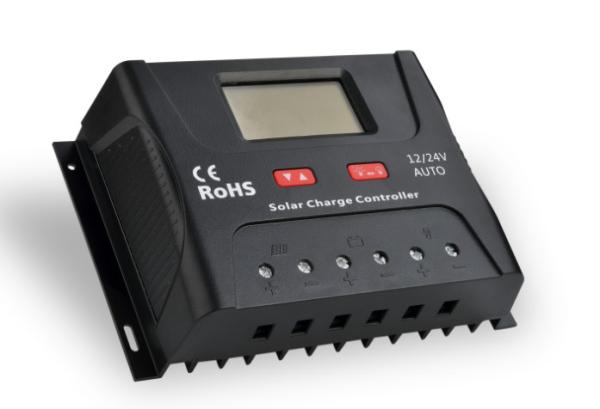

12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging
12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging
12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging
12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging
12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging
12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging
12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging
12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging
12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging
12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging
Specifications
Place of Origin :
China
Brand Name :
Srne
Model Number :
HP2450 and HP2460
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
packing situation:16 pieces for a carton the carton size :590*250*250mm
MOQ :
1
Price :
Negotiable
Application :
Charger Controller, Solar System Controller
Type :
PWM
Port :
shenzhen
Rated voltage :
12/24v/48v
Display :
Digital LCD screen
Color :
Black
Description

12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging

12V 24V/48v 10A/20A/30A 40a 50a/60a solar charger controller pwm solar Controller manual PWM Solar Charge Controller

Product Description

Features of SR-HP2450/2460

1. Automatic identification system voltage
2. Charging program options for sealed, GEL and flooded lead-acid batteries and lithium batteries are available.
3. A wide range of load working modes facilitate the product's application to different types of street lights and monitoring devices.
4. The product provides overcharge, over-discharge, overload protection, as well as short-circuit and reverse-connection protection.
5. By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.
6. A range of parameter settings and power-down saving functions are available ,thus requiring no repeated setting.
7. (An optional communication function) provides a RJ12 data port (output of TTL232 level or bluetooth signals), with the data adopting the standard Modbus protocol, can be used together with our upper computer Monitoring software or mobile phone APP.
8. Boasting an industrial grade design, the product can function well in various tough conditions.
9. TVS lighting protection is adopted.

Advantage:
1. IP30,Strong and durable aluminum case
2. 12V/24V automatic recognition
3. Remote(infrared) Unit to configure,with LCD display
4. External temperature sensor, automatic temperature compensation
5. PWM voltage regulation use 3 stages of charging way
6. Battery type and protection level selection
7. Full automatic electronic protect function
8. 5 stages time could be adjusted

Parameter of SR-HP2450/2460

Model

HP2450

HP2460

Rated current

50A

60A

System voltage

Automatic recognition of 12V/24V

Rated power

12V/750W

24V/1500W

12V/900W

24V/1800W

No-load loss

< 13mA/12V;< 15mA/24V

Max. Solar energy input voltage

<55

Max. voltage at the battery end

<34V

Overvoltage protection

16.0V

Charging recovery voltage

13.2V

Over-discharge recovery voltage

12.5V(settable with the keys)

Over-discharge voltage

11.0V(settable with the keys)

Boost charging time

2H

Temperature compensation

-3.0mV/℃/2V

Light control voltage

Light control on 5V, light control off 6 V (light control on plus 1 V)

Light control judgment time

10 minutes

USB function

NO

Operating temperature

-25℃~+55℃

IP protection degree

IP30

Net weigh

650g

Protection functions

attery reverse connection protection, solar panel reverse connection protection Notice 1, reverse charging protection at night ,Charging overload protection, overcurrent protection , short circuit protection

Dimensions

189.27×127.2×54.0 (mm)

Detail of SR-HP2450/2460

12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging

12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging12V 24V 48V Solar Charge Controller 10A 20A 30A 40a 3 Stage PWM Charging

Why choose us?
SRNE, as a high-tech enterprise with the government support ,and with own R&D team as well as factory, has become the famous brand and the experts of PV storage management and control, we always insist on good quality, professional service and leading technology. Besides, customer can purchase premium products with favorable prices from us.
Our R&D team and service: in SRNE, there' re some technicians having more than 10 years experience in the field of solar controller and all the products we design are the trend of market development.
Our tenet is continuously in pursuit of warm customer service.


FAQ:

Q: what kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.

Q: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV
inverter,PV energy storage oriented.And we have our own factory.

Q: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.

Q: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order: 4-8 working days after confirming the sample

Q: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is
below 0.1%.we do try our best to provide a good customer service.
