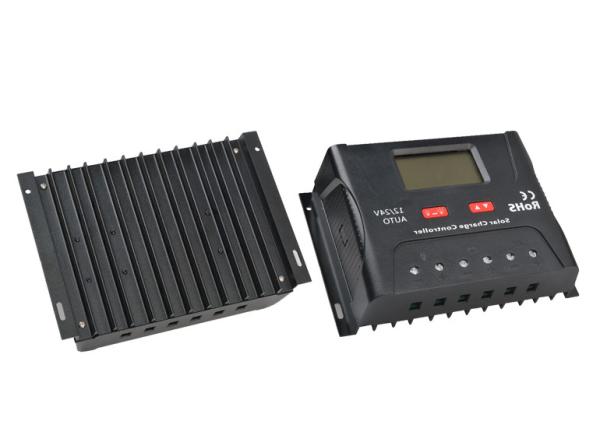

SRNE 60A Solar System Controller Battery Charge Regulator For Photovoltaic Systems
SRNE 60A Solar System Controller Battery Charge Regulator For Photovoltaic Systems
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SRNE
Model Number :
SR-HP2460
Certification :
CE/RoHS/ ISO9001
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
packing situation:16 pieces for a carton the carton size :590*250*250mm
MOQ :
1
Price :
Negotiable
Application :
Solar System Controller, Solar home system and off-grid solar pv system
Maximum Current :
60A
Rated Voltage :
12V/24V
Name :
solar charger controller
Overvoltage protection :
16.0V
Operating temperature :
-25℃~+55℃
IP protection degree :
IP30
Net weight :
650g
Dimensions :
189.27*127.2*54.0 (mm)
Temperature compensation :
-3.0mV/℃/2V
Port :
shenzhen
Description

SRNE 60A Solar System Controller Battery Charge Regulator For Photovoltaic Systems

Competitive price easy install waterproof PWM solar charge controller manual

Product Description

Features of SR-HP2450/2460

1. Automatic identification system voltage
2. Charging program options for sealed, GEL and flooded lead-acid batteries and lithium batteries are available.
3. An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charge to the battery periodically or when over discharged, can effectively prevent the battery from non-equalization and sulfuration, thus extending the battery's service life (with the exception of GEL and lithium batteries).
4. With temperature compensation employed, charging parameters can be automatically adjusted (with the exception of lithium batteries).
5. A wide range of load working modes facilitate the product's application to different types of street lights and monitoring devices.
6. The product provides overcharge, over-discharge, overload protection, as well as short-circuit and reverse-connection protection.
7. Boasting an industrial grade design, the product can function well in various tough conditions.
8. TVS lighting protection is adopted.

Parameter of SR-HP2450/2460

Model

HP2450

HP2460

Rated current

50A

60A

System voltage

Automatic recognition of 12V/24V

Rated power

12V/750W

24V/1500W

12V/900W

24V/1800W

No-load loss

< 13mA/12V;< 15mA/24V

Max. Solar energy input voltage

<55

Max. voltage at the battery end

<34V

Overvoltage protection

16.0V

Charging recovery voltage

13.2V

Over-discharge recovery voltage

12.5V(settable with the keys)

Over-discharge voltage

11.0V(settable with the keys)

Boost charging time

2H

Temperature compensation

-3.0mV/℃/2V

Light control voltage

Light control on 5V, light control off 6 V (light control on plus 1 V)

Light control judgment time

10 minutes

USB function

NO

Operating temperature

-25℃~+55℃

IP protection degree

IP30

Net weigh

650g

Protection functions

attery reverse connection protection, solar panel reverse connection protection Notice 1, reverse charging protection at night ,Charging overload protection, overcurrent protection , short circuit protection

Dimensions

189.27×127.2×54.0 (mm)

Detail of SR-HP2450/2460

SRNE 60A Solar System Controller Battery Charge Regulator For Photovoltaic SystemsSRNE 60A Solar System Controller Battery Charge Regulator For Photovoltaic Systems

SRNE 60A Solar System Controller Battery Charge Regulator For Photovoltaic SystemsSRNE 60A Solar System Controller Battery Charge Regulator For Photovoltaic SystemsSRNE 60A Solar System Controller Battery Charge Regulator For Photovoltaic SystemsSRNE 60A Solar System Controller Battery Charge Regulator For Photovoltaic SystemsSRNE 60A Solar System Controller Battery Charge Regulator For Photovoltaic SystemsSRNE 60A Solar System Controller Battery Charge Regulator For Photovoltaic Systems

Why choose us?
SRNE, as a high-tech enterprise with the government support ,and with own R&D team as well as factory, has become the famous brand and the experts of PV storage management and control, we always insist on good quality, professional service and leading technology. Besides, customer can purchase premium products with favorable prices from us.
Our R&D team and service: in SRNE, there' re some technicians having more than 10 years experience in the field of solar controller and all the products we design are the trend of market development.
Our tenet is continuously in pursuit of warm customer service.
