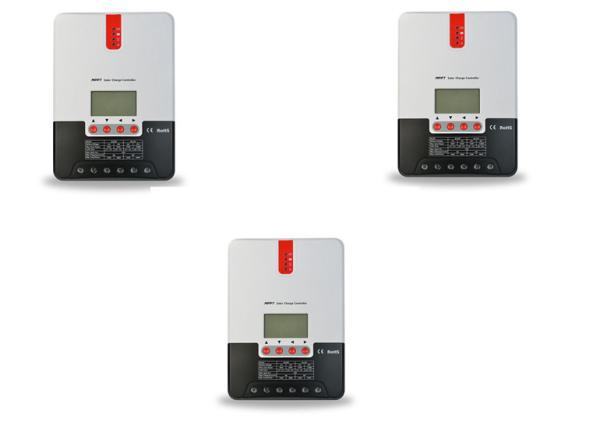

SR ML2430 Rv Solar Panel Controller 24V 30A Solar Charge Regulator 1.15Kg
SR ML2430 Rv Solar Panel Controller 24V 30A Solar Charge Regulator 1.15Kg
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SRNE/OEM
Model Number :
SR-ML2430
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
Size:180.7*115*72(mm) Weight:2.5(kg)
MOQ :
1
Price :
Negotiable
Application :
Solar System Controller
Maximum Current :
30A
Rated Voltage :
12V/24V
System current :
30A
Load Power (W) :
360W~2880W
Solar Power (W) :
540W~4320W
solar input voltage :
<140v
Weight :
1.15Kg
size :
180.7*115*72(mm)
work temperature :
-35℃ to 85℃
warranty :
one year for replacement
Port :
Shenzhen
Description

SR ML2430 Rv Solar Panel Controller 24V 30A Solar Charge Regulator 1.15Kg

SRNE 30A mppt regulator lithium battery charge controller lcd display

Product Description

Features of SR-ML2430

  • A built-in maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems, and raise the charging efficiency by 15% to 20% compared with the conventional PWM method.

  • The product boasts an optimum MPPT tracking efficiency of up to 99.9%.

  • Advanced digital power supply technologies raise the circuit's energy conversion efficiency to as high as 98%.

  • Charging program options are available for different types of batteries including gel batteries, sealed batteries, open batteries, lithium batteries, etc.

  • Instantaneous large current startup of capacitive loads is supported.

  • Automatic recognition of battery voltage is supported.

  • LED fault indicators and an LCD screen which can display abnormality information help users to quickly identify system faults.

  • Historical data storage function is available, and data can be stored for up to a year.

  • The controller is equipped with an LCD screen with which users can not only check device operating data and statuses, but also modify controller parameters.

  • The controller employs a built-in over-temperature protection mechanism. When temperature surpasses the set value, the charging current will decline in linear proportion to the temperature so as to curb the temperature rise of the controller, effectively keeping the controller from being damaged by overheat.

  • Featuring a temperature compensation function, the controller can automatically adjust charging and discharging parameters in order to extend the battery's service life.

  • TVS lighting protection

Parameter of SR-ML2430

Parameter

ML2430

System voltage

12V/24V Auto

No-load loss

0.7 W to 1.2W

Battery voltage

9 to 35

Max. solar input voltage

100V (25°C), 90V (-25°C)

Max. power point voltage range

Battery voltage +2V to 75V

Rated charging current

20A

Rated load current

20A

Max. capacitive load capacity

10000uF

Conversion efficiency

≤ 98%

MPPT tracking efficiency

> 99%

Operating temperature

35°C to +45℃

Protection degree

IP32

Weight

2kg

Communication method

RS232

Altitude

≤ 3000m

Product dimensions

238*173*72.5mm

Detail of SR-ML2430

SR ML2430 Rv Solar Panel Controller 24V 30A Solar Charge Regulator 1.15Kg

SR ML2430 Rv Solar Panel Controller 24V 30A Solar Charge Regulator 1.15Kg

SR ML2430 Rv Solar Panel Controller 24V 30A Solar Charge Regulator 1.15KgSR ML2430 Rv Solar Panel Controller 24V 30A Solar Charge Regulator 1.15KgSR ML2430 Rv Solar Panel Controller 24V 30A Solar Charge Regulator 1.15KgSR ML2430 Rv Solar Panel Controller 24V 30A Solar Charge Regulator 1.15Kg

FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment for regular order

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: Sample can be sent upon request as you requested, sample fee refund after order placed

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
