Specifications
Place of Origin :
Guangdong, China
Brand Name :
SRNE
Model Number :
SR-HP4840
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
Package:1pc/box;18pcs/ctn
MOQ :
1
Price :
Negotiable
Application :
Solar System Controller
Maximum Current :
40A, 40A
Rated Voltage :
12/24/36/48V(Auto)
Size :
189.27*127.3*54MM
Weight :
650g
Warranty :
1 year
Max. input power :
600W/12V;1200W/24V;1800W/36V;2400W/48V
Work temperature :
-25~55
Port :
FOB shenzhen
Description

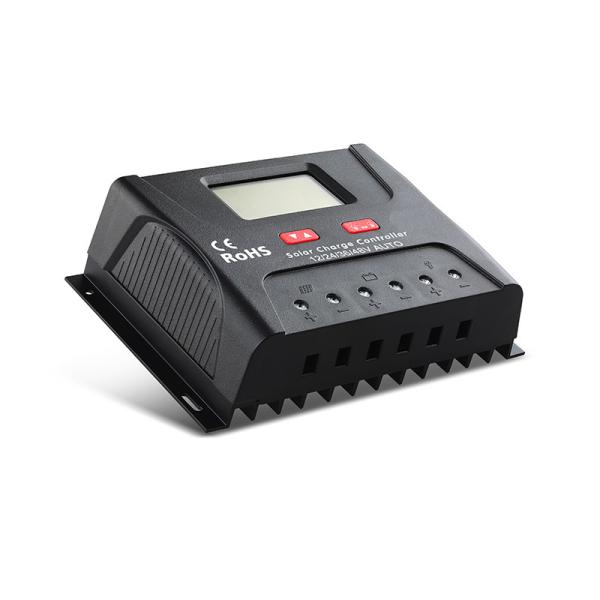

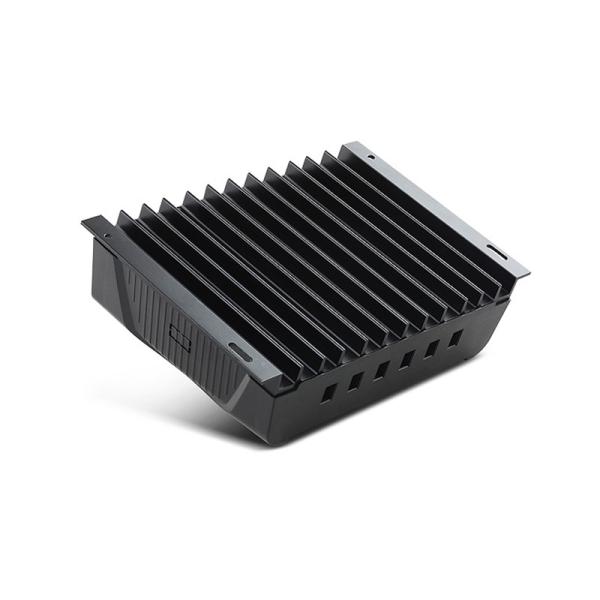

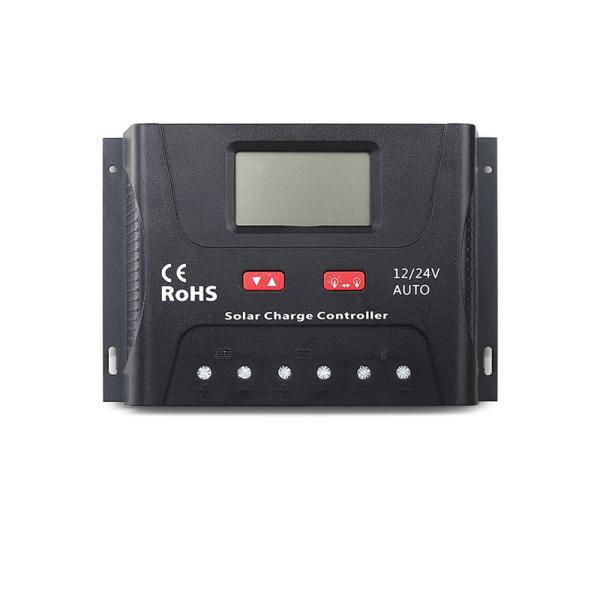

Durable 40A 48v Solar Panel Charge Controller SR HP4840 For Home System

Features
● PWM charging

● Battery type selectable: Sealed, Gel, and Flooded

● Informative black light LCD display

● Double USB design, Max. output 2.4A

● Multiple load control modes

● Energy statistics function

● Full power working at temperature range from -25 to 55 ℃

● Adopt high quality, high reliability components of ST,IR and Infineon

● UL and VDE certified Nickel plated copper terminals, to ensure safe and solid connection

● Battery temperature compensation function

● Extensive Electronic protection

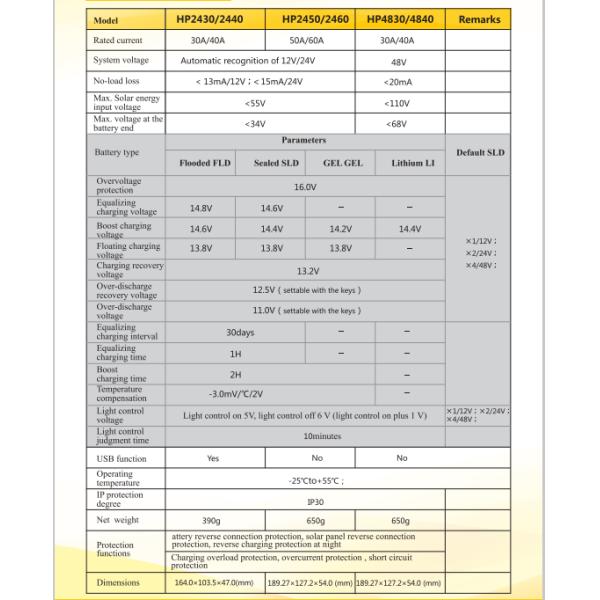

Model HP2430/2440 HP2450/2460 HP4830/4840 Remarks
Rated current 30A/40A 50A/60A 30A/40A
System voltage Automatic recognition of 12V/24V 48V
No-load loss < 13mA/12V;< 15mA/24V <20mA
Max. Solar energy input <55 <110V
voltage
Max. voltage <34V <68V
at the battery end
Battery type Parameters
Flooded Sealed GEL Lithium Default
FLD SLD GEL LI SLD
Overvoltage protection 16.0V *1/12V
Equalizing charging 14.8 14.6 - -
*2/24V
voltage
Boost charging voltage 14.6 14.4 14.2 14.4 *4/48V
Floating charging voltage 13.8 13.8 13.8 -
Charging recovery voltage 13.2V
Over-discharge recovery voltage 12.5V; settable with the keys
Over-discharge voltage 11.0V; settable with the keys
Equalizing charging interval 30days - -
Equalizing charging time 1H - -
Boost charging time 2H -
Temperature -3.0mV/ Degree Celsius /2V -
compensation
Light control voltage Light control on 5V, light control off 6V (light control on plus1 V) *1/12V
*2/24V
Light control 10 minutes *4/48V
judgment time
USB function Yes No No
Operating temperature -25 to +55 Degree Celsius
IP protection degree IP30
Net weight 390g 650g 650g
Protection battery reverse connection protection, solar panel reverse connection protection, reverse charging protection at night
functions Charging overload protection, over current protection , short circuit protection
Dimensions 164.0*103.5*47.0(mm) 189.27*127.2*54.0 (mm) 189.27*127.2*54.0 (mm)

Durable 40A 48v Solar Panel Charge Controller SR HP4840 For Home System

Durable 40A 48v Solar Panel Charge Controller SR HP4840 For Home SystemDurable 40A 48v Solar Panel Charge Controller SR HP4840 For Home SystemDurable 40A 48v Solar Panel Charge Controller SR HP4840 For Home System

Why choose us?
SRNE, as a high-tech enterprise with the government support ,and with own R&D team as well as factory, has become the famous brand and the experts of PV storage management and control, we always insist on good quality, professional service and leading technology. Besides, customer can purchase premium products with favorable prices from us.
Our R&D team and service: in SRNE, there' re some technicians having more than 10 years experience in the field of solar controller and all the products we design are the trend of market development.
Our tenet is continuously in pursuit of warm customer service.


FAQ:

Q: what kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.

Q: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV
inverter,PV energy storage oriented.And we have our own factory.

Q: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.

Q: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order: 4-8 working days after confirming the sample

Q: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is
below 0.1%.we do try our best to provide a good customer service.
