12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a
12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a
Specifications
Place of Origin :
China
Brand Name :
SRNE
Model Number :
HP2460
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
12v 24v 60a solar power regulator intelligent pwm solar charge controller for sale packing situation:16 pieces for a carton the carton size :590*250*250mm
MOQ :
1
Price :
Negotiable
Max PV Voltage :
55V
Type :
PWM Solar Charge Controller
Product name :
HP2460
Protection :
IP30
System voltage :
12V/24V Auto
Charge way :
Sunshine
Color :
BLACK
Weight :
650G
Keywords :
Solar Charger Controller PWM
Output :
5V*1A
Working Temperature :
-25℃-55℃
Port :
shenzhen
Description

12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a

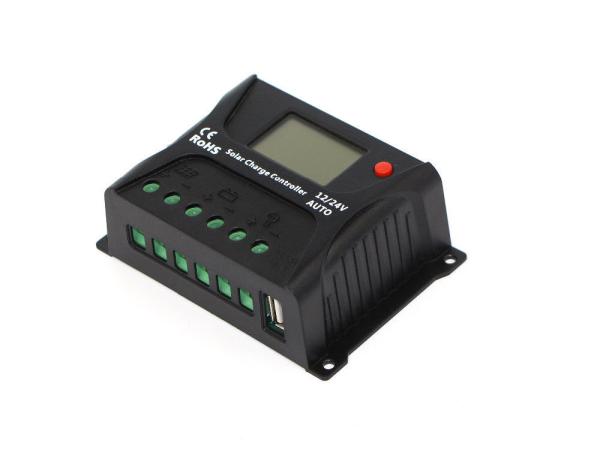

12v 24v 30a 40a 50a 60a srne brand pwm solar charge controller with LCD display and USB port HP2460

Product Description

Features of SR-HP2450/2460

1. Automatic identification system voltage
2. Charging program options for sealed, GEL and flooded lead-acid batteries and lithium batteries are available.
3. An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charge to the battery periodically or when over discharged, can effectively prevent the battery from non-equalization and sulfuration, thus extending the battery's service life (with the exception of GEL and lithium batteries).
4. With temperature compensation employed, charging parameters can be automatically adjusted (with the exception of lithium batteries).
5. A wide range of load working modes facilitate the product's application to different types of street lights and monitoring devices.
6. The product provides overcharge, over-discharge, overload protection, as well as short-circuit and reverse-connection protection.
7. By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.
8. A range of parameter settings and power-down saving functions are available ,thus requiring no repeated setting.


Protection
* PV array short circuit
* over discharge Protection
* Discharge voltage protection
* IP21 Mechanical protection
* Load overload
* the input low voltage protection
* PV Lightning protection
* Battery reverse polarity
* The overcharger protection voltage

Parameter of SR-HP2450/2460

Model

HP2450

HP2460

Rated current

50A

60A

System voltage

Automatic recognition of 12V/24V

Rated power

12V/750W

24V/1500W

12V/900W

24V/1800W

No-load loss

< 13mA/12V;< 15mA/24V

Max. Solar energy input voltage

<55

Max. voltage at the battery end

<34V

Overvoltage protection

16.0V

Charging recovery voltage

13.2V

Over-discharge recovery voltage

12.5V(settable with the keys)

Over-discharge voltage

11.0V(settable with the keys)

Boost charging time

2H

Temperature compensation

-3.0mV/℃/2V

Light control voltage

Light control on 5V, light control off 6 V (light control on plus 1 V)

Light control judgment time

10 minutes

USB function

NO

Operating temperature

-25℃~+55℃

IP protection degree

IP30

Net weigh

650g

Protection functions

attery reverse connection protection, solar panel reverse connection protection Notice 1, reverse charging protection at night ,Charging overload protection, overcurrent protection , short circuit protection

Dimensions

189.27×127.2×54.0 (mm)

Detail of SR-HP2450/2460

12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a

12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a12v 24v Solar Panel Inverter Battery Charge Controller 30a 40a 50a 60a
