USB Port Intelligent Solar Charge Controller High Power Solar Charge Controller
USB Port Intelligent Solar Charge Controller High Power Solar Charge Controller
Specifications
Certification :
CE RoHS ISO9001
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
By color carton
MOQ :
1
Price :
Negotiable
Rated Voltage :
12/24v Automatic Switch
Product name :
On-grid System
Charge mode :
MPPT Charging
Material :
ABS
Rated Current :
10A/20A/30/40A/50A/60A
Weight :
390g
Color :
Black
Display :
LCD Screen
Size :
160*104*47mm
Port :
Shenzhen
Description

USB Port Intelligent Solar Charge Controller High Power Solar Charge Controller

CE Rohs solar chrage controller 30A 40A 50A 60A PWM lead acid battery voltage controller

Product Description

Features of SR-HP2450/2460
1. Clock timing function
2. Regulatory mechanism of temperature compensation(Only available in
30A/40A/50A/60A)
3. Ultra Low Power Consumption
4. Built-in solar data monitoring interface(RS485)(Only available in
30A/40A/50A/60A)
5. LCD Display with backlight
6. Good heat dissipation effect with less noise
7. Light control mode, Time control mode
8. Reverse protection, short circuit protection
9. Designed for 12V/24V/48V solar power system
10. Hanging style design makes it convenient to install
11. Available in 10A/20A/30A/40A/50A/60A

Parameter of SR-HP2450/2460

Model

HP2450

HP2460

Rated current

50A

60A

System voltage

Automatic recognition of 12V/24V

Rated power

12V/750W

24V/1500W

12V/900W

24V/1800W

No-load loss

< 13mA/12V;< 15mA/24V

Max. Solar energy input voltage

<55

Max. voltage at the battery end

<34V

Overvoltage protection

16.0V

Charging recovery voltage

13.2V

Over-discharge recovery voltage

12.5V(settable with the keys)

Over-discharge voltage

11.0V(settable with the keys)

Boost charging time

2H

Temperature compensation

-3.0mV/℃/2V

Light control voltage

Light control on 5V, light control off 6 V (light control on plus 1 V)

Light control judgment time

10 minutes

USB function

NO

Operating temperature

-25℃~+55℃

IP protection degree

IP30

Net weigh

650g

Protection functions

attery reverse connection protection, solar panel reverse connection protection Notice 1, reverse charging protection at night ,Charging overload protection, overcurrent protection , short circuit protection

Dimensions

189.27×127.2×54.0 (mm)

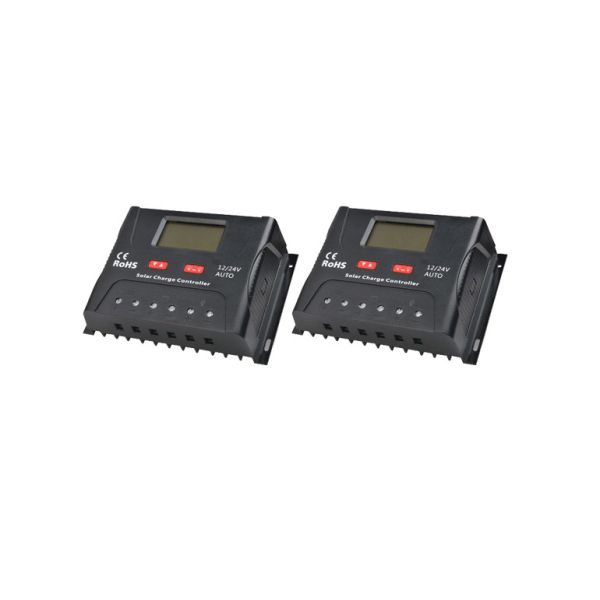

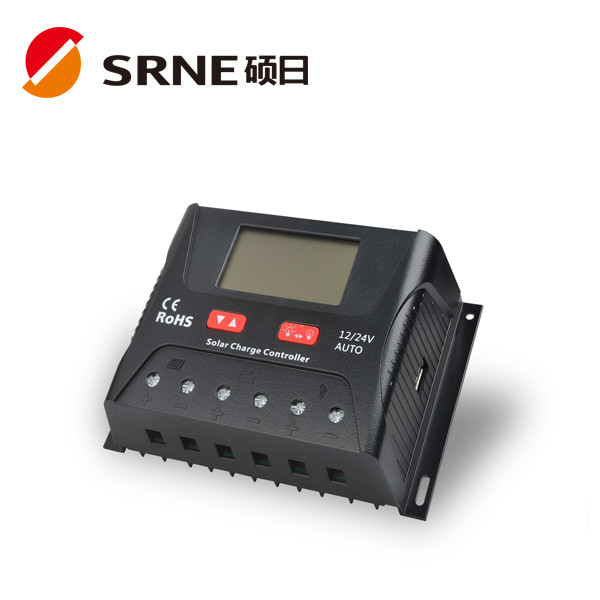

Detail of SR-HP2450/2460

USB Port Intelligent Solar Charge Controller High Power Solar Charge ControllerUSB Port Intelligent Solar Charge Controller High Power Solar Charge Controller

USB Port Intelligent Solar Charge Controller High Power Solar Charge ControllerUSB Port Intelligent Solar Charge Controller High Power Solar Charge ControllerUSB Port Intelligent Solar Charge Controller High Power Solar Charge ControllerUSB Port Intelligent Solar Charge Controller High Power Solar Charge Controller
