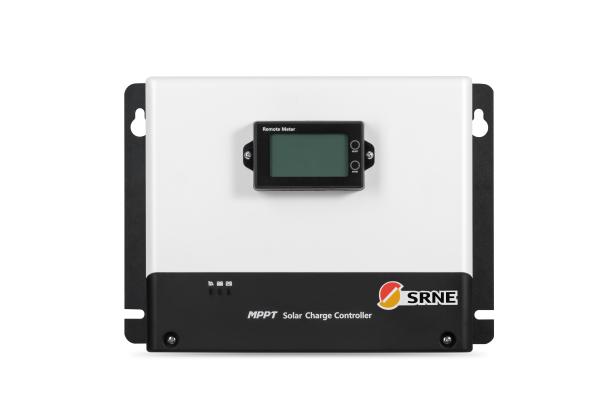

Electronic Intelligent Solar Charge Controller 12V 24V 48V 100A With Bluetooth
Electronic Intelligent Solar Charge Controller 12V 24V 48V 100A With Bluetooth
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SRNE
Model Number :
MC48100N15
Certification :
CE / UL / ISO9001 / ISO14001 / Rohs
Packaging Details :
SRNE Intelligent 12V 24V 48V 100A MPPT Solar Charger Controller 100a with bluetooth
MOQ :
1
Price :
Negotiable
Application :
Charger Controller, Lighting Controller, Voltage Controller, Solar System Controller, RV kits
Type :
MPPT
Work Time (h) :
24
Max PV Voltage :
150V
Max PV Power :
5200W
Product name :
SRNE 12V 24V 48V 100A MPPT Solar Charger Controller 100a
Charge mode :
MPPT Maximum Power Point Tracking
Battery type :
Sealed Gel AGM Flooded Lithium
Function :
Electronic Multi Protective Function
System voltage :
12v/24v/36v/48v Automatic Recognition
Rated Current :
85A/100A
Protection :
Short Circuit
Warranty :
3 Years
Communication Port :
RS485/WiFi/GPRS/LAN/App
Supply Ability :
1000 Piece/Pieces per Month
Description

Electronic Intelligent Solar Charge Controller 12V 24V 48V 100A With Bluetooth

SRNE Intelligent 12V 24V 48V 100A MPPT Solar Charger Controller 100a with bluetooth

Product Description

• A built-in maximum power point tracking (MPPT) algorithm can significantly increase energy utilization efficiency of the photovoltaic system, which is about 15% to 20% higher than traditional PWM charging.
• It provides an active charging voltage regulation feature. At battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output the rated charging voltage value.
• MPPT tracking efficiency is up to 99.9%.
• Due to an advanced digital power technology, the circuit energy conversion efficiency is as high as 98%.
• Available in multiple battery types and support charging procedures of various types of batteries such as lithium battery, colloidal battery, sealed battery, vented battery, lithium battery, etc.
• A current-limited charging mode is available. When the power of solar panel is too large and the charging current is higher than the rated valve, the controller automatically reduces the charging power
so that the solar panel can operate at the rated charging current.
• Support automatic identification of lead-acid battery voltage.
• External LCD screen or Bluetooth module can be connected for viewing of equipment operating data and status, and modification of controller parameters is supported.
• Support standard Modbus protocol to meet communication needs in different occasions.
• Built-in over-temperature protection mechanism ensures that when temperature exceeds the set value of the device, the charging current decreases linearly with the temperature, thereby reducing the temperature rise of controller and avoiding high temperature damage.
• Temperature compensation and automatic adjustment of charge and discharge parameters help to improve battery life.
• Solar panel short circuit protection, battery open circuit protection and TVS lightening protection etc.

Parameter

Value

Model

MC4885N15

MC48100N15

MC4885N25

MC48100N25

System voltage

12V/24V/36V/48V Auto

No-load loss

0.54W

Battery voltage

9 to 64V

Max. solar input voltage

150V

250V

Rated charging current

85A

100A

85A

100A

Support battery type

Lead acid battery, gel battery, seal battery,and lithium battery

Max. photovoltaic system input power

1100W/ 12V

2200W/ 24V

4400W/48V

1320W/ 12V

2640W/ 24V

5280W/48V

1100W/ 12V

2200W/ 24V

4400W/48V

1320W/ 12V

2640W/ 24V

5280W/48V

Conversion efficiency

≤ 98%

MPPT tracking efficiency

> 99%

Temperature compensation factor

-3.0mv/ °C/ 2V (default)

Operating temperature

-35°C to +65℃

Protection degree

IP32

Weight

5.7 Kg

Communication method

TTL/Isolated RS485; baud rate 9600, digital bit 3, stop bit 1, no check bit

Altitude

≤ 3000m

Product dimensions

314*227*121mm
