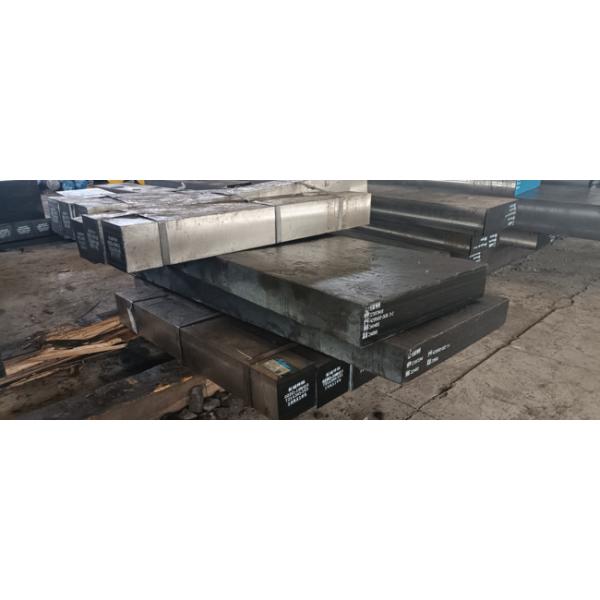

1.2316 DIN X38CrMo 16 Stainless Steel Sheets Plates 1.2316 Hot Forged Parts
1.2316 DIN X38CrMo 16 Stainless Steel Sheets Plates 1.2316 Hot Forged Parts
1.2316 DIN X38CrMo 16 Stainless Steel Sheets Plates 1.2316 Hot Forged Parts
1.2316 DIN X38CrMo 16 Stainless Steel Sheets Plates 1.2316 Hot Forged Parts
1.2316 DIN X38CrMo 16 Stainless Steel Sheets Plates 1.2316 Hot Forged Parts
1.2316 DIN X38CrMo 16 Stainless Steel Sheets Plates 1.2316 Hot Forged Parts
Specifications
Brand Name :
PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL
Model Number :
X38CrMo 16, W-Nr 1.2316
Certification :
SGS, TUV, BV, ISO, MTC
Place of Origin :
China
MOQ :
1000kg
Price :
Negotiations
Payment Terms :
T/T
Supply Ability :
50000KGS/Month
Delivery Time :
Ex-stock for delivery: 3-7 days Production lead time: 30-60 days
Packaging Details :
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Product Name :
1.2316 DIN X38CrMo 16 Stainless Steel Sheets Plates
Characteristic :
Has excellent cutting performance, good toughness, good wear resistance
Heat treatment condition :
+AC, +QT, etc
Processing methods :
Milled, Machined, Peeled
Available Shapes :
Forging piece, Plates, Steel plates
Surface :
Bright, Peeled, etc
Description

1.2316 DIN X38CrMo 16 Stainless Steel Sheets Plates 1.2316 Hot Forged Parts

Product Information

X38CrMo 16/1.2316 is used for chromium molybdenum steels hardened in oil and has very good hardenability and good robustness during heating. Due to the increased chromium content, the corrosion resistance of the steel increases. The steel has excellent wear resistance, good processability and polishability, and is delivered in a heat-treated state when used.

Size Range

Round bar / Wire rod (Diameter): 10.0 mm to 500 mm

Square bar / Flat bar:10.0 mm to 500 mm

Forging piece: Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.

Heavy/middle plate via hot rolled: T3 - 1000 mm X W10 - 1000 mm X L1000-12000 mm

Sheet steel via cold rolled: T3.0 - 10 mm X W5 - 1000 mm X L100 - 1000 mm

Steel strip via cold rolled: T5.0 - 10 mm X W5 - 1000 mm X L (or in coil form)

Length: Fixed length or random length or based on the customer's special requirement.

Chemical Composition and standard

​X38CrMo 16/1.2316
DIN 17350-1980


C(％): 0.33~0.45
Si(％): ≤1.0
Mn(％): ≤1.5
P(％)≤: 0.03
S(％)≤: 0.03
Cr(％): 15.5~17.5
Ni(％): ≤1.0

Mo(%): 0.8~1.3

1.2316 DIN X38CrMo 16 Stainless Steel Sheets Plates 1.2316 Hot Forged Parts

​X38CrMo 16/1.2316 Mechanical Properties

Dimension: d≤16

Tensile strength,Rm/MPa: ≥695

Yield strength,Rp/MPa: ≥116

Elongation/%: ≥33

Charpy Impact/J: ≥11

Applications

X38CrMo 16/1.2316 is used for precision stamping dies. Cold extrusion molding die. Cavitation molds, standard mold bases, SMC compression molds, blow molds, PET preform molds, plastic pipe and tube injection molds.
