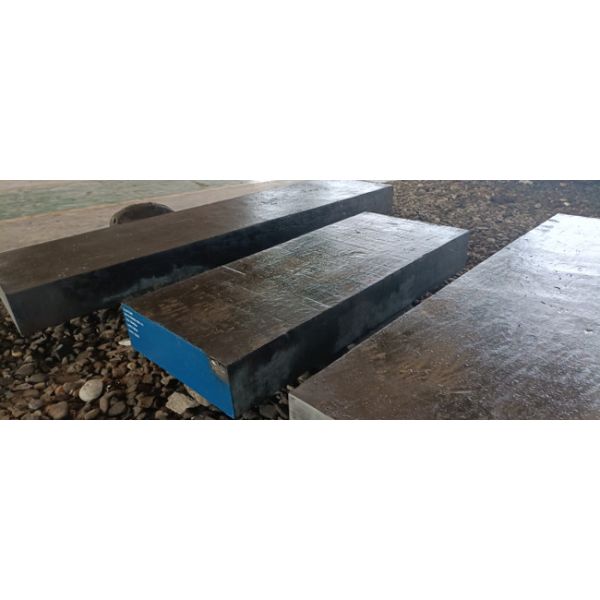

X38CrMoV 5-1 1.2343 Structural Steel Flat Bar UNS T20811 H11 Sheet Steel
X38CrMoV 5-1 1.2343 Structural Steel Flat Bar UNS T20811 H11 Sheet Steel
X38CrMoV 5-1 1.2343 Structural Steel Flat Bar UNS T20811 H11 Sheet Steel
X38CrMoV 5-1 1.2343 Structural Steel Flat Bar UNS T20811 H11 Sheet Steel
X38CrMoV 5-1 1.2343 Structural Steel Flat Bar UNS T20811 H11 Sheet Steel
X38CrMoV 5-1 1.2343 Structural Steel Flat Bar UNS T20811 H11 Sheet Steel
Specifications
Brand Name :
PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL
Model Number :
X38CrMoV 5-1, W-Nr 1.2343, AISI H11, UNS T20811, JIS SKD6
Certification :
SGS, TUV, BV, ISO, MTC
Place of Origin :
China
MOQ :
500kg
Price :
Negotiations
Payment Terms :
T/T
Supply Ability :
50000KGS/Month
Delivery Time :
Ex-stock for delivery: 3-7 days Production lead time: 30-60 days
Packaging Details :
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Product Name :
X38CrMoV 5-1 1.2343 Structural Steel Flat Bar
Characteristic :
Very high hardenability, tempering resistance, high temperature resistance
Heat treatment condition :
+P, +N, etc
Processing methods :
Ground, Hot Working, etc
Available Shapes :
Square bar, Strip steel, Wire, etc
Surface :
Peeled, Polished, etc
Description

X38CrMoV 5-1 1.2343 Structural Steel Flat Bar UNS T20811 H11 Sheet Steel

Product Information

1.2343 hot work tool steel is designated as a group H steel according to the AISI classification system. Air hardening is possible in sections up to 150mm thick. Due to the balanced alloy content, these steels undergo minimal deformation during hardening. Tools made of chromium hot work steels can be cooled with water without damage due to the low carbon and alloy content of these steels.

Size Range

Round bar / Wire rod (Diameter): 5.0 mm to 800 mm

Square bar / Flat bar: 3.0 mm to 500 mm

Forging piece: Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.

Heavy/middle plate via hot rolled: T5 - 1000 mm X W10 - 1000 mm X L1000-12000 mm

Sheet steel via cold rolled: T0.8 - 10 mm X W5 - 1000 mm X L300 - 1000 mm

Steel strip via cold rolled: T0.1 - 10 mm X W10 - 1000 mm X L (or in coil form)

Length: Fixed length or random length or based on the customer's special requirement.

Chemical Composition and standard

X38CrMoV 5-1/1.2343

 UNS T20811/AISI H11 JIS SKD6
DIN EN ISO 4957-2018 ASTM A681-2008(R2015) JIS G 4404-2015


C(％): 0.33~0.41
Si(％): 0.8~1.2
Mn(％): 0.25~0.5
P(％)≤: 0.03
S(％)≤: 0.02
Cr(％): 4.8~5.5
Ni(％): --

Mo(%): 1.1~1.5

V(%): 0.3~0.5

C(％): 0.33~0.43
Si(％): 0.8~1.25
Mn(％): 0.25~0.6
P(％)≤: 0.03
S(％)≤: 0.03
Cr(％): 4.75~5.5
Ni(％): --

Mo(%): 1.1~1.6

V(%): 0.3~0.6

Ni+Cu(%): ≤0.75

C(％): 0.32~0.42
Si(％): 0.8~1.2
Mn(％): ≤0.5
P(％)≤: 0.03
S(％)≤: 0.02
Cr(％): 4.5~5.5
Ni(％): --

Mo(%): 1.0~1.5

V(%): 0.3~0.5


X38CrMoV 5-1 1.2343 Structural Steel Flat Bar UNS T20811 H11 Sheet Steel

X38CrMoV 5-1/1.2343 Mechanical Properties

Hardness after annealed: ≤229

Hardness after +QT: HR ≥48

Applications

1.2343 hot work tool steel is widely used in the manufacture of hot punches, die casting dies, forging dies, hot shear blades, hot fixture dies and extrusion tools
