Specifications
Brand Name :
ANSTEEL,TISCO,BAOSTEEL,PANGANGGROUP
Model Number :
PH15-7Mo, AISI 632, UNS S15700
Certification :
SGS,TUV,BV,ISO,MTC
Place of Origin :
China
MOQ :
550kg or Negotiations
Price :
3000-8000 USD/Ton or Negotiations
Payment Terms :
T/T
Supply Ability :
90000KGS/Month
Delivery Time :
Ex-stock for delivery:3-7 days Production lead time: 35-60 days
Packaging Details :
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Product Name :

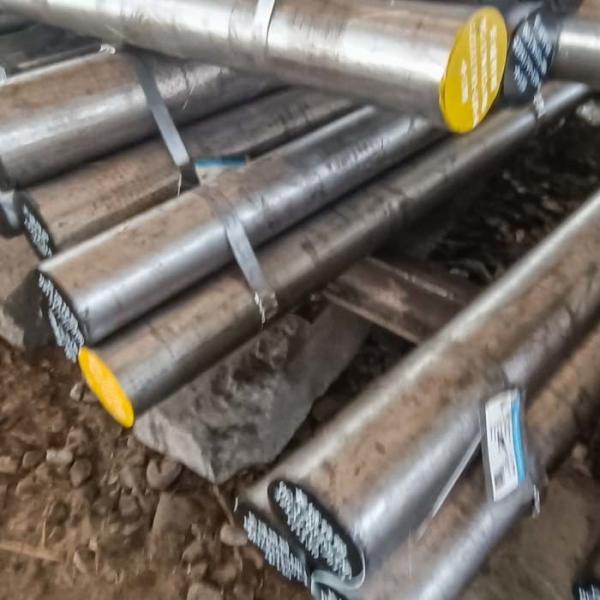

PH15-7Mo Stainless Steel Round Bar
Executive Technical Standard :
DIN EN,ASTM,UNS,ISO/TS etc.
Grades :
PH15-7Mo, AISI 632, UNS S15700
Processing methods :
Machined,Shot blasted,Cold working,Ground,Peeled,etc
Heat treatment condition :
Annealed,Quenched and tempered etc.
Surface :
Black,Bright,Rrough Turned,Grinding,Centreless Ground,etc
Profile :
Forging Parts,Forging Piece,Round Bar,Flat Bar,etc
Price Term :
Ex-work, FOB,CIF, CFR, DDU etc.
Description

PH15-7Mo Stainless Steel Round Bar AISI 632 UNS S15700 Composition

Description

PH15-7Mo Stainless Steel Round Bar is a semi-austenitic precipitation-hardening stainless steel that provides high strength and hardness, good corrosion resistance and minimum distortion upon heat treatment. PH15-7Mo Stainless Steel Round Bar is easily formed in the annealed condition and develops an effective balance of properties by simple heat treatments. For applications requiring exceptionally high strength, cold-reduced PH15-7Mo Stainless Steel Round Bar in Condition CH 900 is particularly useful for applications permitting only limited ductility and workability.

All of PH15-7Mo Stainless Steel Round Bar AISI 632 UNS S15700 conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.

  • Material:Metal,Stainless Steel Round Bar, PH15-7Mo Stainless Steel Round Bar
  • Shape:PH15-7Mo Stainless Steel Round Bar AISI 632 UNS S15700
  • Round bar / Wire rod (Diameter): 5.5mm to 800mm
  • Length: Fixed length or random length or based on the customer's special requirement.

Products Details

PH15-7Mo Stainless Steel Round Bar AISI 632 UNS S15700

Chemical Composition (weight%): Mechanical Properties Under Final Heat Treatment:
C (%): ≤ 0.09
Si (%): ≤ 1.00
Mn (%): ≤ 1.00
P (%) ≤: 0.040
S (%) ≤: 0.030
Cr (%): 14.0 ~ 16.0
Ni (%): 6.50 ~ 7.70
Mo (%): 2.00 ~ 3.00
Al (%): 0.75 ~ 1.50
Co (%): -
W (%): -
Condition: annealed
Tensile strength, σb/≥ MPa: 1035
Yield strength, σ0.2/≥ MPa: 450
Elonghation, δ ≥(%): 25.0
Reduction of area, ф ≥ (%): -
Hardness | HB: -

Annealed PH15-7Mo Stainless Steel Round Bar AISI 632 UNS S15700 Composition

Applications:

PH15-7Mo Stainless Steel Round Bar used most often in the Manufacturing aerospace thin-walled structural parts and various containers;Pipe, spring, diaphragm;Ship shaft, compressor disk;Reactor components;Structural parts such as various chemical equipment; etc.

Annealed PH15-7Mo Stainless Steel Round Bar AISI 632 UNS S15700 CompositionAnnealed PH15-7Mo Stainless Steel Round Bar AISI 632 UNS S15700 Composition

PH15-7Mo Stainless Steel Round Bar AISI 632 UNS S15700 Composition

FAQ

Q: How do you control the quality?

A: We have professional inspectors to analyze the chemical composition of raw materials and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.


Q: Do you accept customization?


A: Yes. If you have special requirements for products or packaging, we can make them for you.


Q: Can you accept trial orders?


A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.


Q: How do I get samples?


A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.

Annealed PH15-7Mo Stainless Steel Round Bar AISI 632 UNS S15700 Composition
