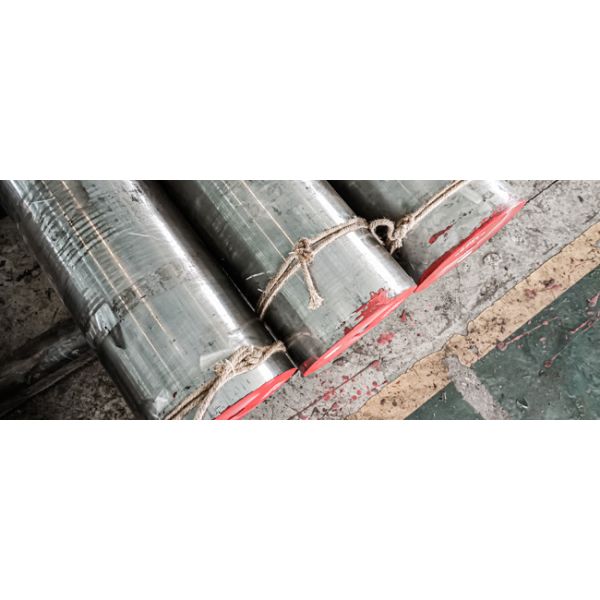

17-4PH Stainless Steel Round Bar
17-4PH Stainless Steel Round Bar
17-4PH Stainless Steel Round Bar
17-4PH Stainless Steel Round Bar
17-4PH Stainless Steel Round Bar
17-4PH Stainless Steel Round Bar
Specifications
Brand Name :
ANSTEEL,TISCO,BAOSTEEL,PANGANGGROUP
Model Number :
17-4PH,AMS 5622,AMS 5643,UNS S17400,AISI 630,DIN 1.4542,X5CrNiCuNb16-4,10705GU-GV,TLV 9239 01,Z6CNU17-04
Certification :
SGS,TUV,BV,ISO,MTC
Place of Origin :
China
MOQ :
200kg or Negotiations
Price :
2800-3800 USD/Ton or Negotiations
Payment Terms :
T/T
Supply Ability :
500000KGS/Month
Delivery Time :
Ex-stock for delivery: 1-5 days Production lead time: 35-45 days
Packaging Details :
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Product Name :
17-4PH Stainless Steel Round Bar
Executive Technical Standard :
ASTM,AISI,AMS,UNS,DIN etc.
Grades :
17-4PH,AMS 5622,AMS 5643,UNS S17400,AISI 630,DIN 1.4542,X5CrNiCuNb16-4,10705GU-GV,TLV 9239 01,Z6CNU17-04
Processing methods :
Cold working etc.
Heat treatment condition :
Annealed,Solution treated,Quenched and tempered etc.
Surface :
Black,Bright etc.
Profile :
Round Bar,Flat Bar,Forging Parts etc.
Price Term :
Ex-work, FOB, CIF etc.
Description

17-4PH Stainless Steel Round Bar​ 630 S40500 Round Flat Bar 1.4542 X5CrNiCuNb16-4 AMS 5622


Description


Our company provides 17-4PH Stainless Steel Round Bar AMS5622 5643 Round Bar AISI 630 S40500 Flat Bar 1.4542 X5CrNiCuNb16-4 Bar ASTM A959-2004.
All of 17-4PH Turbine Blade Steel AMS5622 5643 Round Bar AISI 630 S40500 Flat Bar 1.4542 X5CrNiCuNb16-4 Bar ASTM A959-2004 conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.

  • Material:Metal,Stainless Steel Round Bar,17-4PH,AMS 5622/5643,UNS S17400,AISI 630,DIN 1.4542,X5CrNiCuNb16-4,10705GU-GV,TLV 9239 01,Z6CNU17-04.
  • Shape:Stainless Steel Round Bar.
  • Round bar / Wire rod (Diameter): 5.5mm to 800mm
  • Square bar / Flat bar: 3mm to 800mm
  • Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
  • Heavy/middle plate via hot rolled: T6 - 200mm X W10 - 1500mm X L1000-12000mm
  • Sheet steel via cold rolled: T0.5 - 6mm X W6 - 1000mm X L1000 - 2000mm
  • Steel strip via cold rolled: T0.1 - 3mm X W5 - 200mm X L (or in coil form)
  • Length: Fixed length or random length or based on the customer's special requirement.



Products Details


17-4PH Stainless Steel Round Bar AMS5622 5643 Round Bar AISI 630 S40500 Flat Bar 1.4542 X5CrNiCuNb16-4 Bar
Those materials are widely used in manufacturing the high strength, anti-corrosive forge piece for planes, gas turbine and other machined parts.
The alloy is usually produced by EAF AOD / VOD followed by electroslag refining (ESR) / VAR if necessary for special purpose.

Chemical Composition (weight%): Mechanical Properties Under Final Heat Treatment:
C (％): ≤ 0.07
Si (％): ≤ 1.00
Mn (％): ≤ 1.50
P (％)≤: 0.030
S (％)≤: 0.015
Cr (％): 15.0 ~ 16.0
Ni (％): 3.00 ~ 5.00
Mo (％): ≤ 0.60
Nb (％): 0.15 ~ 0.35
Cu (%): 3.00 ~ 5.00		 Thickness/≤mm: 100
Condition of thermal treatment: +AT (Solution treatment)
Hardness ≤HBS: 360
Yield strength σ0.2≥/MPa: -
Tensile strength σb/MPa: ≤1200
Elongation δ ≥(％): -
Elongation δ(transversal )≥(％): -
Impact absorbing power Akv≥/J : -
Condition of thermal treatment: +P930
Hardness ≤HBS: -
Yield strength σ0.2≥/MPa: 720
Tensile strength σb/MPa: 930~1100
Elongation δ ≥(％): -16
Impact absorbing power Akv≥/J : 40
Condition of thermal treatment: +P960
Hardness ≤HBS: -
Yield strength σ0.2≥/MPa: 790
Tensile strength σb/MPa: 960~1160
Elongation δ ≥(％): 12
Impact absorbing power Akv≥/J : -


17-4PH Stainless Steel Round Bar

Applications:

Chemical equipment
Mechanical parts used in the condition of corrosion resistance
Bolt and nut
Pressure vessel

Technical Standard Equivalent Grade
ISO/TS 15510(2003) X5CrNiCuNb16-4
JIS G4303(2005) SUS 630
KS D3706(2006) STS 630
DIN EN 10088-2(2005) X5CrNiCuNb16-4/1.4542
NF EN 10088-2(2005) X5CrNiCuNb16-4
NF A35-581(1984) Z6CNU17.04
ASTM A959(2004) 630/S17400


17-4PH Stainless Steel Round Bar

17-4PH Stainless Steel Round Bar
17-4PH Stainless Steel Round Bar AMS5622 5643 Round Bar AISI 630 S40500 Flat Bar 1.4542 X5CrNiCuNb16-4 Bar


FAQ


Q: How do you control the quality?

A: We have professional inspectors to analyze the chemical composition of 17-4PH Stainless Steel Round Bar 630 S40500 Round Flat Bar 1.4542 X5CrNiCuNb16-4 AMS 5622 and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging, we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.

17-4PH Stainless Steel Round Bar
