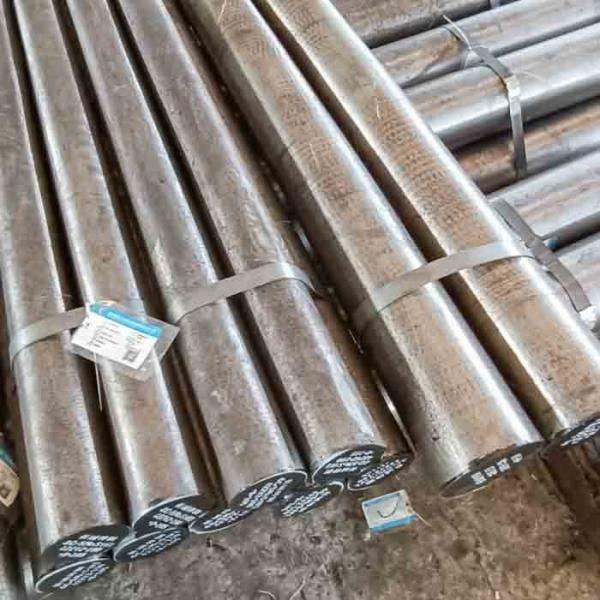

High Strength Structural Alloy Steel Round Bar DIN 18CrMo4 1.7243
High Strength Structural Alloy Steel Round Bar DIN 18CrMo4 1.7243
High Strength Structural Alloy Steel Round Bar DIN 18CrMo4 1.7243
High Strength Structural Alloy Steel Round Bar DIN 18CrMo4 1.7243
Specifications
Brand Name :
ANSTEEL,TISCO,BAOSTEEL,PANGANGGROUP
Model Number :
18CrMo4,1.7243
Certification :
SGS,TUV,BV,ISO,MTC
Place of Origin :
China
MOQ :
Negotiations
Price :
Negotiations
Payment Terms :
T/T
Supply Ability :
200000KGS/Month
Delivery Time :
Ex-stock for delivery: 3-7 days Production lead time: 30-45 days
Packaging Details :
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Product Name :
DIN 18CrMo4 1.7243 Structural Steel Round Bar
Grades :
DIN 18CrMo4,1.7243
Processing methods :
Shot blasted,Ground,Peeled,Cold working,Machined,etc
Surface :
Black,Bright,Rrough Turned,Grinding,Centreless Ground,etc
Profile :
Round Bar
Price Term :
Ex-work, FOB, CIF, CFR, DDU
Description

DIN 18CrMo4 1.7243 Structural Steel Round Bar DIN 18CrMo4 Round Bar 1.7243 Bar

Description

Our company provides DIN 18CrMo4 1.7243 Structural Steel Round Bar Hot rolled wire rods / Hot rolled round bars DIN 18CrMo4 Shot blasted/Ground/Peeled Round Bar 1.7243 Bar.

All of DIN 18CrMo4 1.7243 Structural Steel Round Bar Hot rolled wire rods / Hot rolled round bars DIN 18CrMo4 Shot blasted/Ground/Peeled Round Bar 1.7243 Bar conform to Military standard, nuclear power. 100% Ultrasonic test.

  • Material:Metal,DIN 18CrMo4 1.7243 Structural Steel Round Bar DIN 18CrMo4 Round Bar 1.7243 Bar.
  • Metal Type:structural steel series.
  • Round bar / Wire rod (Diameter):5.5mm-800mm;DIN 18CrMo4 1.7243 Structural Steel Round Bar DIN 18CrMo4 Round Bar 1.7243 BarLength: Fixed length or random length or based on the customer's special requirement.

Products Details

DIN 18CrMo4 1.7243 Structural Steel Round Bar Hot rolled wire rods / Hot rolled round bars DIN 18CrMo4 Shot blasted/Ground/Peeled Round Bar 1.7243 Bar.

Chemical Composition (weight%): C (％): 0.15 ~ 0.21
Si (％): ≤ 0.40
Mn (％): 0.60 ~ 0.90
P (％)≤: 0.035
S (％)≤: 0.035
Cr (％): 0.90 ~ 1.20
Mo (％): 0.15 ~ 0.25
Mo (％): -
Mechanical Properties Under
Final Heat Treatment:
 Hot working temperature /℃: 1050～850
Heat treatment temperature /℃|annealing: 680～700
Heat treatment temperature /℃|carburizing: 880～980
Heat treatment temperature /℃|quenching (Center): 860～900
Heat treatment temperature /℃|quenching (Surface): 780~820 Oil
Heat treatment temperature /℃|tempering: 150～200
Hardness after annealing HBS≤: 207

High Strength Structural Alloy Steel Round Bar DIN 18CrMo4 1.7243

Equivalent Grade:

DIN 18CrMo4 DIN EN 10084(1999)

1.7243

High Strength Structural Alloy Steel Round Bar DIN 18CrMo4 1.7243High Strength Structural Alloy Steel Round Bar DIN 18CrMo4 1.7243

FAQ

Q: How do you control the quality?

A: We have professional inspectors to analyze the chemical composition of DIN 18CrMo4 1.7243 Structural Steel Round Bar DIN 18CrMo4 Round Bar 1.7243 Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.


Q: Do you accept customization?


A: Yes. If you have special requirements for products or packaging, we can make them for you.


Q: Can you accept trial orders?


A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.


Q: How do I get samples?


A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.

High Strength Structural Alloy Steel Round Bar DIN 18CrMo4 1.7243
