Specifications
Brand Name :
PANGANGGROUP,ANSTEEL,TISCO,BAOSTEEL
Model Number :
DIN 39CrNiMo3,1.6510
Certification :
SGS,TUV,BV,ISO,MTC
Place of Origin :
China
MOQ :
Negotiations
Price :
Negotiations
Payment Terms :
T/T
Supply Ability :
180000KGS/Month
Delivery Time :
Ex-stock for delivery: 3-5 days Production lead time: 25-40 days
Packaging Details :
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Product Name :
DIN 39CrNiMo3 1.6510 Structural Steel Flat Bar
Grades :
DIN 39CrNiMo3,1.6510
Processing methods :
Shot blasted,Ground,Cold working,Machined
Surface :
Black,Bright,Rrough Turned
Profile :
Flat Bar
Price Term :
Ex-work, FOB, CIF
Description

DIN 39CrNiMo3 1.6510 Structural Steel Flat Bar DIN 39CrNiMo3 Flat Bar 1.6510 Bar

Description

Our company provides DIN 39CrNiMo3 1.6510 Structural Steel Flat Bar DIN 39CrNiMo3 Flat Bar 1.6510 Bar.All of DIN 39CrNiMo3 1.6510 Structural Steel Flat Bar DIN 39CrNiMo3 Flat Bar 1.6510 Bar conform to Military standard, nuclear power. 100% Ultrasonic test.

  • Material:Metal,DIN 39CrNiMo3 1.6510 Structural Steel Flat Bar DIN 39CrNiMo3 Flat Bar 1.6510 Bar
  • Square bar / Flat bar: 3mm to 800mm

Products Details

DIN 39CrNiMo3 1.6510 Structural Steel Flat Bar DIN 39CrNiMo3 Flat Bar 1.6510 Bar.

Chemical Composition (weight%): C (%): 0.35 ~ 0.43
Si (%): ≤ 0.40
Mn (%): 0.50 ~ 0.80
P (%)≤: 0.025
S (%)≤: 0.015
Cr (%): 0.60 ~ 1.00
Ni (%): 0.70 ~ 1.00
Mo (%): 0.15 ~ 0.25
Mechanical Properties Under
Final Heat Treatment:

Condition: +C + QT
Tensile strength / σb/MPa|≥: 880 ~ 1080
Yield strength / σs/MPa|≥: 735
Elongation / 5(%)|≥: 12.0
Delivery hardness /HBS|≥: -

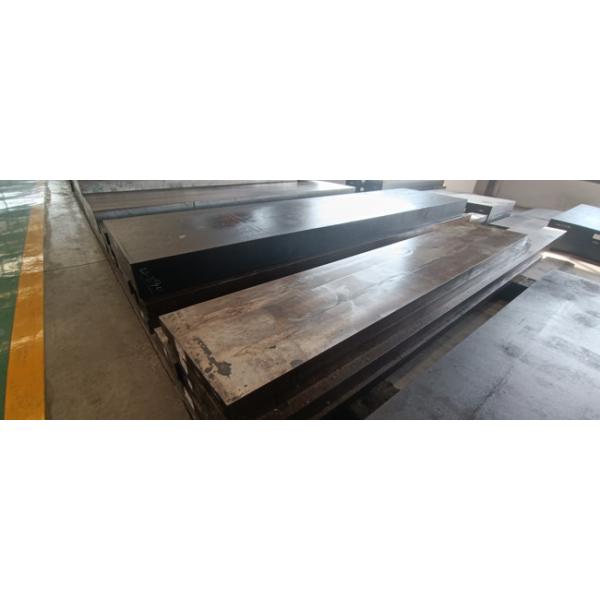

TUV Certified Structural Steel Flat Bar DIN 39CrNiMo3 1.6510

DIN 39CrNiMo3 1.6510 Structural Steel Flat Bar DIN 39CrNiMo3 Flat Bar 1.6510 Bar may be furnished in one of the following conditions: stress relieving; annealing; solution treatment; solution treatment and ageing; normalizing; normalizing and tempering; or quenching and tempering.

Equivalent Grade:

DIN 39CrNiMo3 DIN EN 10083(2006)

1.6510

TUV Certified Structural Steel Flat Bar DIN 39CrNiMo3 1.6510TUV Certified Structural Steel Flat Bar DIN 39CrNiMo3 1.6510

FAQ

Q: How do you control the quality?

A: We have professional inspectors to analyze the chemical composition of DIN 39CrNiMo3 1.6510 Structural Steel Flat Bar DIN 39CrNiMo3 Flat Bar 1.6510 Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.


Q: Do you accept customization?


A: Yes. If you have special requirements for products or packaging, we can make them for you.


Q: Can you accept trial orders?


A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.


Q: How do I get samples?


A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.
