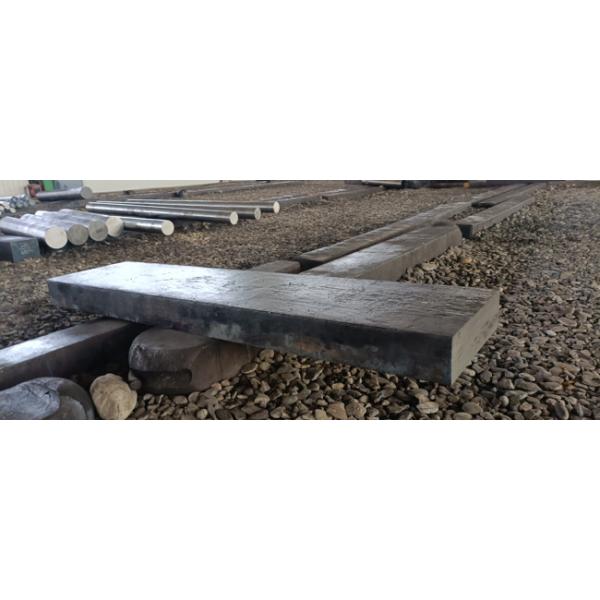

1.4418 DIN X4CrNiMo16-5-1 Stainless Steel Flat Bar Z8CND17-04 SS S165M Plate
1.4418 DIN X4CrNiMo16-5-1 Stainless Steel Flat Bar Z8CND17-04 SS S165M Plate
1.4418 DIN X4CrNiMo16-5-1 Stainless Steel Flat Bar Z8CND17-04 SS S165M Plate
1.4418 DIN X4CrNiMo16-5-1 Stainless Steel Flat Bar Z8CND17-04 SS S165M Plate
1.4418 DIN X4CrNiMo16-5-1 Stainless Steel Flat Bar Z8CND17-04 SS S165M Plate
1.4418 DIN X4CrNiMo16-5-1 Stainless Steel Flat Bar Z8CND17-04 SS S165M Plate
Specifications
Brand Name :
PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL
Model Number :
W-Nr 1.4418, Z8CND17-04, DIN X4CrNiMo16-5-1, SS S165M
Certification :
SGS, TUV, BV, ISO, MTC
Place of Origin :
China
MOQ :
1200kg
Price :
Negotiations
Payment Terms :
T/T
Supply Ability :
45000KGS/Month
Delivery Time :
Ex-stock for delivery: 3-7 days Production lead time: 30-60 days
Packaging Details :
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Characteristic :
Heat and Corrosion Resistant
Heat treatment condition :
+A, +QT, etc
Processing methods :
Ground, Peeled, etc
Available Shapes :
Sheet, Coil, Square bar, etc
Surface :
Polished, Black, etc
Material Category :
Martensitic Stainless Steel
Description

1.4418 DIN X4CrNiMo16-5-1 Stainless Steel Flat Bar Z8CND17-04 SS S165M Plate

Size Range

Round bar / Wire rod (Diameter):

3.0 mm to 500 mm

Square bar / Flat bar:

3.5 mm to 500 mm

Forging piece:

Stepped shafts with flanks/discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.

Heavy/middle plate via hot rolled:

T4.5 - 100 mm X W5 - 1000 mm X L1000-10000 mm

Sheet steel via cold rolled:

T0.5 - 10.0 mm X W5 - 1000 mm X L1000 - 10000 mm

Steel strip via cold rolled:

T0.5 - 5.0 mm X W5 - 1000 mm X L (or in coil form)

Length:

Fixed length or random length or based on the customer's special requirement.


Chemical Composition and standard

X4CrNiMo16-5-1/1.4418

 Z8CND17-04 SS S165M
DIN EN 10088-3-2014 -- --

C(％): ≤0.06
Si(％): ≤0.70
Mn(％): ≤1.50
P(％)≤: 0.04
S(％)≤: 0.03
Cr(％): 15.0~17.0
Ni(％): 4.0~6.0
Mo(％): 0.80~1.50

N(%): ≥0.02

C(％): ≤0.05
Si(％): --
Mn(％): ≤0.75
P(％)≤: --
S(％)≤: --
Cr(％): ≤16.0
Ni(％): ≤5.0
Mo(％): ≤1.0

N(%): ≤0.03

 C(％): ≤0.05
Si(％): ≤1.00
Mn(％): ≤1.50
P(％)≤: 0.04
S(％)≤: 0.03
Cr(％): 15.0~17.0
Ni(％): 4.0~6.0
Mo(％): 0.80~1.50

1.4418 DIN X4CrNiMo16-5-1 Stainless Steel Flat Bar Z8CND17-04 SS S165M Plate

Mechanical Properties


X4CrNiMo16-5-1/1.4418 Stainless Steel Flat Bar Mechanical Properties

+QT 760

Tensile strength,Rm/MPa:760~960

Yield strength,Rp/MPa: ≥550

Elongation/%: ≥16

Impact, KV /J: ≥70

+QT 840

Tensile strength,Rm/MPa:840~1100

Yield strength,Rp/MPa: ≥660

Elongation/%: ≥14

Impact, KV /J: ≥55

+QT 900

Tensile strength,Rm/MPa:900~1150

Yield strength,Rp/MPa: ≥700

Elongation/%: ≥10

Impact, KV /J: ≥60

Application

  • bolts and nuts
  • Pistons
  • Valves
  • Turbine Components
  • Crankshafts
  • Agitators
