Monel400 Inconel600 Stainless Steel Pipe Fittings
Monel400 Inconel600 Stainless Steel Pipe Fittings
Monel400 Inconel600 Stainless Steel Pipe Fittings
Monel400 Inconel600 Stainless Steel Pipe Fittings
Monel400 Inconel600 Stainless Steel Pipe Fittings
Monel400 Inconel600 Stainless Steel Pipe Fittings
Monel400 Inconel600 Stainless Steel Pipe Fittings
Monel400 Inconel600 Stainless Steel Pipe Fittings
Specifications
Brand Name :
ZHEHENG
Model Number :
1/2"-24"
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1
Price :
1.2USD/PCS--15000/PCS
Payment Terms :
L/C, T/T
Supply Ability :
ACCORDING TO CUSTOMER'S REQUEST
Delivery Time :
15-30days
Packaging Details :
Standard export seaworthy package or as required.
Name :
pipe elbows
techincs :
seamless
Thickness :
SCH10-SCH160, STD, XS, XXS
Material :
Monel400 Inconel600/625
products :
Nickel alloy stainless steel pipe fittings
connection :
Butt-Welding
package :
plywood box or pallet
Application :
Pharmacy,beer,food,dairy,brewing, beverage, water treatment,chemical
Description

Monel400 Inconel600/625 Nickel Alloy Stainless Steel Pipe Fittings Elbow Tee Reducer
Various manufacturers have different descriptions of 400 alloys: Monel400 for American SMC, ATI400 for American ATI, VDM 400 for German VDM, and NAS NW400 for Japanese metallurgy.
Production Range:

Size : 1/2"-24" seamless, 26"-60" welded
Standard : ANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.
Wall thickness :SCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40,
SCH60, SCH80, SCH160, XXS and etc.
Elbow : 30° 45° 60° 90° 180°,etc
Radius ; LR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D,
10D,20D etc.
End : Bevel end/BE/buttweld
Surface : Pickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished,shinning .

WHAT IS ALLOY UNS N04400 ?
Alloy400, UNS N04400 alloy, German standard W.Nr.2.4360, a typical nickel-copper alloy, a pioneering work of nickel-based alloys, is a corrosion-resistant alloy with large amount, wide application and excellent comprehensive performance. This alloy has excellent corrosion resistance in hydrofluoric acid and fluorine gas media, as well as hot concentrated alkali. It is also resistant to corrosion by neutral solutions, water, seawater, atmosphere, organic compounds, etc. An important feature of this alloy is that it generally does not produce stress corrosion cracking and has good cutting performance.
Executive Standard
The implementation standard of UNS N04400 alloy morphology:
1. Flat coiled material: ASTM B127 and ASME SB127;
2. Bars: ASTM B164 and ASME SB164;
3. Welded pipes: ASTM B751 and ASME SB751;
4. Tubing: ASTM B165 and ASME SB165;
5. Heat exchange tubes: ASTM B163 and ASME SB163;
6. Nickel alloy forgings: ASTM B564 and ASME SB564
Inspection and Test Procedure

1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.

RFQ:
1. Are you a trading company or a manufacturer?
Manufacturer and trading.
2. What are your main products?
All kinds of elbows, tees, caps, flanges, and steel pipes, etc with different stainless steel,nickel alloy materials.
3. Do you provide free samples?
We'd like to provide samples for your confirm, but we don't pay the cost of freight.
4. Why should I choose you?
* Contact us with your detailed inquiry, you will be replied within 6 hours.
* You are promised to obtain the best quality, price, and service.
* Wide excellent experiences with after-sale service.
* Every process will be checked by responsible QC which ensures every product's quality.

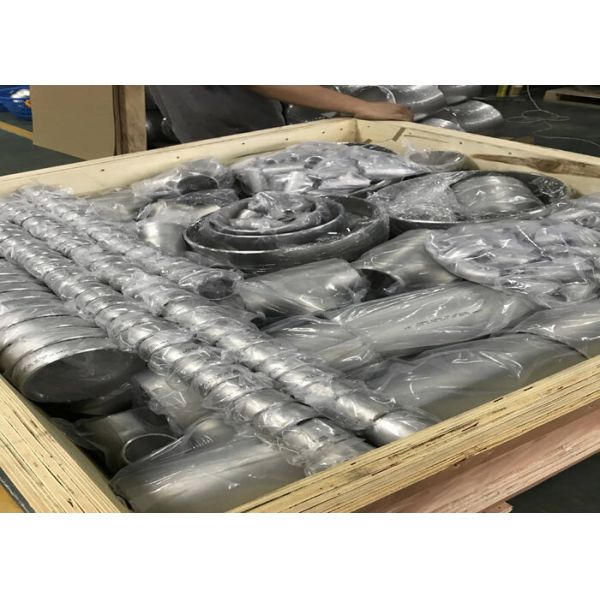

Product show:
Monel400 Inconel600 Stainless Steel Pipe Fittings
