Specifications
Brand Name :
ZHEHENG
Model Number :
8" SCH40s
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1
Price :
1.2USD/PCS--15000/PCS
Payment Terms :
L/C, T/T
Supply Ability :
ACCORDING TO CUSTOMER'S REQUEST
Delivery Time :
5-8days
Packaging Details :
Standard export seaworthy package or as required.
Material :
WP304
Standard :
ASME B16.9
outside diameter :
8inch
Thickness :
Sch40s
Surface :
Rolling sand
Application :
Chemical engineering
Package :
plywood box
Test :
Ultrasonic experiment
Description

ASTM A403 ASME B16.9 WP304/304L Stainless Steel Pipe Fittings Seamless Elbow

"zheheng steel" produces and supply stainless steel 45 ° / 90 ° / 180 ° elbows, equal tees, reducer tees, crosses, concentric reducers, eccentric reducers, caps, flanges, flanges, etc., Non-standard pipe fittings are also produced according to customer requirements. The company strictly implements ASTM B16.9 / B16.5,ASTM A403 SH3408, SH3409, DIN2605, EN10253, BS1965, JISB2312 and other standards for production. The materials used are special steel materials such as 304H, 304L, 321H, 316L, 317L, 310S and duplex steel 2205/31803, 904L, WP347H, WP316Ti.

WALL THCKNESS FOR STAINLESS STEEL PIPE &TUBE (ASME B36.10 & B36.19)
DNmm DNin φmm SCH5S SCH10S SCH40S STD Sch40 Sch60 Sch80s XS Sch80 Sch120 Sch140 Sch160 XXS
6 1/8 10.3 1.24 1.73 1.73 1.73 2.41 2.41 2.41
8 1/4 13.7 1.65 2.24 2.24 2.24 3.02 3.02 3.02
10 3/8 17.1 1.65 2.31 2.31 2.31 3.2 3.2 3.2
15 1/2 21.3 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.7 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.4 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.2 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.7
40 1 1/2 48.3 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.3 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 76 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3 88.9 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.6 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08
100 4 114.3 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 11.13 13.49 17.12
125 5 141.3 2.77 3.4 6.55 6.55 6.55 9.53 9.53 9.53 12.7 15.88 19.05
150 6 168.3 2.77 3.4 7.11 7.11 7.11 10.97 10.97 10.97 14.27 18.26 21.95
200 8 219.1 2.77 3.76 8.18 8.18 8.18 10.31 12.7 12.7 12.7 18.26 20.62 23.01 22.23
250 10 273 3.4 4.19 9.27 9.27 9.27 12.7 12.7 12.7 15.09 21.44 25.4 28.58 25.4
300 12 323.8 3.96 4.57 9.53 9.53 10.31 14.27 12.7 12.7 17.48 25.4 28.58 33.32 25.4
350 14 355.6 3.96 4.78 9.53 11.13 15.09 12.7 19.05 27.79 31.75 35.71
400 16 406.4 4.19 4.78 9.53 12.7 16.66 12.7 21.44 30.96 36.53 40.49
450 18 457 4.19 4.78 9.53 14.27 19.05 12.7 23.83 34.93 39.67 45.24
500 20 508 4.78 5.54 9.53 15.09 20.62 12.7 26.19 38.1 44.45 50.01
550 22 559 4.78 5.54 9.53 22.23 12.7 28.58 41.28 47.63 53.98
600 24 610 5.54 6.35 9.53 17.48 24.61 12.7 30.96 46.02 52.37 59.54
650 26 660 9.53 12.7
700 28 711 9.53 12.7
750 30 762 6.35 7.92 9.53 12.7

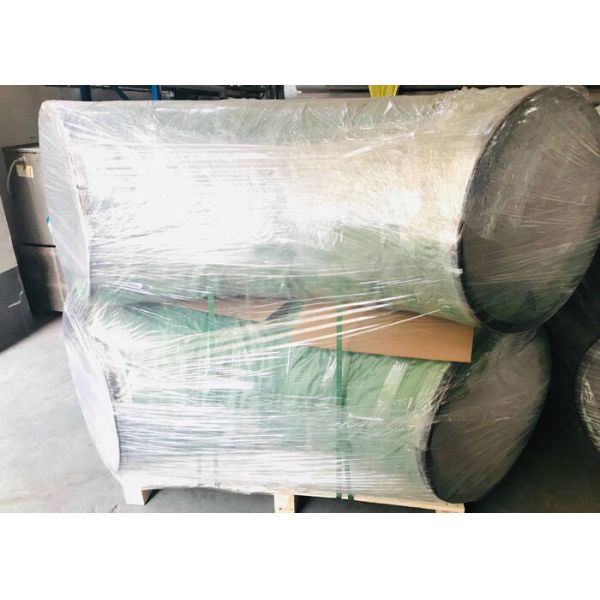

Product show:
