Specifications
Brand Name :
zheheng steel
Model Number :
1/2"-20"
Certification :
PED .TUV. ISO
Place of Origin :
china
MOQ :
10
Price :
2.6 USD/PCS--34058/PCS
Payment Terms :
L/C, T/T
Supply Ability :
ACCORDING TO CUSTOMER'S REQUEST
Delivery Time :
15-30days
Packaging Details :
Standard export seaworthy package or as required.
Outside diameter :
1/2"-20"
thickness :
sch40s，SCH80S ,SCH160
material :
stainless steel
other name :
stainless steel pipe fittings
Name :
tee
technology :
seamless or welded
type :
equal and reducing
steel grade :
1.4462 F60 UNS S32205
connection :
butt welding
Description

DIN Nr. 1.4462 F60 UNS S32205 Duplex Stainless Steel Pipe Tee Pipe Fittings

"Zheheng steel" specializes in producing stainless steel elbow, equal tee, reducing tee, reducing pipe (eccentric, concentric), flanging, pipe cap, flange.This product strictly follows ASTM A790 ASME B16.9, DIN, JIS and other standards.The materials used are 1.4462 F60 UNS S32205 and other stainless steel materials.

Features: 2205 is a duplex stainless steel with nearly equal proportions of austenite and ferrite when properly heat treated. This microstructure makes it much more resistant to stress corrosion cracking than stainless steel 304 and 316L. 2205’s higher chromium, molybdenum and nitrogen contents give it significantly improved pitting and crevice corrosion resistance in the presence of chlorides. Its yield strength is about twice that of austenitic stainless steels. It is highly suitable for Applications in environments containing chlorides and hydrogen sulfide such as marine applications and oil and gas production.

Applications: Oil and gas industry piping, tubing and heat exchangers; pulp and paper industry bleaching equipment, liquor tanks and digesters; cargo tanks for ships and trucks; chemical processing industry pressure vessels, tanks, piping and heat exchangers; and food processing equipment.

Product range:

Standard Material ASTM A234, ASTM A420, ASTM A860, ASTM A403, etc
Dimension ASME B16.9, etc
Duplex Stainless Steel Nr. 1.4462 F60 UNS S32205
Minimum Order Quantity 10 Pieces
Tee Type Equal Tee, Reducing Tee
Outside Diameter 1/2” – 24” (SMLS/SEAMLESS)
26” – 100” (WELD)
Wall Thickness Butt Welded : SCH10-SCH160, STD, XS, XXS
Processing technic BW TYPE
SMLS = Seamless (Size 1/2” – 24”)
Welded = Seam Welded with 100% X – Ray Test

Dimensions of Straight Tees and Crosses

1.4462 Duplex Steel Pipe Fittings1.4462 Duplex Steel Pipe Fittings

Nominal Pipe Size (NPS) Outside Diameter at Bevel Center-to-End
Run, C Outlet,
M
[Notes ⑴ and ⑵]
1/2” 21.3 25 25
3/4” 26.7 29 29
1 33.4 38 38
1-1/4” 42.2 48 48
1-1/2” 48.3 57 57
2 60.3 64 64
2-1/2” 73 76 76
3 88.9 86 86
3-1/2” 101.6 95 95
4 114.3 105 105
5 141.3 124 124
6 168.3 143 143
8 219.1 178 178
10 273 216 216
12 323.8 254 254
14 355.6 279 279
16 406.4 305 305
18 457 343 343
20 508 381 381

GENERAL NOTE: All dimensions are in millimeters.
NOTES:
(1)Outlet dimension M for NPS 26 and larger is recommended but not required.
(2)Dimensions applicable to crosses NPS 24 and smaller.

Chemical composition of duplex stainless steel pipe tee s32205

% Fe Cr Ni Mo C Mn Si P S N
min balance 22 4.5 3 0.14
max 23 6.5 3.5 0.03 2 1 0.03 0.02 0.2

Physical properties of duplex stainless steel pipe tee s32205

Density 7.69 g/cm3
Melting range 1385-1443℃

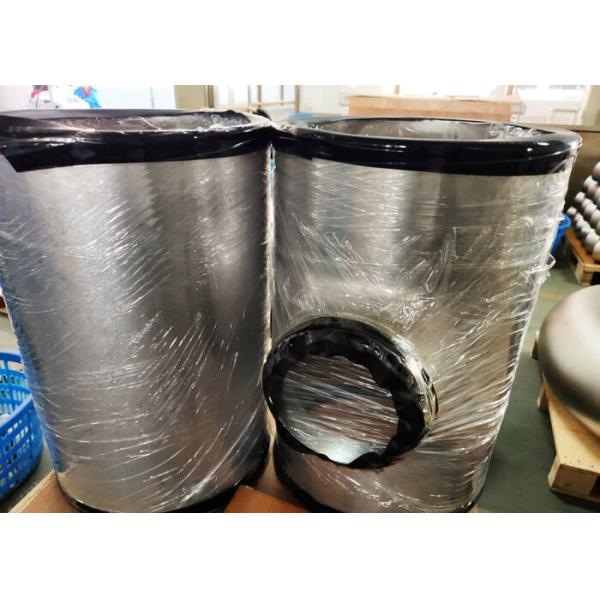

Products show:

1.4462 Duplex Steel Pipe Fittings
