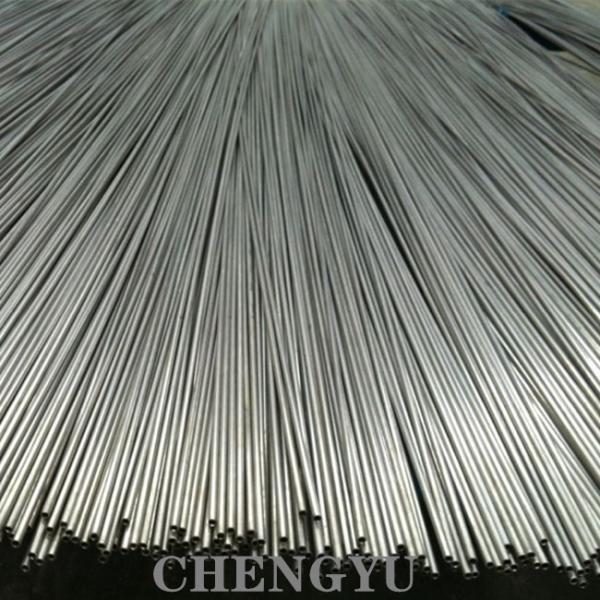

Cold Rolled TP316L Stainless Steel Bright Annealed Tube 8mm Annealing 304 Stainless Steel
Cold Rolled TP316L Stainless Steel Bright Annealed Tube 8mm Annealing 304 Stainless Steel
Cold Rolled TP316L Stainless Steel Bright Annealed Tube 8mm Annealing 304 Stainless Steel
Cold Rolled TP316L Stainless Steel Bright Annealed Tube 8mm Annealing 304 Stainless Steel
Specifications
Brand Name :
CHENGYU
Model Number :
8mm
Certification :
ISO
Place of Origin :
CHINA
MOQ :
50KG
Price :
5.0-9.0 USD/KG
Payment Terms :
Western Union, L/C, T/T
Delivery Time :
according to cusomer's quantity
Packaging Details :
woven bags package,plywood case package
Material :
TP304 TP316L TP321 TP310S TP347H
Shape :
round
High Light :
Stainless Steel Bright Annealed Tube
Type :
Seamless/Welded
Surface Finish :
Brush polish,Hairline,160grit,Mirror,Bright,Etc
Technique :
Cold rolling Cold drawing
Description

Overview

Quick Details

Standard:JIS,AISI,ASTM,GB,DIN,EN,GOST

Type:Seamless Stainless Steel Bright Annealed Tube

Grade:201/304/304L/304LN/304H/316Ti/316L/316H/321/321H/904L/310S/347 etc

Size:OD2mm-101.6mm WT0.5mm-8.0mm

Application:Petroleum,Chemical Engineering,Fluid machinery,Irrigation Works,Electric Power,Environmental,Etc

Surface Finish:Brush polish,Hairline,160grit,Mirror,Bright,Etc

Technique:Cold rolling Cold drawing

Test:Hardness Test,Hydrostatic Test,Ultrasonic Test,Eddy Current Test,Dimensional Checking,Chemical Analysis Etc

Inspection:100%

Price Term:FOB,CFR,CIF or as negotiation

Advantage:

1. Small roundness error of pipe diameter

2. Accurate wall thickness and length size;

3, the surface smoothness, cleanliness is guaranteed;

4, pressure resistance, corrosion resistance, wear resistance;

5, high strength, good flexibility.

Name ASTM A312 TP316 304 BA Seamless Stainless Steel Bright Annealed tubes Polished
Items round tubes
Standard ASTM ,GB,DIN AISI
Material Grade 304: Ni 8%, Cr 18%
304L: Ni 8%, Cr 18%
316L:Ni 10%, Cr 16%
Outer Diameter Round pipe 8MM-254MM
square 12.7x12.7--200X200mm
rectangular 20X40--150X200mm
Thickness 0.8mm - 3mm
Length 5.8m,6m, or as customers' request
Tolerance a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm
Surface 180Grit, 320Grit, 400Grit Satin / Hairline
400Grit, 500Grit, 600Grit Mirror finish
Application food grade,exhausting,water
Test Squash test, extended test, water pressure test,heat treatment, NDT
Chemical Composition of Material Material 304L 316L 304
C ≤0.035 ≤0.035 ≤0.08
Si ≤1.00 ≤1.00 ≤1.00
Mn ≤2.00 ≤2.00 ≤2.00
P ≤0.045 ≤0.045 ≤0.045
S ≤0.03 ≤0.03 ≤0.03
Cr 18-20 16-18 18-20
NI 8-12.0 10-14.0 8-10.5
Mechanical Property Material Item 304L 316L 304
Tensile Strength ≥515 ≥515 ≥515
Yield Strength ≥205 ≥205 ≥205
Extension ≥35% ≥35% ≥35%
Hardness (HV) N/M N/M N/M

ASTM Chemical Composition (%,max)
Grade C ≤ Si ≤ Mn ≤ P ≤ S ≤ Ni ≤ Cr ≤ Mo Others
304 0.08 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00
304H 0.04-0.1 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00
304L 0.035 0.75 2 0.04 0.03 8.00-13.00 18.00-20.00
304N 0.08 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00 N:0.1-0.16
304LN 0.035 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00 N:0.1-0.16
309 0.15 0.75 2 0.04 0.03 12.00-15.00 22.00-24.00
310 0.15 0.75 2 0.04 0.03 19.00-22.00 24.00-26.00
316 0.08 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00
316H 0.04-0.1 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00
316L 0.035 0.75 2 0.04 0.03 10.00-15.00 16.00-18.00 2.00-3.00
316N 0.08 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00 N:0.1-0.16
316LN 0.035 0.75 2 0.04 0.03 10.00-15.00 16.00-18.00 2.00-3.00 N:0.1-0.16
317 0.08 0.75 2 0.04 0.03 11.00-14.00 18.00-20.00 3.00-4.00
321 0.08 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Ti:5xC%-0.70B
321H 0.04-0.1 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Ti:4xC%-0.6
347 0.08 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Nb+Ta:10xC%-1.00
347H 0.04-0.1 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Nb+Ta:8xC%-1.00
329 0.089 0.75 2 0.04 0.03 2.50-5.00 23.00-28.00 1.00-2.00
316Ti 0.08 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00 Ti:5xC%-0.75
S31803 0.03 1.00 2 0.02 0.02 4.5-6.5 21.00-23.00 2.50-3.50 N:0.08-0.2
S32750 0.03 0.80 1.2 0.03 0.015 6.0-8.0 24.00-26.00 3.00-5.00 N:0.24-0.32

Cold Rolled TP316L Stainless Steel Bright Annealed Tube 8mm Annealing 304 Stainless Steel

Cold Rolled TP316L Stainless Steel Bright Annealed Tube 8mm Annealing 304 Stainless Steel

Cold Rolled TP316L Stainless Steel Bright Annealed Tube 8mm Annealing 304 Stainless Steel

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

20 feet container load 25tons pipes whose length is under 5.8m

40 feet container load 28tons pipes whose length is under 11.8m

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us. In order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q4: What's your payment terms ?

A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Q5: How long is your production lead time?

A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q6: When can I get the quotation ?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
