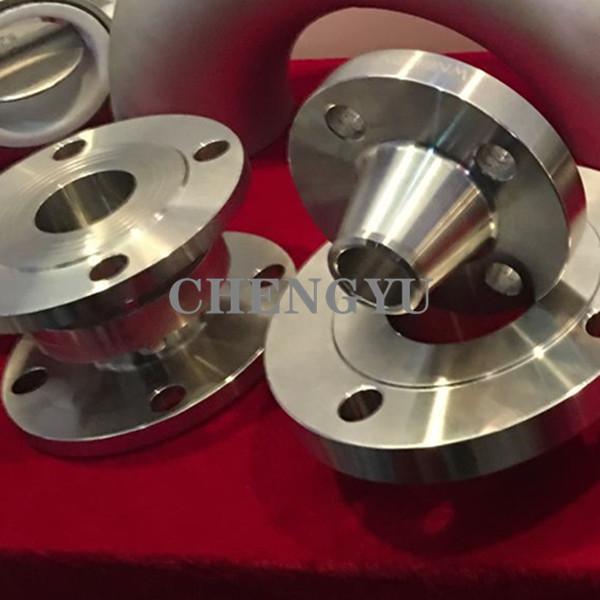

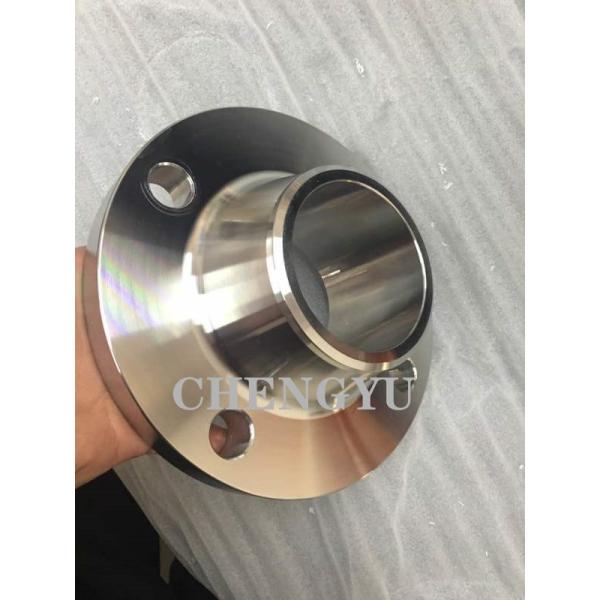

Shipbuilding Anti Rust Varnish Stainless Steel Pipe Flange SS304 ASTM A420
Shipbuilding Anti Rust Varnish Stainless Steel Pipe Flange SS304 ASTM A420
Shipbuilding Anti Rust Varnish Stainless Steel Pipe Flange SS304 ASTM A420
Shipbuilding Anti Rust Varnish Stainless Steel Pipe Flange SS304 ASTM A420
Specifications
Brand Name :
CHENGYU
Model Number :
114
Certification :
ISO
Place of Origin :
CHINA
MOQ :
10PCS
Price :
2.0-0 USD/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500TONS PER YEAR
Delivery Time :
According to customer requirement
Packaging Details :
Wooden Case Package,PALLET
Application :
Construction,medical equipment etc.,Food,petroleum,chemical
Standard :
ASTM,AISI,JIS,DIN,EN
Steel grade :
300 Series,300 series stainless steel pipe,Stainless steel,200series,304 316 310 321 1.4401 1.4406
High Light :
Stainless Steel Flange
Pressure :
150LBS 300LBS
Packing :
wooden case, pallet or as customers’ requirement
Description

201/304/304L/304LN/304H/316Ti/316L/316H/321/321H/904L/310S/347 Stainless Steel Sanitary Pipe Fittings

Quick Details

Certification: ISO 9001:2008;

Type SS304 316 Stainless Steel Flange ASTM B16.9 FOR INDUSTRY
Size1/4"- 1/4"-6"
Pressure 150LBS 300LBS
Standards ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc
Material

Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L

Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, 46, 52, 56, 60, 65, 70, 80

Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 Low Temperature: ASTM A420 WPL 1, WPL 3, WPL 6
Surface treatment Black painting,anti-rust varnish,anti-rust oil,hot galvanized,3PE coating, epoxy coating.
Packing wooden case, pallet or as customers’ requirement
Applications Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc
Min order 10 pieces
Delivery time 7 after receipt of advanced payment
Certificate API, CCS,and ISO9001:2000
Productivity 150000 pc per year
Keywords: stainless steel pipe fitting.

ASTM Chemical Composition (%,max)
Grade C ≤ Si ≤ Mn ≤ P ≤ S ≤ Ni ≤ Cr ≤ Mo Others
304 0.08 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00
304H 0.04-0.1 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00
304L 0.035 0.75 2 0.04 0.03 8.00-13.00 18.00-20.00
304N 0.08 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00 N:0.1-0.16
304LN 0.035 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00 N:0.1-0.16
309 0.15 0.75 2 0.04 0.03 12.00-15.00 22.00-24.00
310 0.15 0.75 2 0.04 0.03 19.00-22.00 24.00-26.00
316 0.08 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00
316H 0.04-0.1 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00
316L 0.035 0.75 2 0.04 0.03 10.00-15.00 16.00-18.00 2.00-3.00
316N 0.08 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00 N:0.1-0.16
316LN 0.035 0.75 2 0.04 0.03 10.00-15.00 16.00-18.00 2.00-3.00 N:0.1-0.16
317 0.08 0.75 2 0.04 0.03 11.00-14.00 18.00-20.00 3.00-4.00
321 0.08 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Ti:5xC%-0.70B
321H 0.04-0.1 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Ti:4xC%-0.6
347 0.08 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Nb+Ta:10xC%-1.00
347H 0.04-0.1 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Nb+Ta:8xC%-1.00
329 0.089 0.75 2 0.04 0.03 2.50-5.00 23.00-28.00 1.00-2.00
316Ti 0.08 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00 Ti:5xC%-0.75
S31803 0.03 1.00 2 0.02 0.02 4.5-6.5 21.00-23.00 2.50-3.50 N:0.08-0.2
S32750 0.03 0.80 1.2 0.03 0.015 6.0-8.0 24.00-26.00 3.00-5.00 N:0.24-0.32

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

20 feet container load 25tons pipes whose length is under 5.8m

40 feet container load 28tons pipes whose length is under 11.8m

Shipbuilding Anti Rust Varnish Stainless Steel Pipe Flange SS304 ASTM A420

Shipbuilding Anti Rust Varnish Stainless Steel Pipe Flange SS304 ASTM A420

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us. In order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q4: What's your payment terms ?

A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Q5: How long is your production lead time?

A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q6: When can I get the quotation ?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
