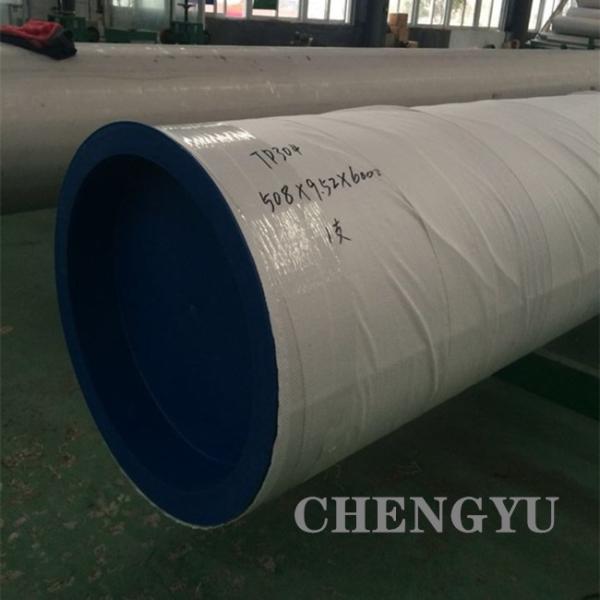

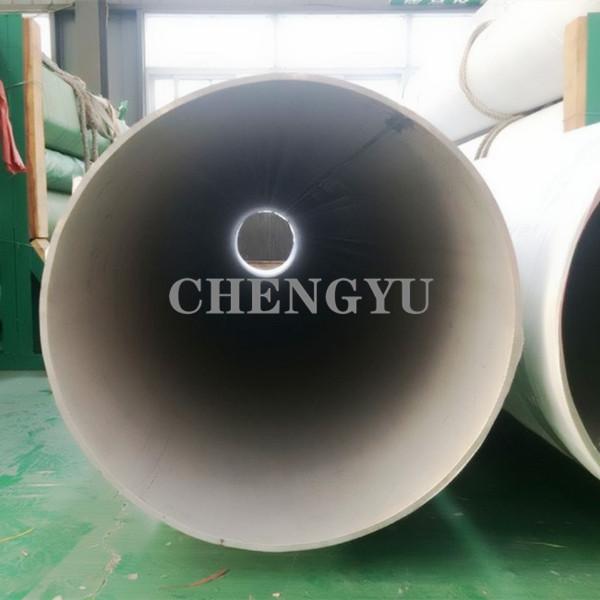

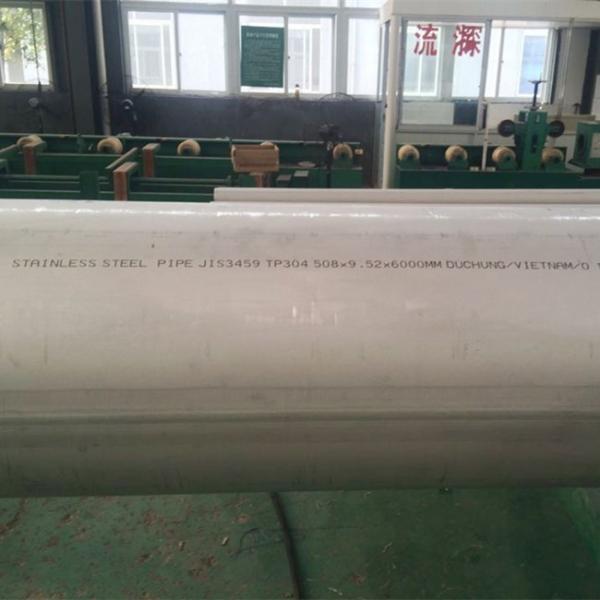

EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration
EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration
EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration
EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration
EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration
EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration
Specifications
Brand Name :
CHENGYU
Model Number :
508X9.52
Certification :
ISO
Place of Origin :
CHINA
MOQ :
50KG
Price :
2.0-3.0USD/KG
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000TONS PER YEAR
Delivery Time :
5-15DAYS
Packaging Details :
Plastic Bag,Plywooden case
Type :
Welded
Welding line type :
ERW,EFW
Standard :
EN,ASTM,AISI,DIN,JIS
Application :
Decoration,Industry,Railing & baluster constrcution Decoration
Shape :
Round.square.Rectangle,Round.square.Rectangle .Flat.Oval. Solid
Surface :
Annealed/Pickling/Polished/Brushed/Sand-blasted finished
Description
Overview

Quick Details

Standard:JIS,AISI,ASTM,GB,DIN,EN,GOST

Type:Welded

Grade:201/304/304L/304LN/304H/316Ti/316L/316H/321/321H/904L/310S/347 etc

Size:OD6mm-1024mm WT0.5mm-68mm LENGTH 50mm-12000mm

Application:Pipe and Tubes for petrochemical industry,Pharmaceutical industry,Food industry,Aviation and aerospace industry,Architectural decoration industryEtc

Surface Finish:Brush polish,Hairline,160grit,Mirror,Bright,Etc

Test:Hardness Test,Hydrostatic Test,Ultrasonic Test,Eddy Current Test,Dimensional Checking,Chemical Analysis Etc

Inspection:100%

Price Term:FOB,CFR,CIF or as negotiation

Name 304 316 316L welded large diameter stainless steel pipe for industry
Items Round tubes ,welded
Standard ASTM ,GB,DIN AISI
Material Grade 316L:Ni 10%, Cr 16%
304L: Ni 8%, Cr 18%
304: Ni 8%, Cr 18%
Outer Diameter Round pipe9.5mm--813mm
square 12.7x12.7--200X200mm
rectangular 20X40--150X200mm
Thickness 0.8mm - 34mm
Length 5.8m,6m, or as customers' request
Tolerance a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm
Surface annealing,pickling
sandblasting
Application industry,exhausting,water
Test Squash test, extended test, water pressure test,heat treatment, NDT
Chemical Composition of Material Material 304L 316L 304
C ≤0.035 ≤0.035 ≤0.08
Si ≤1.00 ≤1.00 ≤1.00
Mn ≤2.00 ≤2.00 ≤2.00
P ≤0.045 ≤0.045 ≤0.045
S ≤0.03 ≤0.03 ≤0.03
Cr 18-20 16-18 18-20
N 8-12.0 10-14 8-10.5
Mechanical Property Material Item 304L 316L 304
Tensile Strength ≥515 ≥515 ≥515
Yield Strength ≥205 ≥205 ≥205
Extension ≥35% ≥35% ≥35%
Hardness (HV) N/M N/M

N/M

Stainless Steel Chemical Composition (%,max)
UNS ASTM DIN JIS C ≤ Si ≤ Mn ≤ P ≤ S ≤ Ni ≤ Cr ≤ Mo Others
S30400 304 1.4301 SUS304 0.08 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00
S30403 304L 1.4306 SUS304L 0.035 0.75 2 0.04 0.03 8.00-13.00 18.00-20.00
S30451 304N 1.4315 SUS304N1 0.08 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00 N:0.1-0.16
S30900 309 1.4828 SUS309 0.15 0.75 2 0.04 0.03 12.00-15.00 22.00-24.00
S31000 310 1.4821 0.15 0.75 2 0.04 0.03 19.00-22.00 24.00-26.00
S31600 316 1.4401 SUS316 0.08 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00
S31603 316L 1.4404 SUS316L 0.035 0.75 2 0.04 0.03 10.00-15.00 16.00-18.00 2.00-3.00
S31700 317 1.4436 SUS317 0.08 0.75 2 0.04 0.03 11.00-14.00 18.00-20.00 3.00-4.00
S32100 321 1.4541 SUS321 0.08 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Ti:5xC%-0.70B
S34700 347 1.455 SUS347 0.08 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Nb+Ta:10xC%-1.00
S31635 316Ti 1.4571 SUS316Ti 0.08 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00 Ti:5xC%-0.75
0.03 1.00 2 0.02 0.02 4.5-6.5 21.00-23.00 2.50-3.50 N:0.08-0.2
0.03 0.80 1.2 0.03 0.015 6.0-8.0 24.00-26.00 3.00-5.00 N:0.24-0.32

AMERICAN STANDARD CONTRAST FORM
Nominal diameter in inches External diameter in millimeters ANSI B36.19
5s 10s Sched 40s Sched 80s
mm kg/m mm kg/m mm kg/m mm kg/m
1/8" 10.29 1.24 0.281 1.73 0.371 2.41 0.467
1/4" 13.72 1.65 0.499 2.24 0.644 3.02 0.809
3/8" 17.15 1.65 0.64 2.31 0.858 3.2 1.118
1/2" 21.34 1.65 0.814 2.11 1.016 2.77 1.26 3.73 1.62
3/4" 26.67 1.65 1.034 2.11 1.298 2.87 1.68 3.91 2.19
1" 33.4 1.65 1.312 2.77 2.125 3.38 2.5 4.55 3.23
11/4" 42.16 1.65 1.674 2.77 2.732 3.56 3.38 4.85 4.46
11/2" 48.26 1.65 1.926 2.77 3.155 3.68 4.05 5.08 5.4
2" 60.33 1.65 2.424 2.77 3.992 3.91 5.43 5.54 7.47
21/2" 73.03 2.11 3.747 3.05 5.345 5.16 8.62 7.01 11.4
3" 88.9 2.11 4.585 3.05 6.557 5.49 11.28 7.62 15.25
31/2" 101.6 2.11 5.272 3.05 7.526 5.74 13.56 8.18 18.62
4" 114.3 2.11 5.945 3.05 8.496 6.02 16.06 8.56 22.29
5" 141.3 2.77 9.639 3.4 11.74 6.55 21.76 9.52 30.92
6" 168.3 2.77 11.514 3.4 14.037 7.11 28.23 10.97 42.52
8" 219.08 2.77 15.049 3.76 20.334 8.18 42.49 12.7 64.57
10" 273.05 3.4 23.028 4.19 28.29 9.27 60.24 12.7 81.46
12" 323.85 3.96 31.806 4.57 36.633 9.52 73.76 12.7 97.36

EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration

EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration

EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration

EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration

EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration

EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration

EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration

EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration

EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration

EFW 304LN 304H SS Welded Pipe For Baluster Construction Decoration

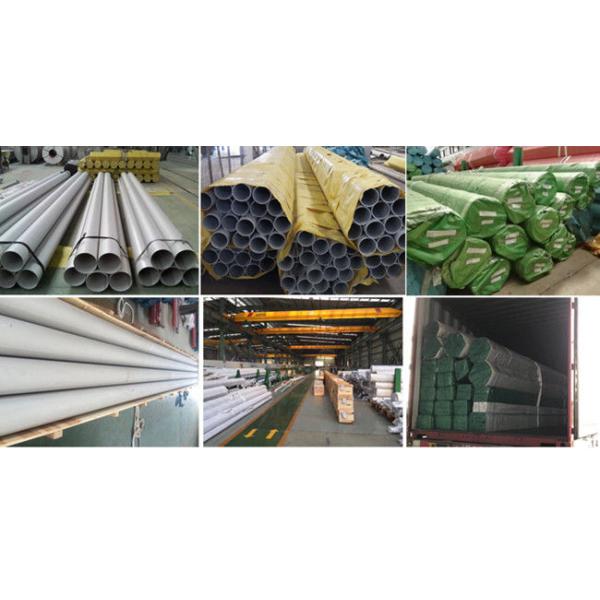

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

20 feet container load 25tons pipes whose length is under 5.8m

40 feet container load 28tons pipes whose length is under 11.8m

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us. In order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q4: What's your payment terms ?

A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Q5: How long is your production lead time?

A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q6: When can I get the quotation ?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
