Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
Specifications
Brand Name :
SINOY
Model Number :
321 / 316L / 430
Certification :
SGS, TUV, ISO
Place of Origin :
CHINA
MOQ :
1 Tons
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
800 Tons per month
Delivery Time :
3-5 working days for regular size,
Packaging Details :
waterproof paper and steel strip reinforcement
Product :
Stainless Steel Coil
Surface :
2B / BA / NO.1 / 8K
Standard :
JIS, AISI, ASTM, GB, DIN, EN ,etc
Thickness :
0.3-3mm
Width :
1240mm , 1500mm
Trade Term :
FOB , CFR , CIF, CNF , EXW
Edge :
Slit,Mill
Description

321 / 316L / 430 Stainless Steel Coil with 2B / BA / NO.1 / 8K Surface

stainless steel coil

Grade: 430 321 316L
Thinckness: 0.3-3mm

Tolerance: +/- 0.02mm

Width: 1219mm , 1500mm , 1524mm or as customized

Length:Coil

Mill name : LISCO ZPSS Tsingshan

Price time: FOB , CFR , CIF, CNF

Payment : 30% T/T in advanced+70% balanced ; irrevocable L/C at sight

Cold rolled coil
Specification
(Thick)		 Big Deviation Normal Deviation Small Deviation No Deviation
0.4mm 0.3mm-0.32mm 0.33mm-0.37mm 0.37mm-0.39mm no less than 0.39mm
0.5mm 0.4mm-0.42mm 0.43mm-0.47mm 0.47mm-0.49mm no less than 0.49mm
0.6mm 0.5mm-0.52mm 0.53mm-0.56mm 0.57mm-0.59mm no less than 0.59mm
0.7mm 0.6mm-0.62mm 0.63mm-0.67mm 0.67mm-0.69mm no less than 0.69mm
0.8mm 0.7mm-0.72mm 0.73mm-0.77mm 0.74mm-0.79mm no less than 0.79mm
0.9mm 0.8mm-0.82mm 0.83mm-0.87mm 0.87mm-0.89mm no less than 0.89mm
1.0mm 0.89mm-0.9mm 0.91mm-0.94mm 0.94mm-0.99mm no less than 0.99mm
1.2mm 1.02mm-1.08mm 1.09mm-1.15mm 1.16mm-1.18mm no less than 1.18mm
1.5mm 1.32mm-1.38mm 1.39mm-1.45mm 1.46mm-1.48mm no less than 1.48mm
2.0mm 1.72mm-1.79mm 1.8mm-1.86mm 1.87mm-1.9mm no less than 1.9mm
2.5mm 2.23mm-2.36mm 2.32mm-2.42mm 2.42mm-2.47mm no less than 2.48mm
3.0mm 2.7mm-2.77mm 2.78mm-2.85mm 2.85mm-2.9mm no less than 2.9mm

Is There Any Cutting Or Surface Treatment In Your Company?

  • We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,

  • Water cutting(2.0-200mm 2 Sets)

  • Laser cutting(1.0-200mm 3 Sets)

  • Plasma cutting(6-120mm 9 Sets)

  • Thin plate grinding(0.3-4.0mm 1 Set.)

  • Surface style:oil grinding NO.4,HL,dry grinding HL

  • BTY,in 2015,we import one German laser cutting machine,could give client exact and perfect laser cutting technique,just let me know your details CAD drawing of stainless steel parts

  • Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
    Stainless Steel Processing
  • Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
    Stainless Steel Processing
  • Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
    Stainless Steel Processing
  • Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
    Stainless Steel Processing
  • Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
    Stainless Steel Processing
  • Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved
    Stainless Steel Processing

Applications

Typical applications for 304L grade include:
Linings for dish washers
Refrigerator cabinet panels
Automotive trim
Lashing Wire
Element Supports
Stove trim rings
Fasteners
Chimney Liners

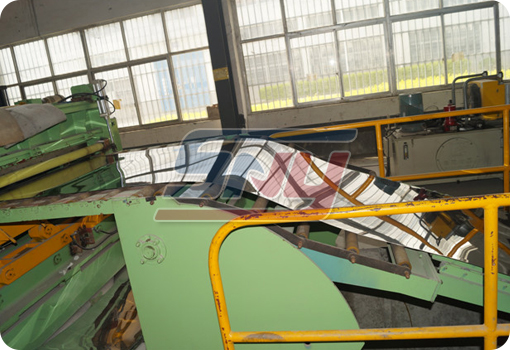

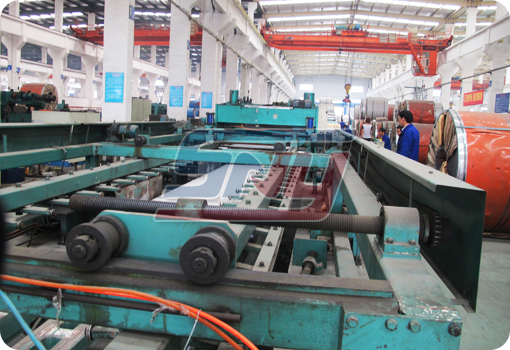

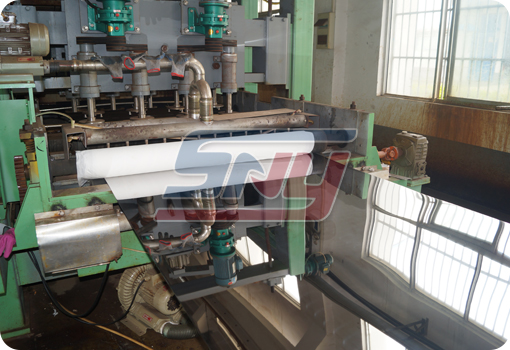

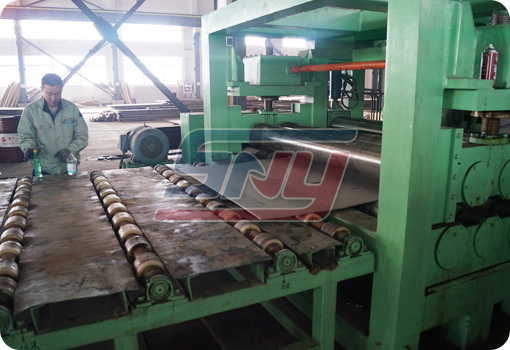

Factory and Machinery Equipment :

We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,

1. CNC Flame Cutting Machine

2. CNC Plasma Cutting Machine

3. CNC Laser Cutting Machine

4. Bending Machine

5. Shearing Machine

6. Punch Machine

7. Driving Machine

Professional 316 Stainless Steel Coil 0.3-3mm Thickness Multi Standard Approved

Data Compare with stainless steel pipe grades:

C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤1.00 ≤5.5-7.0 ≤0.060 ≤0.030 3.50-5.50 16.00-18.00
202 ≤0.15 ≤1.00 ≤7.50-10.00 ≤0.060 ≤0.030 4.0-6.0 17.0-19.0 ---
304 ≤0.07 ≤1.00 ≤2.00 ≤0.035 ≤0.030 8.00-11.00 17.00-19.00 ---
304L ≤0.03 ≤1.00 ≤2.00 ≤0.035 ≤0.030 8.00-12.00 18.00-20.00 ---
316 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.030 10.00-14.00 16.00-18.50 2
316L ≤0.03 ≤1.00 ≤2.00 ≤0.035 ≤0.030 12.00-15.00 16.00-18.00 2
430 ≤0.12 ≤0.75 ≤1.00 ≤0.04 ≤0.030 ≤0.60 16.00-18.00 ---
