Specifications
Brand Name :
SINOY
Model Number :
316L
Certification :
SGS,TUV, ISO
Place of Origin :
CHINA
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
800Tons per month
Delivery Time :
3-5 days
Packaging Details :
waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20GP / 40GP or Bulk loading
Name :
316L hot rolled Stainless Steel Angle Bar
Material :
316L
Other Grade :
310s 304 304L 321 904L Q235
Thickness :
3-15mm
Size :
20*20-100*100mm
Length :
6M Or Customized Length
Standard :
ASTM A484/A484M，ASTM A213/213A ，ASTM A269/269M
Finish / Surface :
No.1 hot rolled
Technique :
hot rolled
Mill :
TISCO JISCO BAOSTEEL LISCO ZPSS Tsingshan
Description

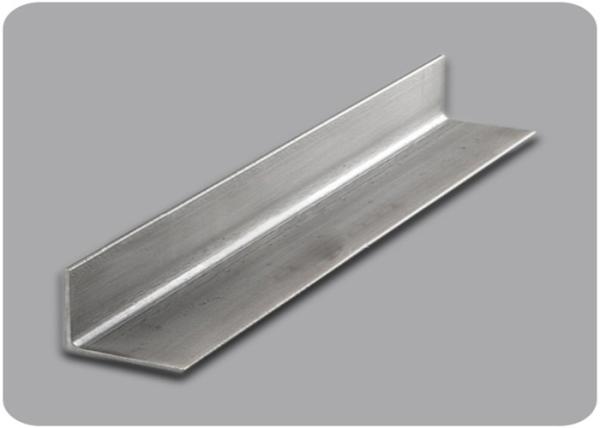

316L Hot Rolled Stainless Steel Angle Bar 25*25*3mm Angle Steel

Category of stainless steel angle bar:
It can be divided into two kinds: equal-edge stainless steel angle steel and unequal-edge stainless steel angle steel. The unequal-edge stainless steel angle steel can be divided into unequal-edge equal-thickness and unequal-edge unequal-thickness.

Standard Size and Unit Weight of Angle bar / Angle steel

A×B
　　mm		 Thickness (mm)
3 4 5 6 7 8 9 10
20×20 0.894 1.13 1.38
25×25 1.13 1.45 1.77 2.06
30×30 1.37 1.77 2.17 2.53
35×35 1.61 2.09 2.57 3.01
40×40 1.85 2.41 2.97 3.49
45×45 2.12 2.76 3.40 4.00
50×50 2.36 3.07 3.79 4.46 5.13 5.76 6.42 7.06
60×60 4.58 5.42 6.24 7.03
63×63 5.03 5.95 6.84 7.71 8.60 9.48
70×70 5.42 6.42 7.39 8.34 9.31 10.3
75×75 5.82 6.89 7.95 8.97 10.0 11.1
80×80 7.37 8.50 9.61 10.7 11.8
90×90 8.33 9.65 11.90 12.2 13.4
100×100 9.28 10.8 12.20 13.6 15.0

CHEMICAL COMPOSITION 316L stainless steel angle bar

o22Cr17Ni12Mo2 (00Cr17Ni14Mo2)

316L Chemical composition:
C Si Mn Cr Ni S P
0.03 ≤1.0 ≤2.0 16.0~18.0 10.0~14.0 ≤0.03 ≤0.045
mechanical properties:
Tensile strength σb (MPa) Conditions yield strength 0.2 sigma (MPa) Elongation % (min) Hardness
520 205 40 ≤187HB ≤90HRB ≤200HV

How Can You Ship Goods Like Heavy welded Stainless Steel Angle bar. What Is Best Pacakge?

  • Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
  • We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
    • Waterproof paper reinforcement of steel strip
    • Kraft paper
    • Carton boxes
    • Wooden pallets
    • Wooden boxes
    • Wooden crates

Mark

  • We mark all our products with entire details which are connected to the test certificates we provide.
  • Surface is sprayed with code.

  • We have our own machines to help our partner. Can spray grade, size, and standard.

    . Drop on demand

    . Continue ink jet printer

    . Laser printer

  • 1) We can process to different finish you request.(NO.1 , 2B,BA ,Hairline, No.4,Brush,Mirror,Golden Mirror,color stainless steel.

  • 2) 800 Tons/Month, high production capability will short your wait time.

  • 3) MTC provided before shipment after order.

  • 4) First quality with reasonable price.Second quality lower than Stainless steel market

  • 5) Buyer's Specification Accepted.Laser cutting of stainless steel,Weled of stainless steel pipe,surface treatment of stainless steel

  • 6) Some regular Stainless steel sheet/coil/pipe/bar for client urgent request.
