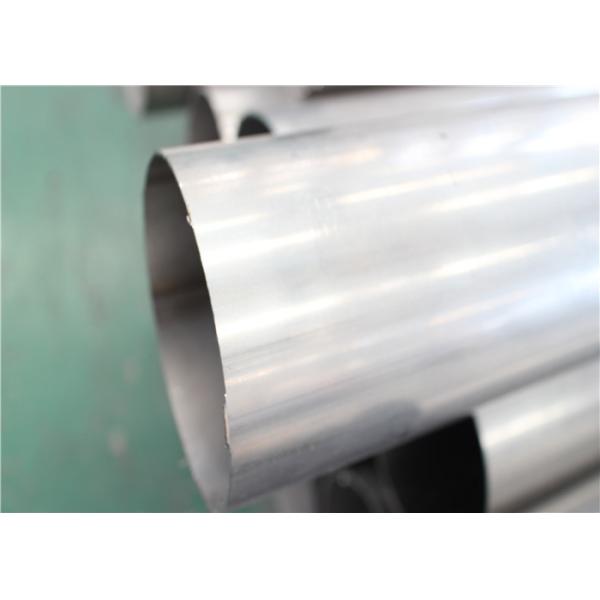

Bright Annealed Metric Stainless Steel Tubing Round Shape Small Diameter High Pressure
Bright Annealed Metric Stainless Steel Tubing Round Shape Small Diameter High Pressure
Bright Annealed Metric Stainless Steel Tubing Round Shape Small Diameter High Pressure
Bright Annealed Metric Stainless Steel Tubing Round Shape Small Diameter High Pressure
Bright Annealed Metric Stainless Steel Tubing Round Shape Small Diameter High Pressure
Bright Annealed Metric Stainless Steel Tubing Round Shape Small Diameter High Pressure
Bright Annealed Metric Stainless Steel Tubing Round Shape Small Diameter High Pressure
Bright Annealed Metric Stainless Steel Tubing Round Shape Small Diameter High Pressure
Specifications
Brand Name :
JISCO, LISCO, TISCO ,BAO STEEL ，ZPSS ，SINOY
Model Number :
201
Certification :
ISO, SGS, TUV, ISO
Place of Origin :
CHINA
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000 Tons
Delivery Time :
5-7 days
Packaging Details :
waterproof paper and steel strip reinforcement steel strip reinforcement,one package about 2.5 tons, 20' / 40'
Other Material :
304 304L 316L 2205 Duplex
Wall Thickness :
0.3-50 mm
Product :
201 Stainless Steel Welded Tube / Pipes
OD :
6-720 mm
Technique :
Welded ,ERW
Tolerance :
Thickness: +/- 0.02mm Length: +/- 5mm
Trade Term :
Ex-Work, FOB, CNF, CFR, CIF, Etc
FOB Port :
Shanghai Or As Required
Description
201 Stainless Steel Welded Tube / Pipes , Bright Annealed Stainless Steel Tube
STANILESS STEEL WELDED PIPE

Type

seamless stainless steel tube , Welded stainless steel tube , Spiral stainless steel tube
ERW stainless steel tube , EFW stainless steel tubeLarge caliber stainless steel pipe ,
Thick walled stainless steel tube , Precision stainless steel tube

Shape : Round , Square, Rectangular, Oval, Hexagonal

Grade

200 Series: 201
300 Series: 303/304/304 L/316/316L

Surface :Drawing , Polishing , Anodizing , Coating , Mirror etc...

Standard :GB/T6893-2000,GB/T4437-2000,ASTM B210,ASTM B241,ASTM B234,JIS H4080-2006,etc

Technique : Hot Rolled , Cold Rolled , Casting , Forging etc.

Certification :ISO , SGS ,BV and so on.

Application :Oil well pipe (casing , tubing and drill pipe , etc.), pipeline , boiler tube , mechanical structure pipe ,
hydraulic prop pipe , gas cylinder tube , geological tube , chemical pipe
(high pressure chemical fertilizer pipe , oil cracking pipe) and ship pipe

Data Compare with other grade:
C S Mn P S Ni Cr Mo
201 ≤0.15 ≤1.00 ≤5.5-7.0 ≤0.060 ≤0.030 3.50-5.50 16.00-18.00
202 ≤0.15 ≤1.00 ≤7.50-10.00 ≤0.060 ≤0.030 4.0-6.0 17.0-19.0 ---
304 ≤0.07 ≤1.00 ≤2.00 ≤0.035 ≤0.030 8.00-11.00 17.00-19.00 ---
304L ≤0.03 ≤1.00 ≤2.00 ≤0.035 ≤0.030 8.00-12.00 18.00-20.00 ---
316 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.030 10.00-14.00 16.00-18.50 2
316L ≤0.03 ≤1.00 ≤2.00 ≤0.035 ≤0.030 12.00-15.00 16.00-18.00 2

Stainless steel welded tube / pipe, referred to as welded pipes, commonly used steel or steel strips are welded into steel pipes after being curled and formed by machine sets and dies. Welded steel pipe has the advantages of simple production process, high production efficiency, more varieties and specifications, less equipment investment, but its general strength is lower than seamless steel pipe.

Specifications data of stainless Steel Welded tube:

Size (mm) Quantity Size (mm) Quantity Size (mm) Quantity
6-12×1.5-2.5 18

73×4-4.5-5-6-7-8-9-10-12-15

 50 219×30-40 65
14×1.5-2.5-3 20

76×4-4.5-5-6-7-8-9-10-12-14

 60 245×8-10-14-17-20-22 105
16×1.5-2.5-4 30 83×4.5-5-10 30

245×25-28-30-34-40

 84
18×2.3-4-5 20 89×4.5-8-10 40

273×7-9-12-15-18-20-25

 100
20×2.5-3-5 17

95×4.5-6-8

 50 273×30-35-38-40 50
24×2.5-3-4-5-6 25 102×4.5-5-6-10-12-14-16-20 80

299×8-12-16-20-24-28

 60
25×2.5-3-4-5-6 28 108×4.5-5-14-18-20-22 75

299×30-32-36-38-40

 70
28×3-3.5-4-5-6 30

114×4.5-5-6-7-8-10-12-14-18-20

 100 325×8-12-14-18-38 120
32×3.5-4-5-6-8 40

121×4.5-5-6-7-8-10-12-14-16-20

 102 325×28-32-34-38 75
34×4-5-6-8 35

127×4.5-5-6-7-8-10-12-14-16-20

 95 351×10-16-20-25-40 120
36×3.5-5-6-8 30

133×4.5-6-8-12-14-16-18-20-25-30

 120 355×6-18-20-25-30-40 45
38×4-5-6-7-8-9-10 33 140×5-6-7-8-9 50

377×8-12-15-20-24-28

 128
39×3.5-5-8-10 30

146×4.5-6-8

 60 377×30-37-40 60
42×3.5-4-5-6-7-8-9-10 35

152×4.5-6-8

 60 402×10-20-25-30-35 70
45×3.5-4-5-6-7-8-9 40 159×4.5-6-10-12-14 80 406×10 110
48×3.5-4-5-6-7-8-9-10 24 159×16-18 30 426×10 97
51×3.5-4-5-6-7-8-9-10 60 168×8-25-30-35 130 450×10-20-25-34-40 108
56×3.5-4-5-6-7-8-9-10 58 180×8-12-16-25-30 105 480×25-30-40 95
57×3.5-5-6-7-8-9-10-12 50 180×32-34-38-40 102 500×10-34-40-45 100
60×3.5-4.5-5-6-7-8-9-12-14 60 194×6-8-25-30-40 140 510×10-25-34-40-45 110
63×3.5-4.5-5-6-7-8-9-10-12-14 40

203×6-7-10-15-20-25-30

 90 530×20-30-40 140
68×4-4.5-5-6-7-8-9-10-12-14-16 35 203×32-36-40 70 560-720*6-10-24-45
70×4-4.5-5-6-7-8-9-10-12-15-16 40

219×6-8-12-16-18-20-25

 110


Is there any guarantee of SINO Stainless Steel?

Factory supply inspection before shipment,sampling test( cut one piece for you to test in our lab or some other lab like SGS which you trust so much) ,

you also could inspection of loading on the forwarder warehouse or our Mill.

Packing

Bright Annealed Metric Stainless Steel Tubing Round Shape Small Diameter High PressureBright Annealed Metric Stainless Steel Tubing Round Shape Small Diameter High Pressure
