BE Stainless Steel Pipe , 2205 Duplex Tubing Quenched Structure High Corrosion Resistance
BE Stainless Steel Pipe , 2205 Duplex Tubing Quenched Structure High Corrosion Resistance
BE Stainless Steel Pipe , 2205 Duplex Tubing Quenched Structure High Corrosion Resistance
BE Stainless Steel Pipe , 2205 Duplex Tubing Quenched Structure High Corrosion Resistance
BE Stainless Steel Pipe , 2205 Duplex Tubing Quenched Structure High Corrosion Resistance
BE Stainless Steel Pipe , 2205 Duplex Tubing Quenched Structure High Corrosion Resistance
Specifications
Brand Name :
SINOY
Model Number :
2507 2205
Certification :
SGS,TUV , ISO
Place of Origin :
CHINA
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
800 Tons per month
Delivery Time :
5-7 days
Packaging Details :
waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20GP /40GP
Material :
Duplex Stainless Steel Plate , Cold Rolled Steel Sheet
Grade :
2507 2205
Thickness :
0.3-3mm
Width :
1000mm , 1219mm , 1240mm , 1500mm
Length :
1000-6000mm As Your Request
Shape :
sheet /plate/ coil
Mill :
TISCO SINOY
Edge :
Still , Mill
Technique :
cold rolled
Other material :
201 202 304 304L 430 321 309s 310s 904L Ect
Description

2205 2507 Duplex Stainless Steel Plate , Cold Rolled Steel Sheet

Wuxi Sino Yuan Science and Technology Co.,Ltd is one of the toppest 2205 2507,2205 2507 stainless steel sheet ,China steel supplier in China.During these years of exporting , Wuxi Sino Yuan Science and Technology Co.,Ltd now has rich .

SINO Stainless Steel

  • SINO STEEL Professional inspection before dhipment of supplier's sample, including chemical and mechanical property.

  • MTC provided before shipment after order.

  • Strong safety ASTM,AISI, JIS, EN standards.

  • Third Party Inspection Packing inspection if customers need.

  • SINO STEEL With 10 years experience in stainless steel.

  • We provide slitting cutting, heat treatment, surface treatment, application consulting services.

  • All sizes could be customized in our warehouse.

  • We accept 100% L/C payment.

  • Just 2 hours to Shanghai port, the goods could be sent within 24 hours.

Duplex Stainless Steel Sheet:

specification Thickness:0.3-3mm
Width:500-2000mm normal size1000 1219 1220 1240 1250 1500 2000mm Length:1000-6000mm normal size 2438 2440 3000 6000mm
Mill TISCO BAOSTEEL LISCO BAOXIN ZPSS JISCO
Finish BA, 2B , HL , Mirror , Polish , Brush , PVC
Edge Mill /raw , slit edge
Weight ThicknessXWidthXLengthX8.0 ( 2207 per sheet )
Technique cold rolled
Payment term 30% T/T in advance,the balance before shipment 30% T/T in advance,the balance L/C at sight 100% L/C at sight
Packing 1.Export sea worthy package + water proof paper + wooden pallet 2.Max Loading 25mt for each 20GP container 3.Safe loading and fixing Professional Teams
Delivery time Within 5-7 days after received 30%T/T of deposit
Trade terms FOB Shanghai CNF , CFR & CIF your port
Quality control Mill Test Certificate is supplied with shipment
Application 1.Construction field, shipping building industry
2. Petroleum and Chemical Industries 3.Food and Mechanical Industries

Duplex 2205 2507 Stainless Steel

The main alloying elements of duplex steel are Cr, Ni, Mo and N. Among them, Cr and Mo increase ferrite content, while Ni and N are austenite stable elements. Some steels also contain elements such as Mn, Cu and W. Cr, Ni and Mo can improve the corrosion resistance. In the chloride-containing environment, its pitting and crack corrosion resistance is particularly good.

CHEMICAL COMPOSITION

2507 C Si Mn P S Ni Cr Mo N
≤0.03 ≤0.80 ≤1.20 ≤0.035 ≤0.02 6~8 24.00~26.00 3~5 0.24~0.32

MECHANICAL PROPERTY Duplex 2507 Stainless Steel Sheet

2507 σb (MPa)800-1000
σ.2 (MPa)≥550
δ5 (%)≥25
≤290HV
8.0 g/cm3
2507 σb (MPa)800-1000
σ0.2 (MPa)≥550
δ5 (%)≥25
≤290HV

2205 CHEMICAL COMPOSITION:

2205 C Si Mn P S Ni Cr Mo N
≤0.03 ≤1.00 ≤2.00 ≤0.030 ≤0.015 4.50~6.50 21.00~23.00 2.90~3.50 0.14~0.20

MECHANICAL PROPERTY Duplex 2205 Stainless Steel plate

2205 σb (MPa)≥620
σ.2 (MPa)≥450
δ5 (%)≥18
≤320HV
8.0 g/cm3
2205 σb (MPa)≥620
σ0.2 (MPa)≥450
δ5 (%)≥18
≤320HV

Duplex 2507 Stainless Steel National standards :


ASTM/ASME: A240-UNS S32750
EURONORM: 1.4410 - X2 Cr Ni MoN 25.7.4
AFNOR: Z3 CN 25.06 Az
DIN/EN 1.4410, ASME SA-240

Duplex 2507 2205 stainles steel Product Introduction :

At present, 2507 stainless steel products in China include

2507 stainless steel tubes,

2205 duplex stainless steel seamless tubes,

2205 duplex stainless steel plates,

2507 stainless steel bars,

forgings, fittings, strips, etc.

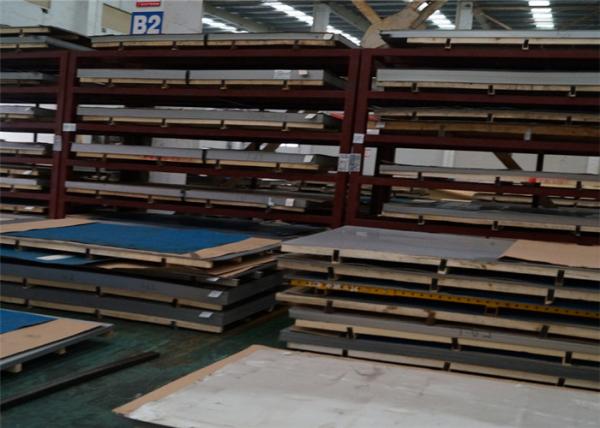

Packing & Factory

BE Stainless Steel Pipe , 2205 Duplex Tubing Quenched Structure High Corrosion Resistance

Applications

Typical applications for201 310S 321 410S grade include:
Linings for dish washers
Refrigerator cabinet panels
Automotive trim
Lashing Wire
Element Supports
Stove trim rings
Fasteners
Chimney Liners

BE Stainless Steel Pipe , 2205 Duplex Tubing Quenched Structure High Corrosion Resistance
