Specifications
Brand Name :
TISCO BAOSTEEL
Model Number :
Color Coated Coil
Certification :
SGS BV
Place of Origin :
China
MOQ :
1 ton
Price :
To be negotiated
Payment Terms :
L/C, T/T
Supply Ability :
8,000 ton per month
Delivery Time :
10-15 days after advance payment
Packaging Details :
Kraft paper, wooden case, packaging according to customer requirements
Name :
DX51D+Z Aluzinc Color Coated Steel Coils SGS Prepainted PPGI PPGL
Type :
Steel Coil
Surface treatment :
Coated,Galvanized,color coated/galvanized/galvalume,Oiled,Skinpassed
Grade :
DX51D,SGCC,Q195/Q235/Q235b/CGCC/DX51D+Z,SGLCC/SGCH/SGHC/DX51D/CS-B
Standard :
AISI,JIS,ASTM,GB,DIN
Application :
Boiler Plate,Flange Plate,Other,Container Plate,roof
Width :
600mm-1250mm,750-1250mm,100mm~2500mm,914-1500mm
Length :
6000mm,Customized
Coil weight :
3-8 Tons,3--8tons,3-7 tons,3-6 MT,3-6 Tons
Zinc coating :
30-275g/m2,40-275g,20g-180g/m2
Description

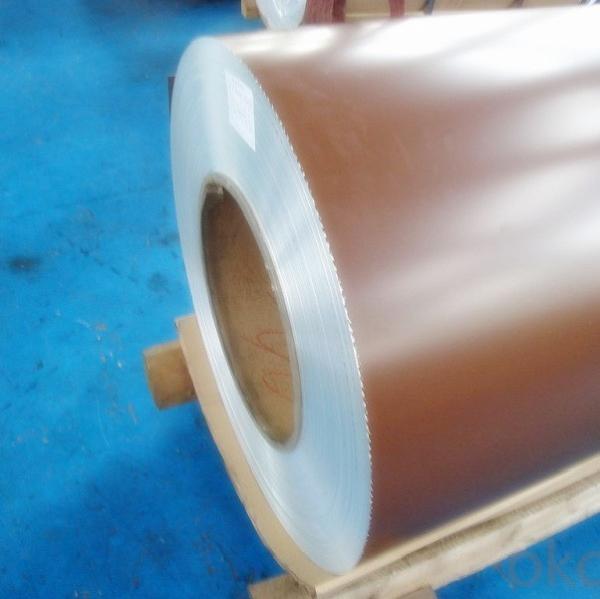

DX51D+Z Aluzinc Color Coated Steel Coils SGS Prepainted PPGI PPGL

Product Description

High Quality Color Coated Zinc Aluminium Roofing Sheet/Prepainted Galvalume Steel Coil/PPGL Steel Coil

Product Detail

Product Name High Quality Color Coated Zinc Aluminium Roofing Sheet/Prepainted Galvalume Steel Coil/PPGL Steel Coil
Color RAL Color
Thickness 0.12-3.0 mm
Width 0-1500mm
Coil Weight 3-8 Ton
Base Material Q195, Q215, Q235, SPCC, SGCC, ST12, DC01, DX51D, SS330(SS34), SS400(SS41)...
Certificate SGS ISO IBR ROHS BV JIS
Painting Thickness Top: 10-25microns/ Bottom: 5-15microns
Price terms FOB,CFR,CIF
Coil ID 508mm or 610mm
Package Standard sea-worthy packing
Application Roof Tiles, Sandwich Panel, Corrugated Board, Doors, Shutters and General Forming.
MOQ 25 Tons

Chemical Composition and Mechanical Properties

Steel grades Chemical composition%
Residual Element>
Tensile strength
(MPa)
Yield strength
(MPa)
C%< Si%< Mn%< P%< S%< Alt<
SGCC, DX51D+Z 0.07 0.03 0.50 0.025 0.025 0.020 Cu<0.10
Ni <0.08
Cr<0.10
As<0.05
Sn<0.05
270-500 140-280
DX52D+Z 0.06 0.03 0.45 0.025 0.025 0.020 270-420 140-300
DX53D+Z 0.03 0.03 0.40 0.020 0.020 0.020 270-380 140-260
S220GD+Z 0.17 0.30 1.00 0.035 0.30 0.020 300-440 >220
S250GD+Z 0.17 0.30 1.00 0.035 0.30 0.020 330-470 >250
S350GD+Z 0.20 0.55 1.60 0.035 0.30 0.020 420-560 >350



Product Testing

Packaging & Shipping

High Quality Color Coated Zinc Aluminium Roofing Sheet/Prepainted Galvalume Steel Coil/PPGL Steel Coil

1. waterproof paper is inner packing

2. galvanized steel or coated steel sheet is outer packing

3. side guard steel plate

4. wrapped by seven steel belt

5. wooden pallet package.

FAQ

Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.

Q:What are the certifications for your products?
A:We have BV, SGS, EWC and other certifications.

Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
