0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL
0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL
0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL
0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL
0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL
0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL
0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL
0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL
0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL
0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL
Specifications
Brand Name :
TISCO BAOSTEEL
Model Number :
Color Coated Coil
Certification :
SGS BV
Place of Origin :
China
MOQ :
1 ton
Price :
To be negotiated
Payment Terms :
L/C, T/T
Supply Ability :
8,000 ton per month
Delivery Time :
10-15 days after advance payment
Packaging Details :
Kraft paper, wooden case, packaging according to customer requirements
Name :
0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL
Type :
Steel Coil
Surface treatment :
Coated,Galvanized,color coated/galvanized/galvalume,Oiled,Skinpassed
Grade :
DX51D,SGCC,Q195/Q235/Q235b,SGCC/CGCC/DX51D/DX51D+Z,SGLCC/SGCH/SGHC/DX51D/CS-B
Standard :
AISI,JIS,ASTM,GB,DIN
Application :
Boiler Plate,Flange Plate,Other,Container Plate,roof
Description

0.12-6.0mm Prepainted steel coil color coated steel coil/sheet/plate/strip/roll, China manufacturer RAL steel PPGI/PPGL

Product Introduction

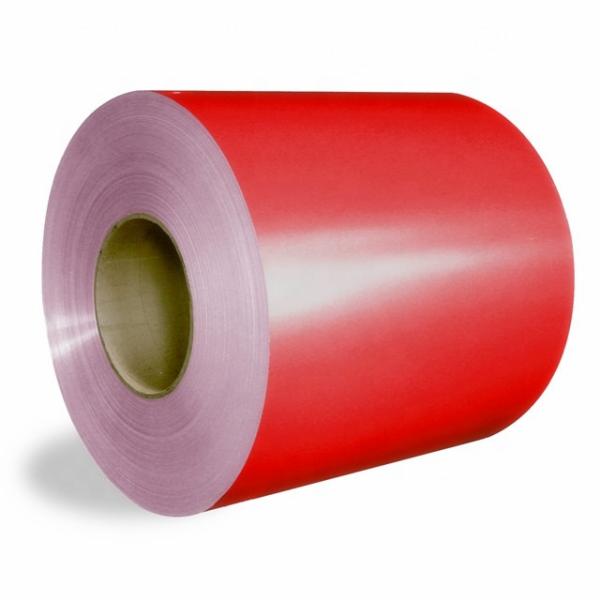

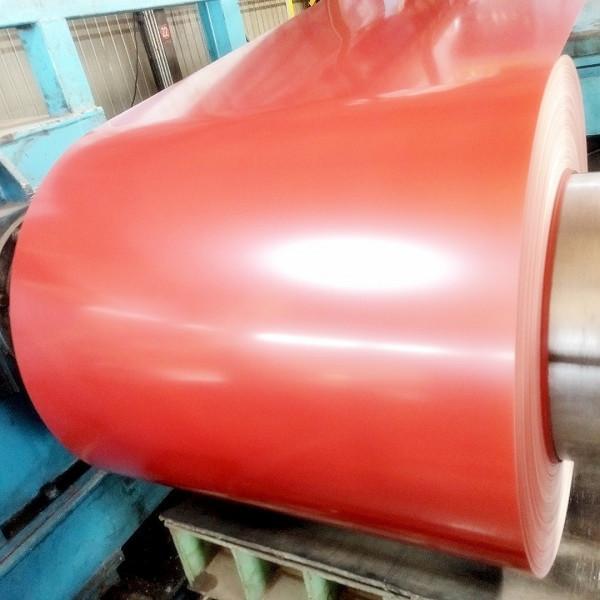

PPGI & PPGL (prepainted galvanized steel & prepainted galvalume steel) also known as pre-coated steel or color coated steel coil, It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc. After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified. The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can be directly processed. The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising, construction, decoration, home appliances, electrical appliances, Furniture industry and transportation industry. The coatings used for color coated steel coils are based on the environment in which the resin is selected, such as polyester silicon modified polyester, polyvinyl chloride plastisol, polyvinylidene chloride, and the like.

Product Specifications
Technical Standard
EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653
Steel Grade
DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ, SECC,
SECE, BLCE+Z, BLDE+Z, BUSDE+Z
or Customer’s Requirement
Base Steel
Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel
Thickness
0.12-6.0mm
Width
600-1500mm
Surface Color
RAL,wood grain pattern, camouflage pattern , stone pattern, matte pattern , high gloss pattern , flower pattern, etc
Quality
Approved by SGS,ISO
Coil Weight
3-20metric ton per coil
Package
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
Export market
Europe,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc

Diagram of Steel Surface Coating And Layers
PPGI
PPGL
Production Process

Substrate Type

1.Hot-dip galvanized color coated steel sheet(prepainted galvanized steel sheet)
The product obtained by coating an organic coating on a hot-dip galvanized steel sheet is a hot-dip galvanized color-coated plate. In addition to the protective effect of zinc, the hot-dip galvanized color-coated sheet also protects against rust and has a longer service life than hot-dip galvanized sheet;
2.Hot-dip aluminum-zinc color coated sheet(prepainted galvalume steel sheet)
Hot-dip aluminum-zinc steel sheets can also be used as color-coated substrates (55% AI-Zn and 5% AI-Zn);
3.Electroplated zinc color coated sheet
The electro-galvanized sheet is used as the substrate, and the product obtained by baking with the organic coating is an electrogalvanized color-coated plate. It has a beautiful appearance and excellent processing properties, and therefore can be mainly used for home appliances, audio, steel furniture, interior decoration, and the like.

Coating Type

Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability and chalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.

Product Advantages

1.Good durability and long life compared with galvanized steel.
2.Good heat resistance, less discoloration at high temperature than galvanized steel.
3.Good thermal reflectivity.
4.Processability and spraying performance similar to galvanized steel.
5.Good welding performance.
6.Good performance-price ratio, durable performance and extremely competitive price.
Product Category
Self Cleaning Prepainted Steel Coil
Thermal Control Prepainted Steel Coil
Antistatic Prepainted Steel Coil
Antiseptic Prepainted Steel Coil
Hydrogen Peroxide Resistance Prepainted Steel Coil
Animal Husbandry Prepainted Steel Coil

FAQ

Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.

Q:What are the certifications for your products?
A:We have BV, SGS, EWC and other certifications.

Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
