Specifications
Brand Name :
YP
Model Number :
YPR13404-YPR70200
Place of Origin :
Hebei , China
MOQ :
1pc
Price :
USD$ 1.5--8.99 /PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS/MONTH
Delivery Time :
5-20 DAYS
Packaging Details :
carton , pallet , wooden case
Other Name :
Stainless Steel Exhaust Band Clamp
Material :
Stainless Steel , Galvanised steel
Type :
Auto exhaust components
Band width :
31.8mm
Structure :
Band clamp , Exhaust clamp
Application :
Truck, Car, Automobile
Function :
Pipe connection
OEM logo :
Accept
Description

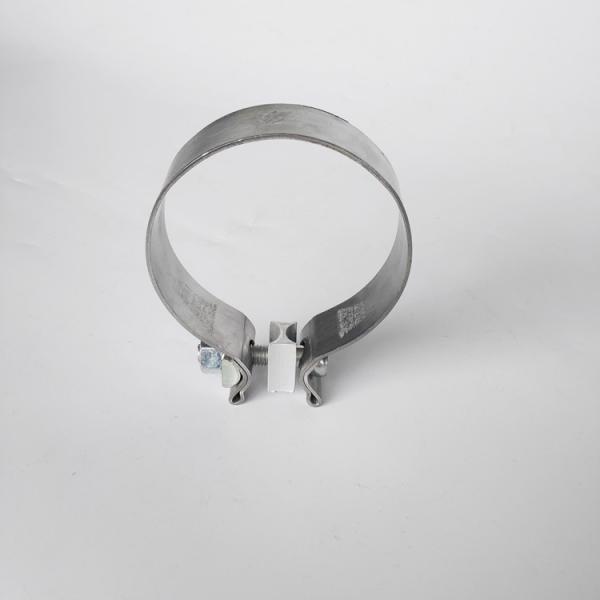

2.0"/ 3.0" 304 Stainless Exhaust Band Seal Muffler Clamps , Exhaust Tip Connect Band Clamps

Stainless Steel Narrow band exhaust clamps provide simple and effective way to connect the exhaust system, with the help of I shape reaction block , such clamp will tighten the exhaust components but without any damage to the pipe. It has advantages of good design structure, 360° sealing environment, low cost and corrosion resistance. Applied for universal automotives.

The material can be Stainless steel ( SUS #300 series, SUS #400 series) ; mild steel galvanized

Product Features:

The band clamp is a strap of metal, usually stainless or galvanized steel, which will wrap around the exhaust pipe joints easily. Because of the good design structure, this exhaust clamp helps to minimize the part number and maximize the material usage to reduce the weight.

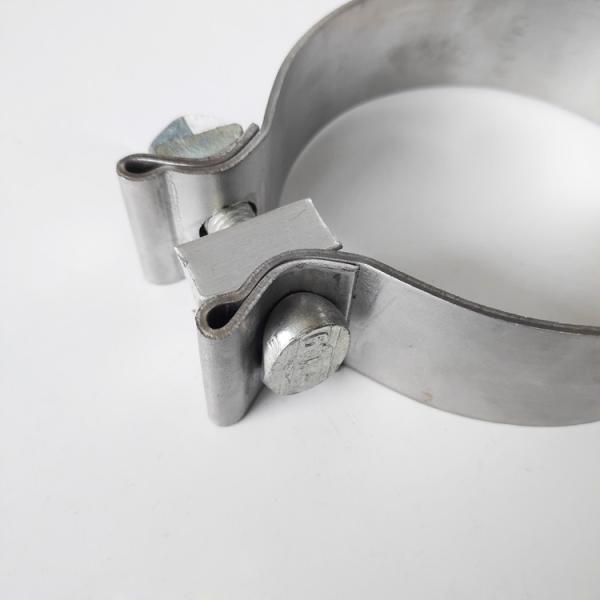

I-Block helps to distributes the clamping force evenly over the entire 360° , which prevent any leaks or material distortion or damaging on the pipe.

The band is a pre - formed ring, which brings low cost and cheap unit price.

304 stainless steel or galvanized material for a long life, and preventing clamps from rusting , corrosion resistant and water resistant.

High clamp loads

Easy to remove or install

Available in a wide range of styles and sizes , customized shape and size are welcome

Standard Specification: Customized sizes are welcome too.

Model Size Min ID (MM) Max ID (MM)
YPNC020 2.0” 50.55 55.63
YPNC02225 2.25” 56.39 60.20
YPNC025 2.5” 62.74 66.80
YPNC030 3.0” 74.93 79.76
YPNC040 4.0” 100.33 104.90

Clamp Installation:

Clamp installation is very easy with help of pre-attached hardware , no instruction included in the package, professional installation is recommended.

Width 31.8mm 2.0

Product Application:

Stainless Steel Narrow band exhaust clamp can be used in many industries, pipes, exhaust tips, tailpipe , catalytic converters , muffler repair projects, catback systems, racing exhaust ,show cars, exhaust manifold, exhaust resonator, exhaust flex pipe and more.

Width 31.8mm 2.0

About Yunpeng:

We supply many car scheduling system products, covering exhaust muffler, exhaust pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories.

Export countries : USA, Canada, UK, Germany, Sweden, Holland, France, Switzerland, Spain, Russia, South America, Middle-East and so on.

If you have any inquiry about these, don't hesitate to contact us now!

Width 31.8mm 2.0
