1.0mm 2×6 Stainless Steel Exhaust Flex Pipe For Generator
1.0mm 2×6 Stainless Steel Exhaust Flex Pipe For Generator
1.0mm 2×6 Stainless Steel Exhaust Flex Pipe For Generator
1.0mm 2×6 Stainless Steel Exhaust Flex Pipe For Generator
1.0mm 2×6 Stainless Steel Exhaust Flex Pipe For Generator
1.0mm 2×6 Stainless Steel Exhaust Flex Pipe For Generator
1.0mm 2×6 Stainless Steel Exhaust Flex Pipe For Generator
1.0mm 2×6 Stainless Steel Exhaust Flex Pipe For Generator
Specifications
Brand Name :
YP
Model Number :
YP13404-YP70200
Place of Origin :
Hebei , China
MOQ :
1pc
Price :
USD$ 1.5--8.99 /PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80000PCS/MONTH
Delivery Time :
10-14 DAYS
Packaging Details :
carton
Name :
Flexible Exhaust Muffler Pipe Connector for Generator
Parts :
Auto engine parts
Material :
Stainless steel 304
Inlet Diameter :
2"
Type :
without cap
Overal Length :
6"
Apply for :
Vehicle Exhaust System
Finish :
Plain
Description

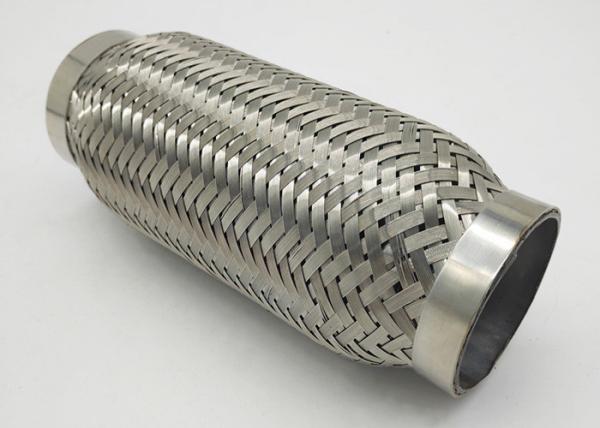

Flexible Exhaust Muffler Pipe Connector for Generator , auto bellow

Exhaust Muffler Pipe Connector consists of four layers. The outer and inner layers are made from the weaving stainless wire. Between these layers, there is a double layer bellow, also made of stainless steel 304. For strong fuction, we can also add interlock inside upon request.

Product Name

Flexible Exhaust Muffler Pipe Connector for Generator , auto bellow

Material

Stainless Steel 409 / 304 / 316, Aluminum cap or stainless cap

Packing

Bubble PE bag, Wooden Case, Neutral packing or negotiated

Size / Inner Diameter

51mm (2 inch) , with braided length 150mm (6inch) , and overall length 250mm (10inch) , other sizes are available too.

Wall Thickness

1.0mm , 1.2mm

Color

Silver

Price Term

EXW , FOB , CIF , C&F

Car Model

Universal

Application / Usage

Muffler , Car Exhaust System , Turbos

Sample Available
Warranty 1 year
Origin Hebei, China


Features and Benefits:

1. To resolve minor deviation because of piping connection and eliminate the pipeline residual stress;

2.Metal bellows to absorb large axial displacement between straight tube and support frame , and small horizontal displacement;
3 Very.Easy to install, clean and maintenance.

4. More types are available

5. Outer braid stainless steel,knitted by 12 units

6. Cap stainless steel or aluminized

7. Working pressure 0~5 Mpa

8. Packaging each one with a PE bag , usually 25 pieces in a carton box as usual or as requirement

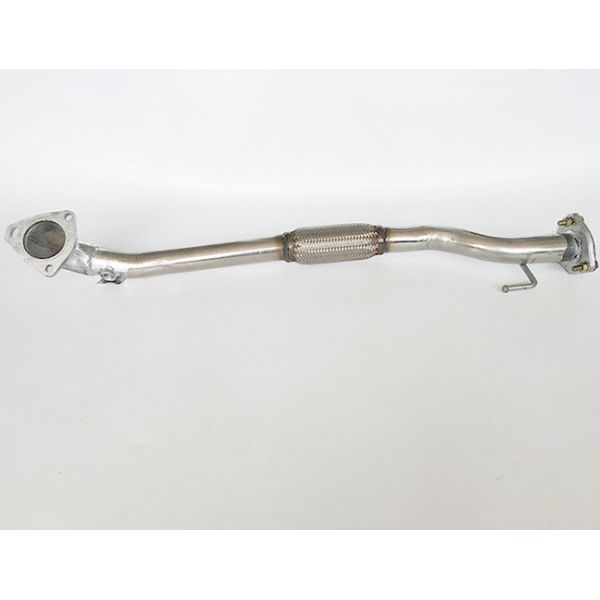

Application:

1.0mm 2

Exhaust Flexible Pipe Types :

1.0mm 2

Specifications of Flex exhaust pipe:

Nominal Inside Diameter I.D.

Overall Length
O/L

 Nominal Inside Diameter I.D.

Overall Length
O/L

 Nominal Inside Diameter I.D.

Overall Length
O/L

1-3/4(45mm)

 4”(102mm) 2-1/2”(63.5) 4”(102mm) 43mm 120mm
6”(152mm) 6”(152mm) 165mm
8”(203mm) 8”(203mm) 180mm
9”(230mm) 9”(230mm) 50mm 120mm
10”(254mm) 10”(254mm) 165mm
11”(280mm) 11”(280mm) 54.5mm 120mm
12”(305mm) 12”(305mm) 150mm
2”(51mm) 4”(102mm) 3”(76.2mm) 4”(102mm) 180mm
6”(152mm) 6”(152mm) 200mm
8”(203mm) 8”(203mm) 250mm
9”(230mm) 9”(230mm) 60mm 160mm
10”(254mm) 10”(254mm) 200mm
11”(280mm) 11”(280mm) 240mm
12”(305mm) 12”(305mm) 65mm 150mm
2-1/4”(57.2mm) 4”(102mm) 3-1/2”(89mm) 6”(152mm) 200mm
6”(152mm) 8”(203mm) 70mm 100mm
8”(203mm) 9”(230mm) 120mm
9”(230mm) 10”(254mm) 150mm
10”(254mm) 12”(305mm) 200mm
11”(280mm)

Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125...
12”(305mm)

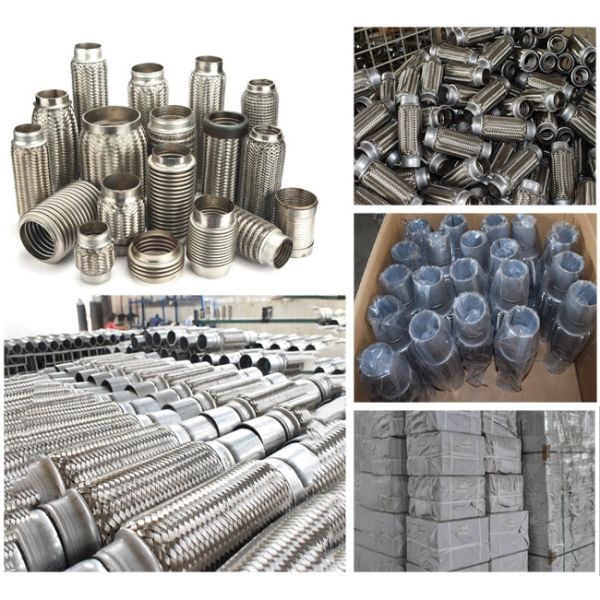

Warehouse / Packing:

Packaging :

box / carton / woven bag into wooden pallet or customize .

Shipping :

1. DHL / FEDEX / EMS / UPS / TNT to door .

2. Logistics ( to city ) .

3. Air transportation ( to airport ) .

4. Sea transportation ( to seaport ) .

1.0mm 2
