Double Layers 6 Inch 1.5mm Stainless Steel Exhaust Flex Pipe
Double Layers 6 Inch 1.5mm Stainless Steel Exhaust Flex Pipe
Double Layers 6 Inch 1.5mm Stainless Steel Exhaust Flex Pipe
Double Layers 6 Inch 1.5mm Stainless Steel Exhaust Flex Pipe
Double Layers 6 Inch 1.5mm Stainless Steel Exhaust Flex Pipe
Double Layers 6 Inch 1.5mm Stainless Steel Exhaust Flex Pipe
Double Layers 6 Inch 1.5mm Stainless Steel Exhaust Flex Pipe
Double Layers 6 Inch 1.5mm Stainless Steel Exhaust Flex Pipe
Specifications
Brand Name :
YP
Model Number :
YP13404-YP70200
Place of Origin :
Hebei , China
MOQ :
1pc
Price :
USD$ 1.5--8.99 /PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000PCS/MONTH
Delivery Time :
10-14 DAYS
Packaging Details :
carton
Material :
304 Stainless Steel
Application :
Vehicle Engine Exhaust System
Fitment :
Universal
Name :
Double Layers Exhaust Flexible Pipe with Inner Braid
Inlet/Outlet :
1.5"-6"
Type :
Inner Braided
Function :
Decrease engine noise and vibration
Cap :
Stainless or aluminized
Description

Double Layers Exhaust Flexible Pipe with Inner Braid

Product Description:

Tube made of 304ss ;

Wall thickness:1.5mm;

Flange:201ss,10mm thick;

TIG welding,the welding deeper and stronger,never crack and break;

Mirror polished /brush/non-polish optional;

No burr inside, much smooth;

Very Easy to install, clean and maintenance;

Each exhaust pipe is inspected strictly before shippment.

This one is the type with inner braided liner, much stronger for midium use, more flexibility.


Sizes of exhaust pipe at YP:

Nominal Inside Diameter I.D.

Overall Length

O/L

 Nominal Inside Diameter I.D.

Overall Length

O/L

 Nominal Inside Diameter I.D.

Overall Length

O/L
1-3/4(45mm) 4”(102mm) 2-1/2”(63.5) 4”(102mm) 43mm 120mm
6”(152mm) 6”(152mm) 165mm
8”(203mm) 8”(203mm) 180mm
9”(230mm) 9”(230mm) 50mm 120mm
10”(254mm) 10”(254mm) 165mm
11”(280mm) 11”(280mm) 54.5mm 120mm
12”(305mm) 12”(305mm) 150mm
2”(51mm) 4”(102mm) 3”(76.2mm) 4”(102mm) 180mm
6”(152mm) 6”(152mm) 200mm
8”(203mm) 8”(203mm) 250mm
9”(230mm) 9”(230mm) 60mm 160mm
10”(254mm) 10”(254mm) 200mm
11”(280mm) 11”(280mm) 240mm
12”(305mm) 12”(305mm) 65mm 150mm
2-1/4”(57.2mm) 4”(102mm) 3-1/2”(89mm) 6”(152mm) 200mm
6”(152mm) 8”(203mm) 70mm 100mm
8”(203mm) 9”(230mm) 120mm
9”(230mm) 10”(254mm) 150mm
10”(254mm) 12”(305mm) 200mm
11”(280mm)

Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125...
12”(305mm)

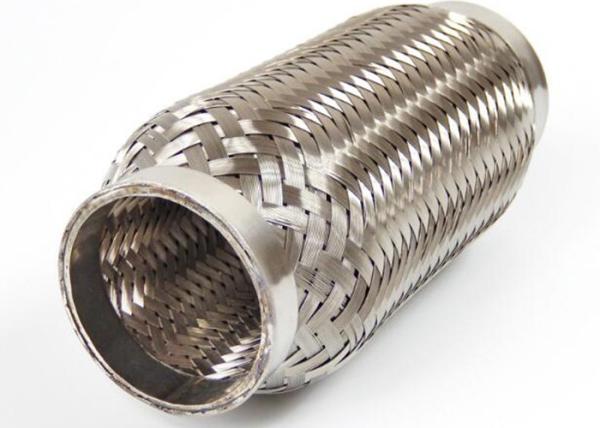

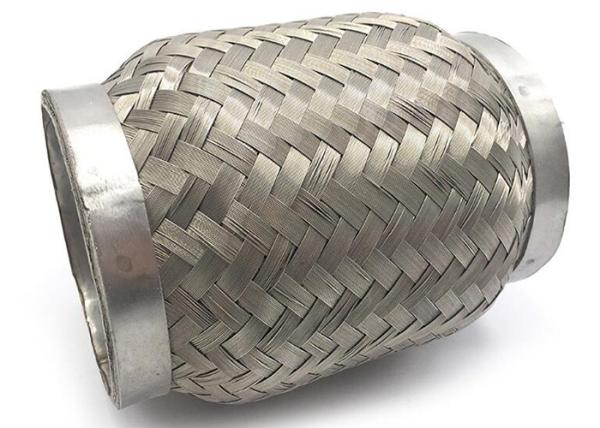

Detailed Pictures and Drawing:

Double Layers 6 Inch 1.5mm Stainless Steel Exhaust Flex Pipe

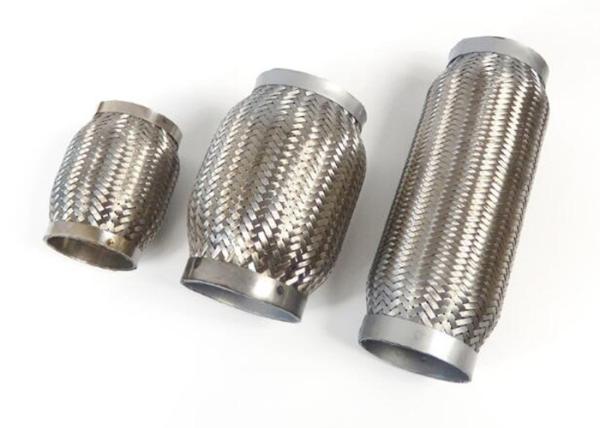

More Types:

Double Layers 6 Inch 1.5mm Stainless Steel Exhaust Flex Pipe

Double Layers 6 Inch 1.5mm Stainless Steel Exhaust Flex Pipe

Main product:

1. Exhaust system .performance exhaust pipe .

2. Catback , manifold , resonator , catalytic converter .

3. universal exhaust muffler / silencer .

4. Dedicated / universal muffler tip .

5. Silencer stuff / exhast valve cutout / flexible pipe / flange / hanger rubber / fireproof belt .

6. Various Exhaust Clamps
