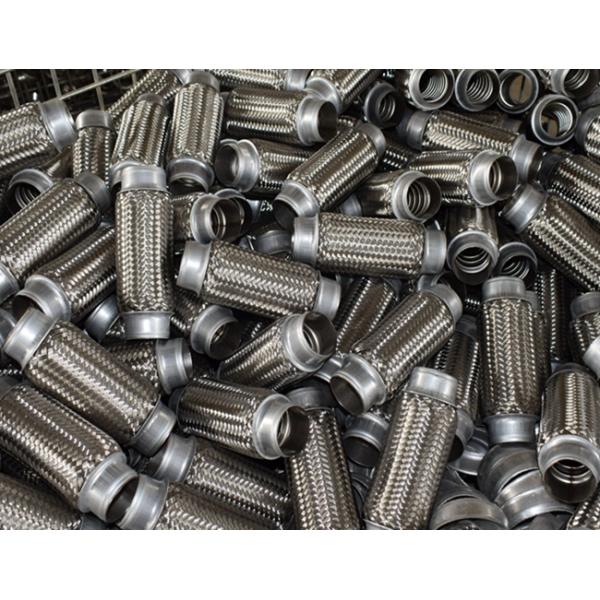

Stainless Steel Truck Connector Exhaust Bellows Flex Pipe , Flexible Exhaust Muffler Pipe
Product Introduction:
Stainless steel exhaust flexible pipe is a common part for engine exhaust system . Such flex pipes are provided in a variety of lengths, diameters, and many styles.
For example, the common one is a flex pipe with four layers. The outer and inner layers are made from the weaving stainless wire. Between these layers, there is a double layer bellow, also made of stainless steel. Standard Caps with connectors are installed on both sides of the exhaust flex pipe. They securely fasten all four layers and allow them to install this element using clamps or by the "pipe-to-pipe" welding method and accurately match the right size.
Many types of stainless exhaust flex pipe available at us, pls be free to tell us your requirement.

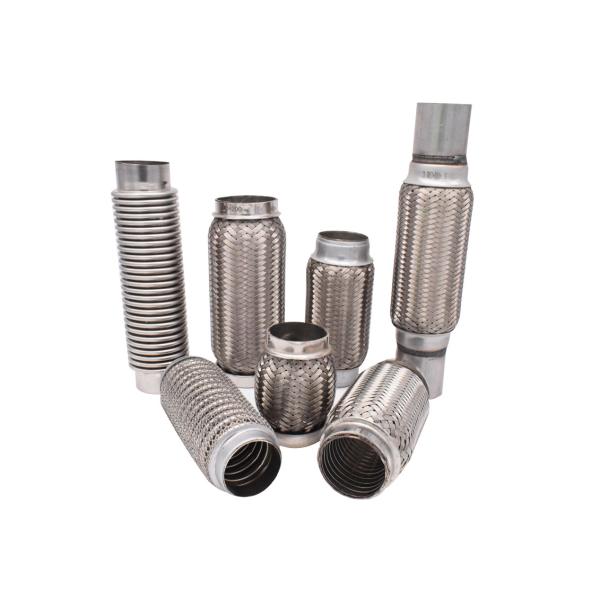

Following common 5 types of such flexible pipe :
1.Exhaust Flexible Pipe I
an outer braid + an inner bellow, such type is for light use.
2. Exhaust Flexible Pipe II
an outer braid + bellows in the middle + an inner braid, such type offers more flexibility, for medium use, has longer life
3. Exhaust Flexible Pipe III
an outer braid + a interlock tube with bellows in the middle, for heavy use. The interlock pipe is used to reduce vibration and noise, and make the pipe most longest life.
4. Exhaust Flexible bellow IV (bellow)
5. Exhaust Flexible Pipe V
Braided Flexible pipe with welded nipples
Features:
Product Name | Stainless Steel Exhaust Muffler Flexible Pipe |
Material | Stainless Steel 409 / 304 / 316, Aluminum |
Quality | Genuine / OEM |
Packing | Bubble bag, Wooden Case, Neutral packing or negotiated |
MOQ | 1 pc |
Size / Inner Diameter | 1.5"-6" (1.5” / 1.75” / 2.0” / 2.25” / 2.5” / 3.0” / 3.5” / 4.0” ) |
Length | 4” - 10” |
Wall Thickness | 1.0mm , 1.2mm |
Color | Silver |
Price Term | EXW , FOB , CIF , C&F |
Car Model | Universal |
Application / Usage | Muffler , Car Exhaust System , Turbos , Waste-gates , Blow-off Valves |
Delivery time | 5 days if stock , 10-20 if no stock as per quantity |
Advantage |
|
Warranty | 6 months |
Sample | Available |
