Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mm
Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mm
Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mm
Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mm
Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mm
Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mm
Specifications
Brand Name :
YP
Model Number :
YPC160
Certification :
ISO
Place of Origin :
Hebei
MOQ :
1
Price :
$2.2
Payment Terms :
L/C T/T WESTERN UNION
Supply Ability :
10000 Pieces Per Month
Delivery Time :
5-8 days if stocks available
Packaging Details :
Film bag + carton
Product name :
Dust Collection Pipe Clamp Ring Carbon Steel Quick Release Duct Clamps 160mm
Usage :
Pipe connection / Duct connect
Materials :
Carbon steel or Stainless steel 304
Surface treatment :
Electro-galvanizing / hot dipping / Polished
Inside diameter :
160mm. Other sizes please check our specification list
Lining gasket :
Without (with gasket as option)
Application :
Circular duct, galvanized flange pipe, round clip duct etc
Package :
Carton or wooden case
Market :
European market, Oceania market, Southeast Asia.
Relative product :
Clamp together modular ducting like duct length, elbow, blast gate, Trousers, T piece etc.
Unit price :
$2.2
Description

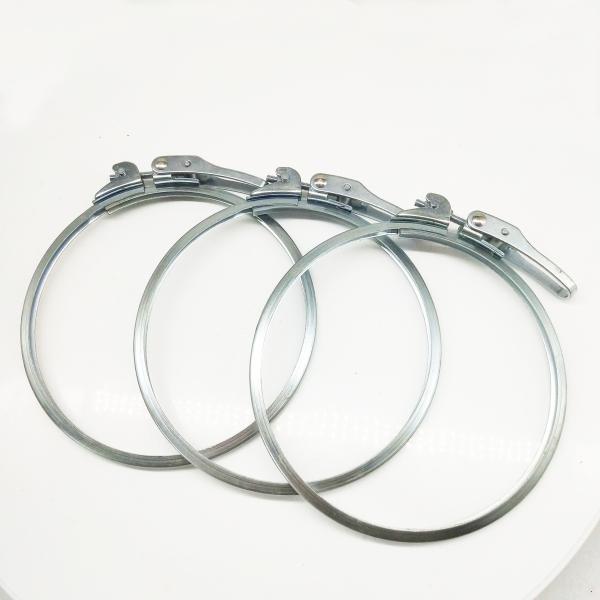

Dust Collection Pipe Clamp Ring Carbon Steel Quick Release Duct Clamps 160mm

As the important role of modular ducting for dust collection system, the slim clamping rings consist of galvanized carbon steel or stainless steel and connect pipe segments or pipe components with screws or lever fasteners. They are suitable for diameters ranging from 80mm to 600mm duct. Profiles could be manufactured according to specification provided by customers.

Features of slim pull ring

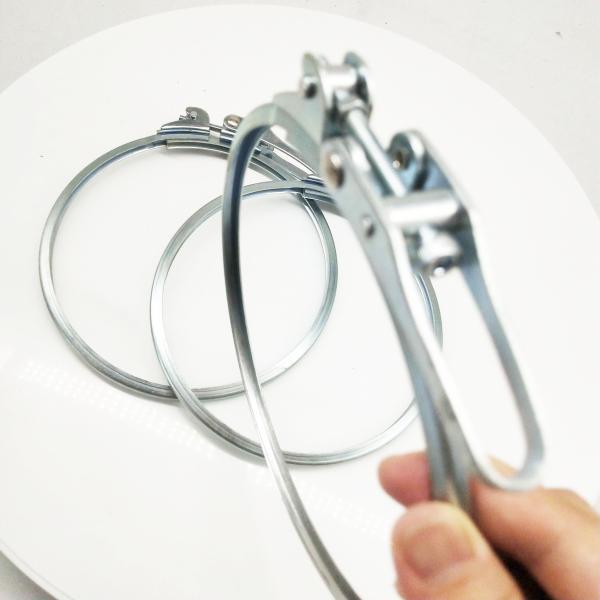

  • With lever fasteners for quick lock and release, which save much working time
  • Good Performance but low cost

Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mm

Specification of slim pull ring:

Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mmOEM structures are available as request

ɸDiameter mm Product code A mm H mm Thickness mm
80 BMG80 8 6.37 1
100 BMG100 8 6.37 1
120 BMG120 8 6.37 1
125 BMG125 8 6.37 1
140 BMG140 8 6.37 1
150 BMG150 8 6.37 1
160 BMG160 8 6.37 1
180 BMG180 8 6.37 1
200 BMG200 8 6.37 1
225 BMG225 8 6.37 1
250 BMG250 8 6.37 1
275 BMG275 8 6.37 1
300 BMG300 8 6.37 1
315 BMG315 8 6.37 1.2
350 BMG350 8 6.37 1.2
400 BMG400 8 6.37 1.2
450 BMG450 8 6.37 1.2
500 BMG500 8 6.37 1.2
550 BMG550 8 6.37 1.2
600 BMG600 8 6.37 1.2

Application of quick release clamp:

Dust collection ductwork

Industrial ducting

Oil mist & cutting fluid applications

High vacuum pipe fittings

Mild steel duct

Woodworking

Coofee roasting

Concrete & cement production

Grain processing

Polymer and plastic processing

​​

Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mm

Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mm

Packaging and delivery time of lever clamp:

For multi-sizes, we choose wooden case to pack clamps. Smaller sizes in bigger sizes to save space.

For unitary size, we use carton box.

5pcs per bundle. Tidely put in crates layer by layer

Lead time: in 7 days if stocks available. otherwise against the order quantity.

Relative products from us:

Quick lock modular ductwork is a complete ventilation system of galvanised ducts and fittings with diameter range from Ø 80 to Ø 600 mm with rolled edge for industrial dust extraction systems. Industrial dust extraction ducting is used in welding industry, metalworking industry, woodworking industry, energy industry, ceramic, food and pharmaceutical industry. Installation air-tightness is crucial for this type of systems, since any kind of leakage may cause dust get outside of the ductwork and reduce dust extraction efficiency.

Quick lock modular ducting system consists of butt-welded pipes, bends, tees, reducers, adapters and sliding dampers as well as the most important element namely - quick lock and release clamps which ensure strong and airtight connection of components. The whole modular system has rolled-up lip at 90-degree angle, about 5-7 mm height.

Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mm

Contact us for details:

Please contact Lily zhang for details. I am working here from 8:00 am to 5:00 pm on Monday~Friday.

Collection Pipe Hot Dipping Quick Release Duct Clamps Ring Carbon Steel 160mm
