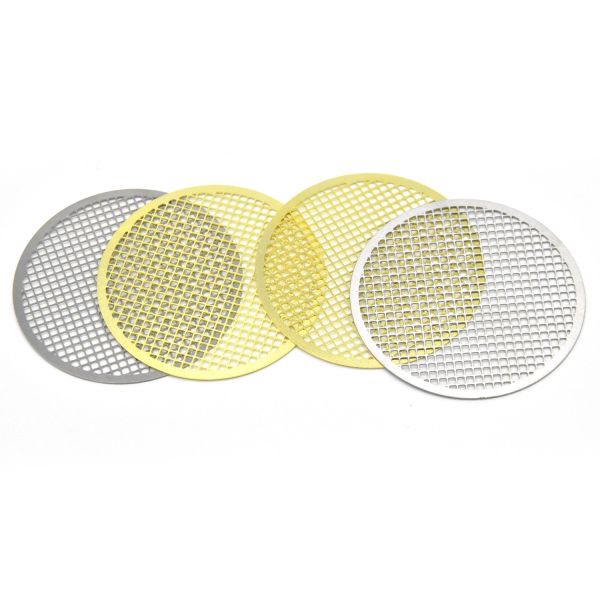

316L Woven Weave Wire Mesh Discs
316L Woven Weave Wire Mesh Discs
316L Woven Weave Wire Mesh Discs
316L Woven Weave Wire Mesh Discs
316L Woven Weave Wire Mesh Discs
316L Woven Weave Wire Mesh Discs
316L Woven Weave Wire Mesh Discs
316L Woven Weave Wire Mesh Discs
Specifications
Brand Name :
KS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500pc/week
Delivery Time :
5-8 weeks
Packaging Details :
pp bag
Product name :
Stainless Steel Mesh Filter Discs
Type :
Oil Filter,Air Filter,Liquid Filter,Filter Disc
Material :
stainless steel,316L,304 316 316L,etc
Application :
Solid Filter,Liquid Filter and Air Filter
Usage :
Liquid Filter,Air Filter,air / oil / water filter
Weave style :
Plain Weave,Dutch Weave,Twill Weave
Hole shape :
Square,Round
Technique :
Weave,Woven,Polishing
Feature :
Heat Resistance,Eco-Friendly
Mesh count :
1-200mesh
Color :
Silver
Shape :
Customers' Request,Round Discs,other special shapes
Description

Customize Diameter Metal Edge 304/316 Stainless Steel Mesh Filter Discs

Stainless Steel Mesh Filter Discs Product Description

Product Name Customize Diameter Metal Edge 304/316 Stainless Steel Mesh Filter Discs
Material Stainless steel
Color Sliver
Shape round/ square/oval/customize as you need
Type Wire mesh
MOQ 100pcs

Wire mesh filter is one of the most versatile media in the field of surface filtrations. The micron-leveled apertures are uniformly and precisely distributed, giving mesh filter greater accuracy, and can be used to filter the smallest particles in the world including a multitude of industries and applications like plastic & rubber reclamation.

Our metal woven cloth filter is woven by different weave types and materials to suit the market requirements. The common weave types include plain dutch & twill dutch. The former is designed for high flow and the latter for fine filtration. Apart from these two types, custom types are available such as reverse dutch weave & twill weave.

Stainless steel filter mesh is the most popular item for its good properties in resisting high temperatures, corrosions and deformation. Other materials are possible including galvanised steel, copper and other alloy steels.

Custom Wire Mesh Filter is supplied for your special requirements like special material, weave types, dimensions and shapes. Bespoke mesh filter is one of our advantages in servicing our clients. Just email us your inquiry, prompt reply will be received.

Stainless Steel Mesh Filter Discs Features

The benefits of filter disc is high quality and filtration capacity, precise fitting filter elements, optimum cost-performance ratio, constant quality control during production etc. It is widely used in melt filtration

316L Woven Weave Wire Mesh Discs316L Woven Weave Wire Mesh Discs

Stainless Steel Mesh Filter Discs Application

It is suitable for distillation, absorption, evaporation, filtration and other processes in petroleum, oil refining, chemical, light industry, medicine, metallurgy, machinery, shipbuilding, automobile tractors and other industries, eliminating droplets and liquid droplets entrained in steam or gas. And as an air filter on a car tractor.

Wire Mesh Specification Guide

Meshes per

linear inch

 Wire diameter Width of opening

Open area

percent

 Weight-Pounds per 100 Sq. ft.
Inches mm Inches mm stainlesssteel Pure copper 80-20Brass
1x1 0.157 4 0.84 21.4 71 110.97 46.6 45.4
3x3 0.079 2 0.25 6.4 58 82.45 64.3 62.7
4x4 0.063 1.6 0.187 4.75 56 104.8 118.8 115.8
5x5 0.055 1.4 0.14 3.68 52 68.25 62.2 60.7
8x8 0.043 1.1 0.08 2.08 42 66.83 46.6 45.4
10x10 0.02 0.51 0.08 2.03 64 26.1 29.6 28.8
12x12 0.023 0.584 0.06 1.52 51.8 42.2 47.8 46.6
14x14 0.023 0.584 0.048 1.22 45.2 49.8 56.4 55
16x16 0.018 0.457 0.0445 1.13 50.7 34.5 39.1 38.1
20x20 0.016 0.406 0.034 0.86 46.2 34.4 39 38
30x30 0.012 0.305 0.0213 0.54 40.8 29.4 33.3 32.5
40x40 0.01 0.254 0.015 0.38 36 27.6 31.3 30.5
50x50 0.008 0.203 0.012 0.31 36 22.1 25.1 24.4
60x60 0.0075 0.191 0.0092 0.23 30.5 23.7 26.9 26.2
80x80 0.0055 0.14 0.007 0.18 31.4 16.9 19.2 18.7
100x100 0.0045 0.114 0.0055 0.14 30.3 14.2 16.1 15.7
100x100 0.004 0.102 0.006 0.15 36 11 12.5 12.2
100x100 0.0035 0.089 0.0065 0.17 42.3 8.3 9.4 9.2
110x110 0.004 0.1016 0.0051 0.1295 30.7 12.4 14.1 13.7
120x120 0.0037 0.094 0.0046 0.1168 30.7 11.6 13.1 12.8
150x150 0.0026 0.066 0.0041 0.1041 37.4 7.1 8 7.8
160x160 0.0025 0.0635 0.0038 0.0965 36.4 5.94 - -
180x180 0.0023 0.0584 0.0033 0.0838 34.7 6.7 7.6 7.4
200x200 0.0021 0.0533 0.0029 0.0737 33.6 6.2 7 6.9
250x250 0.0016 0.0406 0.0024 0.061 36 4.4 5 4.9
270x270 0.0016 0.0406 0.0021 0.0533 32.2 4.7 5.3 -
300x300 0.0015 0.0381 0.0018 0.0457 29.7 3.04 - -
325x325 0.0014 0.0356 0.0017 0.0432 30 4.4 5 -
400x400 0.001 0.0254 0.0015 0.037 36 3.3 3.7 -
500x500 0.001 0.0254 0.001 0.0254 25 3.8 4.3 -
635x635 0.0008 0.0203 0.0008 0.0203 25 2.63
