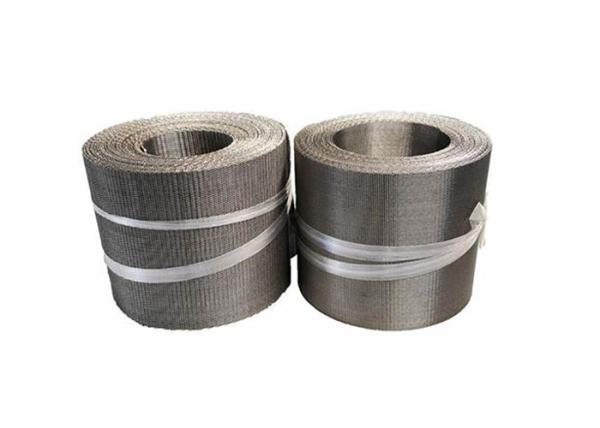

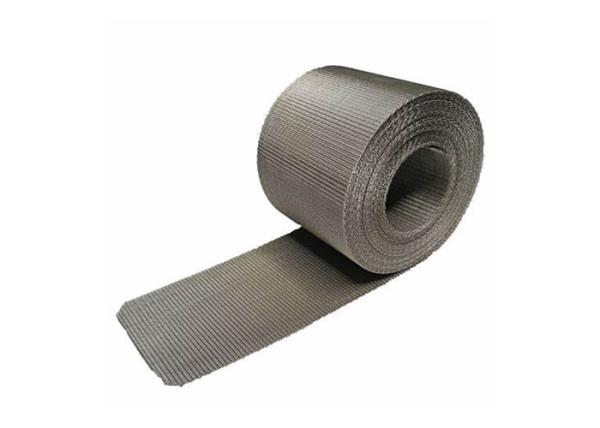

200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Belt For Plastic Extrusion Dutch Wire Mesh

Dutch Woven Wire Mesh Technical specifications:

Stainless steel dutch wire mesh is also known as stainless steel dutch woven wire cloth and stainless steel filter cloth. It is usually made of mild steel wire and stainless steel wire.Stainless steel dutch wire mesh is extensively utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units ,due to its stable and fine filtration capability.

Type Of Weave

Plain Dutch Weave: Woven as a plain weave, but with the warp wires of greater diameter than the weft wires. The weft wires are very close together so that a so-called zero-mesh structure is formed; while the warp wires are thicker.

Dutch Twill Weave: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

Reverse Dutch Weave: Reverse Dutch Weave. The same weave as Dutch except the warp & weft wires are reversed, i. E the warp wires have a smaller diameter than the weft wires. The larger weft wires are woven closer together than would usually be seen in a Dutch weave.

Dutch Woven Wire Mesh Features

• Good permenablility and high strength.The raw material should be chosen according to different environment and applications.
• Acid,high temperature resistance,excellent capability for rub and tensil.
• Stable filtering effect,filter layer,easy cleaning.

Application of Dutch Woven Wire Mesh

Widely used in mining,chemical,food,oil,medicine,machinery and other industries,mainly used in gas,liquid filtration and other media separation,used in acid and alkali environment screening and filtration,electroplating industry to do acid cleaning network.

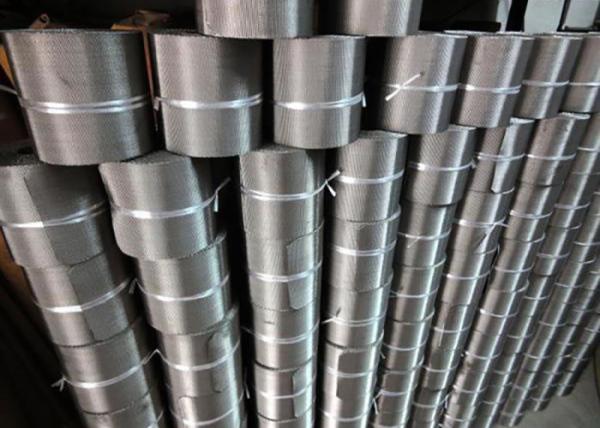

Our Factory
