SS321 310S Stainless Steel Welded Pipes Ss Tube Welding 610MM
SS321 310S Stainless Steel Welded Pipes Ss Tube Welding 610MM
Specifications
Brand Name :
Yuhao
Model Number :
10-610MM
Certification :
ISO,TS,PED,CE,TUV
Place of Origin :
CHINA
MOQ :
100kgs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000tons/per month
Delivery Time :
3-10days
Packaging Details :
Standard sea worth bundles,Standard Plywood cases
Material :
304、304L、316、316L、321、310S
OD :
3mm-3000mm
WT :
0.5mm-50mm
Length :
5800mm,6000mm,12000mm or as requested
Surface :
Polished 180G/240G/320G/600G
Price Terms :
EXW,FOB,CIF and so on
Package :
Packed in sea-worth bundles or Plywood cases
Standard :
ASTM, AISI, GB, JIS, ANSI
Applications :
Manufacturing, Mining, Shipbuilding, Construction, Pulp & Paper, Food, Medical Technology
Corrosion Resistance :
Acid Resistance, Alkali Resistance, Oxidation Resistance, Seawater Corrosion Resistance
Description

304,304L,316,316L,321,310S Stainless Steel Welded Tube Pipe For Offshore Industry

►Products Description

Stainless steel welded tubes are versatile and cost-effective pipes manufactured by welding rolled stainless steel strips or plates. Known for their strength, corrosion resistance, and durability, these tubes are widely used in industries such as construction, automotive, chemical processing, and food production. They are available in various grades, including 304, 316, and 201, to suit different environmental and mechanical requirements. Welded tubes are produced through processes like TIG (Tungsten Inert Gas) or laser welding, ensuring precise seams and consistent quality. They are ideal for applications requiring structural integrity and resistance to harsh conditions, offering a reliable and economical solution for both industrial and commercial needs.

►Pipes Size

ASTM A312/A778(B36.19)

Nominal Outside Diameter OD(mm) Thickness(mm)
NPS INCH O.D 5S 10S 40S
8 1/4'' 13.72 1.24 1.65 2.24
10 3/8'' 17.15 1.24 1.65 2.31
15 1/2'' 21.34 1.65 2.11 2.77
20 3/4'' 26.67 1.65 2.11 2.87
25 1'' 33.4 1.65 2.77 3.38
32 1-1/4'' 42.16 1.65 2.77 3.56
40 1-1/2'' 48.26 1.65 2.77 3.68
50 2'' 60.33 1.65 2.77 3.91
65 2-1/2'' 73.03 2.11 3.05 5.16
80 3'' 88.9 2.11 3.05 5.49
90 3-1/2'' 101.6 2.11 3.05 5.74
100 4'' 114.3 2.11 3.05 6.02
125 5'' 141.3 2.77 3.4 6.55
150 6'' 168.28 2.77 3.4 7.11
200 8'' 219.08 2.77 3.76 8.18
250 10'' 273.05 3.4 4.19 9.27
300 12'' 323.85 3.96 4.57 9.53

JIS G3459

Nominal Outside Diameter OD(mm) Thickness(mm)
NPS INCH O.D 5S 10S 20S 40S
8 1/4'' 13.8 1.2 1.65 2.0 2.2
10 3/8'' 17.3 1.2 1.65 2.0 2.3
15 1/2'' 21.7 1.65 2.1 2.5 2.8
20 3/4'' 27.2 1.65 2.1 2.5 2.9
25 1'' 34 1.65 2.8 3.0 3.4
32 1-1/4'' 42.7 1.65 2.8 3.0 3.6
40 1-1/2'' 48.6 1.65 2.8 3.0 3.7
50 2'' 60.5 1.65 2.8 3.5 3.9
65 2-1/2'' 76.3 2.1 3.0 3.5 5.2
80 3'' 89.1 2.1 3.0 4.0 5.5
90 3-1/2'' 101.6 2.1 3.0 4.0 5.7
100 4'' 114.3 2.1 3.0 4.0 6.0
125 5'' 139.8 2.8 3.4 5.0 6.6
150 6'' 165.2 2.8 3.4 5.0 7.1
200 8'' 216.3 2.8 4.0 6.5 8.2
250 10'' 267.4 3.4 4.0 6.5 9.3
300 12'' 318.5 3.4 4.5 6.5 10.3

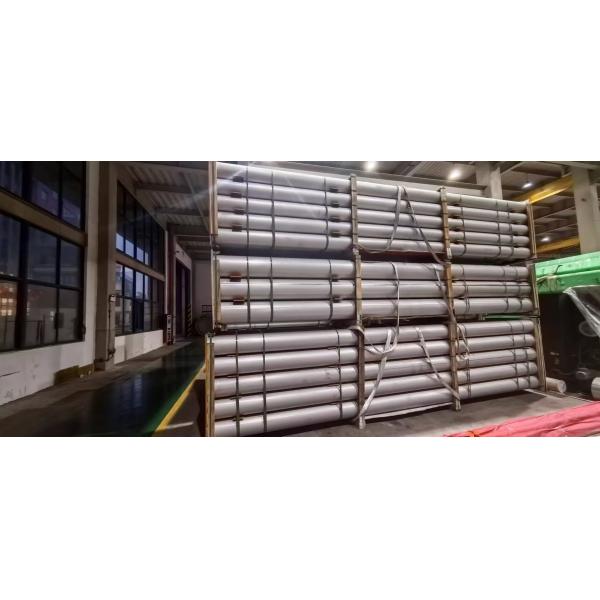

►Product Shoot

SS321 310S Stainless Steel Welded Pipes Ss Tube Welding 610MMSS321 310S Stainless Steel Welded Pipes Ss Tube Welding 610MMSS321 310S Stainless Steel Welded Pipes Ss Tube Welding 610MM

►FAQ

Q1: Can you supply what's the service?

A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...

Q2: Can you provide the free samples?

A: We can supply the free samples but the sample express freight need paid by yourside.

Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q4: What about your delivery time if we placed order?

A: We have large of ready stock,in general we can delivery within 2-10days.

Q5: Which payment terms you can accept?

A: We can accept TT,LC,DP,DA,Western Union or Negotiation.

304,304L,316,316L,321,310S Stainless Steel Welded Tube Pipe For High Temperature Service
