6M 304 Stainless Steel Pipe Specifications SS316L SS310S 180# 240# 320# Ss Seamless Tubing
6M 304 Stainless Steel Pipe Specifications SS316L SS310S 180# 240# 320# Ss Seamless Tubing
6M 304 Stainless Steel Pipe Specifications SS316L SS310S 180# 240# 320# Ss Seamless Tubing
6M 304 Stainless Steel Pipe Specifications SS316L SS310S 180# 240# 320# Ss Seamless Tubing
6M 304 Stainless Steel Pipe Specifications SS316L SS310S 180# 240# 320# Ss Seamless Tubing
6M 304 Stainless Steel Pipe Specifications SS316L SS310S 180# 240# 320# Ss Seamless Tubing
Specifications
Brand Name :
Yuhao
Model Number :
10-610MM
Certification :
ISO,TS,PED,CE,TUV
Place of Origin :
CHINA
MOQ :
100kgs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000tons/per month
Delivery Time :
3-10days
Packaging Details :
Standard sea worth bundles,Standard Plywood cases
Material :
TP201,TP304,TP304L,TP316L,TP317L,TP321,TP310S,TP347,TP904L,2205
OD :
3mm-3000mm
WT :
0.5mm-50mm
Length :
5800mm,6000mm,12000mm or as requested
Surface :
Polished 180G/240G/320G/600G
Price Terms :
EXW,FOB,CIF and so on
Package :
Packed in sea-worth bundles or Plywood cases
Standard :
ASTM A312,A778,A358,EN 10217-7,API 5LC,JIS G3459、G3468
Applications :
Chemical, Petroleum, Power, Gas, Metallurgy, Shipbuilding, Construction, Automative, etc.
Description

Stainless Steel Welded Pipes SS304 SS316L SS310S Polished 180# 240# 320#

►Products Description

Our AISI 304/316 stainless steel welded pipes combine exceptional corrosion resistance, high strength, and durability for demanding industrial applications. Available in sizes from 1/8" to 48" OD with customizable thickness (0.5mm–1200mm), they comply with ASTM/ASME standards and are ISO-certified. Ideal for petrochemical, construction, food processing, and HVAC systems, these pipes feature precision welding technology for leak-proof performance. Options include polished surfaces (180–600 grit) or anti-rust coatings. We offer OEM/ODM services, free sample testing, and flexible MOQs. Orders ship within 10–20 days via FOB/CIF terms, supported by T/T, L/C, or PayPal. Contact us for tailored solutions and competitive bulk pricing.

►Pipes Size

ASTM A312/A778(B36.19)

Nominal Outside Diameter OD(mm) Thickness(mm)
NPS INCH O.D 5S 10S 40S
8 1/4'' 13.72 1.24 1.65 2.24
10 3/8'' 17.15 1.24 1.65 2.31
15 1/2'' 21.34 1.65 2.11 2.77
20 3/4'' 26.67 1.65 2.11 2.87
25 1'' 33.4 1.65 2.77 3.38
32 1-1/4'' 42.16 1.65 2.77 3.56
40 1-1/2'' 48.26 1.65 2.77 3.68
50 2'' 60.33 1.65 2.77 3.91
65 2-1/2'' 73.03 2.11 3.05 5.16
80 3'' 88.9 2.11 3.05 5.49
90 3-1/2'' 101.6 2.11 3.05 5.74
100 4'' 114.3 2.11 3.05 6.02
125 5'' 141.3 2.77 3.4 6.55
150 6'' 168.28 2.77 3.4 7.11
200 8'' 219.08 2.77 3.76 8.18
250 10'' 273.05 3.4 4.19 9.27
300 12'' 323.85 3.96 4.57 9.53

JIS G3459

Nominal Outside Diameter OD(mm) Thickness(mm)
NPS INCH O.D 5S 10S 20S 40S
8 1/4'' 13.8 1.2 1.65 2.0 2.2
10 3/8'' 17.3 1.2 1.65 2.0 2.3
15 1/2'' 21.7 1.65 2.1 2.5 2.8
20 3/4'' 27.2 1.65 2.1 2.5 2.9
25 1'' 34 1.65 2.8 3.0 3.4
32 1-1/4'' 42.7 1.65 2.8 3.0 3.6
40 1-1/2'' 48.6 1.65 2.8 3.0 3.7
50 2'' 60.5 1.65 2.8 3.5 3.9
65 2-1/2'' 76.3 2.1 3.0 3.5 5.2
80 3'' 89.1 2.1 3.0 4.0 5.5
90 3-1/2'' 101.6 2.1 3.0 4.0 5.7
100 4'' 114.3 2.1 3.0 4.0 6.0
125 5'' 139.8 2.8 3.4 5.0 6.6
150 6'' 165.2 2.8 3.4 5.0 7.1
200 8'' 216.3 2.8 4.0 6.5 8.2
250 10'' 267.4 3.4 4.0 6.5 9.3
300 12'' 318.5 3.4 4.5 6.5 10.3

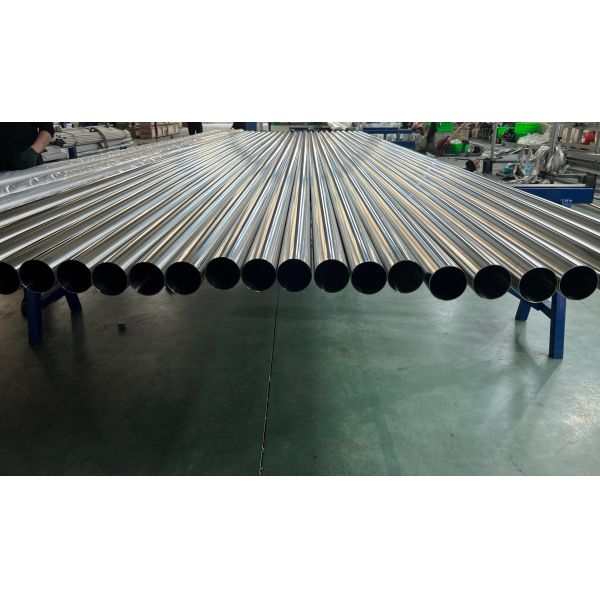

►Product Shoot

6M 304 Stainless Steel Pipe Specifications SS316L SS310S 180# 240# 320# Ss Seamless Tubing

6M 304 Stainless Steel Pipe Specifications SS316L SS310S 180# 240# 320# Ss Seamless Tubing

6M 304 Stainless Steel Pipe Specifications SS316L SS310S 180# 240# 320# Ss Seamless Tubing

►FAQ

Q1: How is the quality?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q2: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q4: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
