ASTM Plate 304 306 Stainless Steel Flanges Flat Super Duplex Steel Flanges
ASTM Plate 304 306 Stainless Steel Flanges Flat Super Duplex Steel Flanges
Specifications
Brand Name :
Yuhao
Model Number :
flanges
Certification :
ISO, API, BV, CE ...
Place of Origin :
China
MOQ :
100KGS
Price :
Negotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000tons/per month
Delivery Time :
2-10 work days
Packaging Details :
They are usually packed in conventional export wooden cases.
Material :
304, 304L, 316, 316L
Application :
Connection, Decoration, oil and gas, Automative, Shipbuilding, Construction, Petrochemical, Chemical
Standard :
ASTM, ANSI, GB, JIS, DIN
Shape :
Raising face, Flat face, Tongue face
Package :
Standard Seaworthy Packagel, wooden cases...
Connection :
Welding
Pressure :
Class150/300/600/9001500/2500
Type :
Pipe Fitting
Description

Plate Flanges Dimensions 304 306 Flat Plain Welding ASTM, ANSI, GB, JIS, DIN Stainless Steel Flange

►Product Description

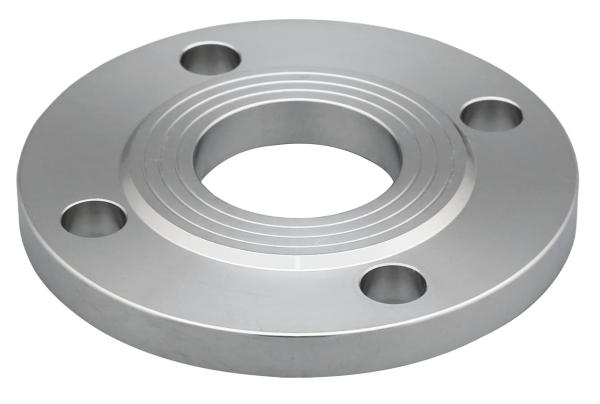

Plate Flanges in 304/316 stainless steel are flat, plain welding flanges designed for seamless integration into piping systems. Compliant with ASTM, ANSI, GB, JIS, and DIN standards, they ensure global compatibility and high performance. These flanges offer excellent corrosion resistance, durability, and ease of installation, making them ideal for industrial applications in chemical, oil, gas, and water systems. Available in various dimensions to meet diverse project requirements.

►Product Size

DN Pipe OD Connection Size Flange Thickness(mm)
C		 Flagne ID
A B Flange OD Bolt Hole Circle Diameter A B
10 17.2 14 90 60 14 18 15
15 21.3 18 95 65 14 22.5 19
20 26.9 25 105 75 16 27.5 26
25 33.7 32 115 85 16 34.5 33
32 42.4 38 140 100 18 43.5 39
40 48.3 45 150 110 18 49.5 46
50 60.3 57 165 125 19 61.5 59
65 76.1 76 185 145 20 77.5 78
80 88.9 89 200 160 20 90.5 91
100 114.3 108 220 180 22 116 110
125 139.7 133 250 210 22 143.5 135
150 168.3 159 285 240 24 170.5 161
200 219.1 219 340 295 24 221.5 222
250 273 273 395 350 26 276.5 276
300 323.9 325 445 400 26 328 328
350 355.6 377 505 460 28 360 381
400 406.4 426 565 515 32 411 430
450 457 480 615 565 36 462 485
500 508 530 670 620 38 513.5 535
600 610 630 780 725 42 616.5 636

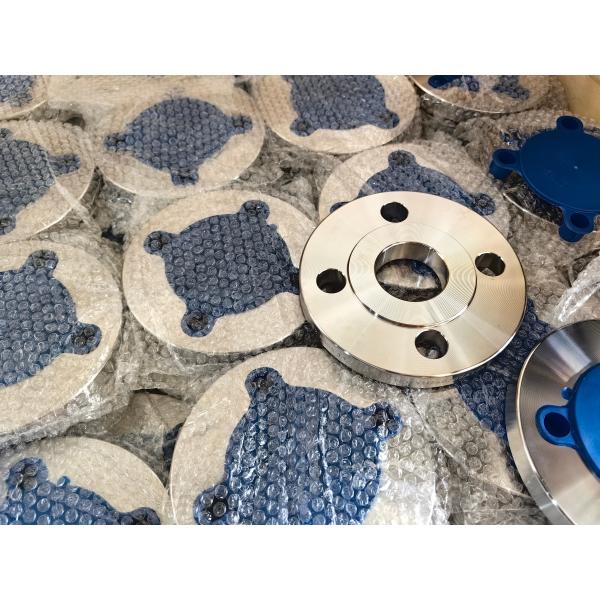

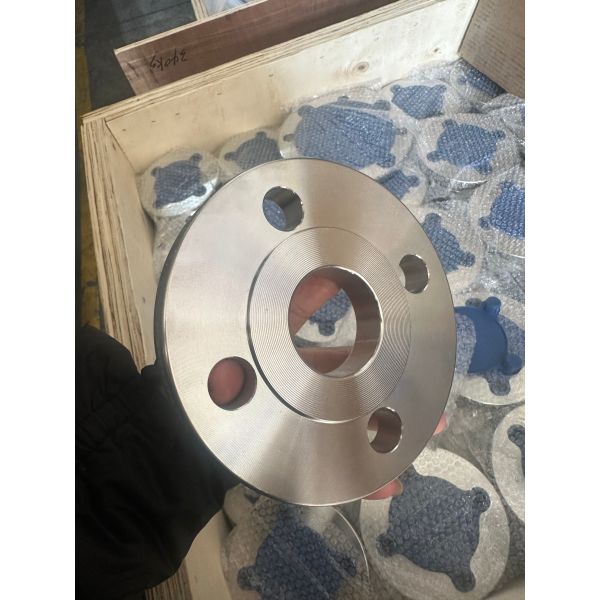

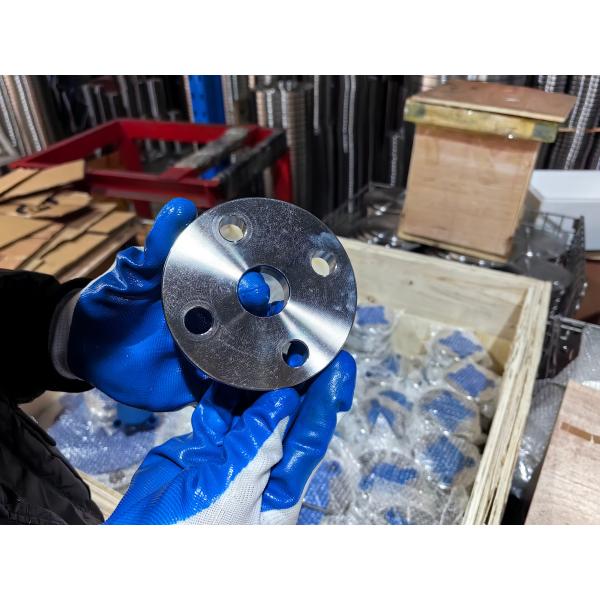

►Shot Shoot

ASTM Plate 304 306 Stainless Steel Flanges Flat Super Duplex Steel FlangesASTM Plate 304 306 Stainless Steel Flanges Flat Super Duplex Steel FlangesASTM Plate 304 306 Stainless Steel Flanges Flat Super Duplex Steel Flanges

►FAQ

Q1: Delivery time?

A: 1- 7 days for small order.10- 20 days for big order.

Q2: Can you supply what's the service?

A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...

Q3: How is the quality about the products?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q4: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
