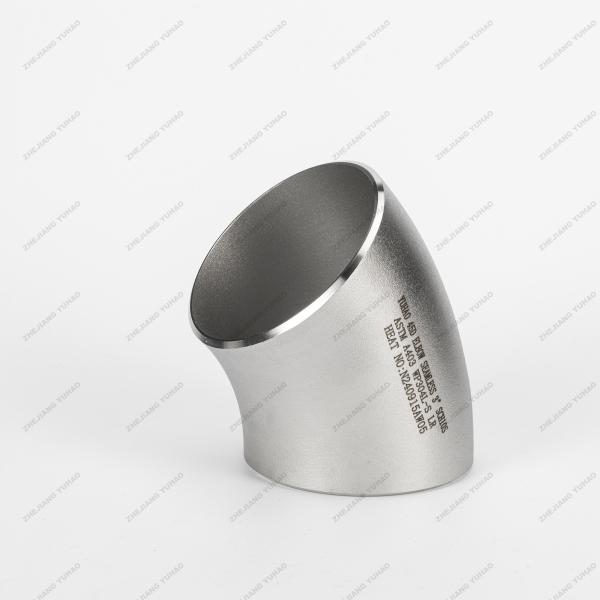

Chemical Plants 316L Stainless Steel Weld Fittings Sand Rolling 45 Degree Stainless Steel Elbow
Chemical Plants 316L Stainless Steel Weld Fittings Sand Rolling 45 Degree Stainless Steel Elbow
Specifications
Brand Name :
Yuhao
Model Number :
Butt Weld Pipe Fittings
Certification :
ASTM, AISI, GB, DIN, JIS
Place of Origin :
China
MOQ :
100kgs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
15days
Packaging Details :
Standard sea worth bundles,Standard Plywood cases
Supply Ability :
2000tons/per month
Standard :
GB/T12459, ASME B16.9, HG/T21635, DIN, JIS
Wall Thickness :
SCH5-SCH160
Diameter Range :
DN15-DN800
Material :
304, 304L, 316, 316L, 321, 310
Surface Finish :
Polished, Brushed, Matte, Sandblasted
Pipe Fitting Type :
Elbow
Connection Type :
Butt Welding
Application :
Food, Water Conservancy, Beverage, Pharmaceutical, Power Plants, Chemical Plants
Corrosion Resistance :
High Corrosion Resistance
Description

Chemical Plants 316L Stainless Steel Weld Fittings Sand Rolling 45 Degree Stainless Steel Elbow


►Products Description

Pipe elbows are essential fittings designed to alter the direction of fluid or gas flow in piping systems. They are primarily used to connect two pipes and come in various angles, with 45-degree and 90-degree elbows being the most widely used. Made from materials such as stainless steel, carbon steel, alloy steel, and PVC, they meet diverse operational and environmental requirements. Their versatility and adaptability make them suitable for a wide range of industrial applications, ensuring efficient and reliable flow management in piping systems. Their design allows for smooth transitions, minimizing disruptions in fluid or gas movement.

►Product Size

Norminal dimeter Outside diante Center to end Center to Conter kg／pc
90°L/R Elbow Approx weight
DN NPS OD B A O sch5s sch10S sch20S/LG sch40S/STD sch80S/XS sch80
15 1/2 18
21.3		 16 38 76 0.04
0.05		 0.05
0.06		 0.06
0.07		 0.06
0.08		 0.08
0.10		 0.08
0.10
20 1/4 25
26.7		 19 38 76 0.06
0.06		 0.07
0.08		 0.09
0.09		 0.09
0.10		 0.12
0.13		 0.12
0.13
25 1 32
33.4		 22 38 76 0.07
0.08		 0.12
0.13		 0.14
0.14		 0.14
0.15		 0.19
0.19		 0.19
0.19
32 1 1/4 38
42.2		 25 48 96 0.11
0.13		 0.18
0.20		 0.21
0.23		 0.23
0.26		 0.30
0.34		 0.30
0.34
40 1 1/2 45
48.3		 29 57 114 0.16
0.17		 0.26
0.28		 0.30
0.32		 0.34
0.37		 0.45
0.49		 0.45
0.49
50 2 57
60.3		 35 76 152 0.27
0.29		 0.45
0.47		 0.57
0.61		 0.62
0.65		 0.85
0.90		 0.85
0.90
65 2 1/2 76
73		 44 95 190 0.58
0.55		 0.82
0.79		 0.97
0.93		 1.35
1.30		 1.79
1.71		 1.79
I.7I
80 3 89 51 114 228 0.82 1.17 1.51 2.04 2.76 2.76
90 3 1/2 101.6 57 133 266 1.09 1.56 2.03 2.85 3.92 3.92
100 4 108
114		 64 152 304 1.32
1.40		 1.90
2.01		 2.47
2.61		 3.64
3.85		 5.05
5.35		 5.05
5.35
125 5 133
141.3
139.7		 79 190 380 2.67
2.84
2.81		 3.27
3.47
3.43		 4.74
5.05
4.99		 6.14
6.54
6.46		 8.72
9.31
9.19		 8.72
9.31
9.19
150 6 168.3
159
165		 95 229 458 4.10
3.86
4.01		 5.01
4.72
4.91		 7.29
6.88
7.14		 10.24
9.64
10.03		 15.41
14.50
15.09		 15.41
14.50
15.09
200 8 219
216		 127 305 610 7.12
7.03		 9.63
9.49		 15.94
15.71		 20.51
20.22		 31.17
30.71		 31.17
30.71
250 10 273
267.4		 159 381 762 13.62
13.34		 16.74
16.39		 24.97
24.44		 36.33
35.56		 49.12
48.06		 57.83
56.57
300 12 325
323.9
318		 190 457 914 22.66
22.58
22.16		 26.10
26.01
25.53		 35.79
35.66
35.00		 53.58
53.40
52.39		 70.69
70.44
49.11		 95.81
95.46
93.63
350 14 377
355.6		 222 533 1066 30.71
28.95		 36.98
34.86		 61.36
57.80		 72.80
68.56		 96.17
90.52		 141.75
133.27
400 16 426
406.4		 254 610 1220 42.05
40.09		 47.90
45.67		 79.55
75.82		 94.42
89.98		 124.87
118.95		 206.35
196.35
450 18 478
457.2		 286 686 1372 53.11
50.78		 60.52
57.86		 100.60
96.14		 199.44
114.14		 158.10
151.03		 296.35
276.29
500 20 529
508		 318 762 1524 74.47
71.48		 86.18
82.72		 123.86
118.87		 147.12
141.14		 194.86
186.94		 391.34
375.00
550 22 559 343 838 1676 86.58 100.21 144.06 171.14 226.75 495.44
600 24 630
610		 381 914 1828 123.32
119.37		 141.21
136.64		 177.37
171.67		 210.78
203.98		 279.45
270.40		 661.10
-
650 26 660 406 991 1982 -- - 201.59 239.58 317.72 -
700 28 720
711		 438 1067 2134 - - 237.03
234.03		 281.75
278.18		 373.80
369.04		 -
750 30 762 470 1143 2286 213.9 266.23 268.89 319.66 424.2 -
800 32 820
813		 502 1219 2438 - - 308.83
306.16		 367.20
364.02		 487.42
483.20		 -
850 34 864 533 1295 2590 - - 345.86 411.27 546.04 -
900 36 920
914		 565 1372 2744 - - 390.39
387.83		 464.28
461.22		 616.56
612.48		 -
950 38 965 600 1448 2896 - - 432.25 514.21 682.98 -
1000 40 1016
2020		 632 1524 3048 - - 479.29
481.19		 570.09
572.35		 757.33
760.35		 -
1050 42 1067 660 1600 3200 - - 528.65 628.85 835.51 -
1100 44 1118
1120		 695 1676 3352 - - 580.43
581.48		 690.49
691.73		 917.53
919.19		 -
1150 46 1168 727 1753 3506 - - 634.45 754.79 1003.1 -
1200 48 1220 759 1829 3658 - - 691.63 822.85 1093.7 -

►Shot Shoot

Chemical Plants 316L Stainless Steel Weld Fittings Sand Rolling 45 Degree Stainless Steel Elbow

Chemical Plants 316L Stainless Steel Weld Fittings Sand Rolling 45 Degree Stainless Steel ElbowChemical Plants 316L Stainless Steel Weld Fittings Sand Rolling 45 Degree Stainless Steel Elbow

►FAQ

Q1: How is the quality about the products?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q2: Are you manufacturer or trading company?

A: We are not only manufacturer but also a trading company,we have more than 12years export experience.

Q3: How do you ensure product quality?

A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.

Q4: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q5: Do you provide samples ? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
