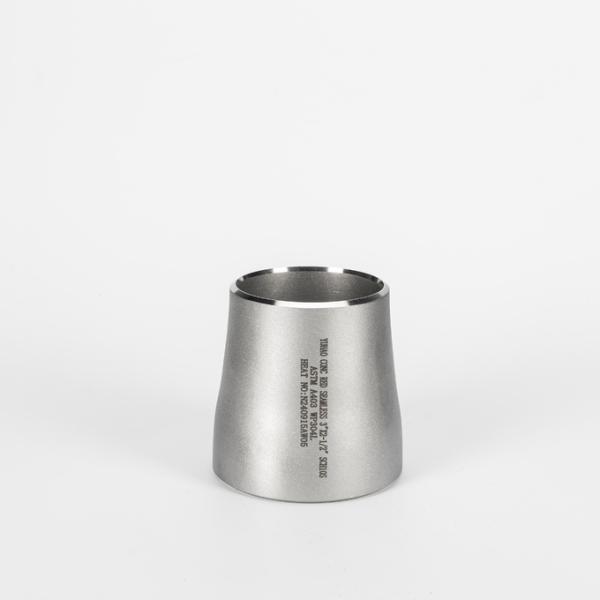

A403 WPW Stainless Steel Butt Welded Fittings 150LB Steel Concentric Reducer
A403 WPW Stainless Steel Butt Welded Fittings 150LB Steel Concentric Reducer
Specifications
Brand Name :
YUHAO
Model Number :
Butt Weld Pipe Fittings
Certification :
ASTM, AISI, GB, DIN, JIS
Place of Origin :
China
MOQ :
100kgs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
15days
Packaging Details :
Standard sea worth bundles,Standard Plywood cases
Supply Ability :
2000tons/per month
wall thickness :
SCH10-SCH160
customized support :
OEM, ODM, OBM
Pressure Rating :
150LB
Standard :
ASTM A403, ASTM A815, ASTM A234
Certifications :
ASME B16.9, MSS-SP-43
Material :
304, 304L, 306, 306L
Pipe Fitting Type :
Concentric Reducer
Connection Type :
Butt Welded
Application :
Oil, Gas, Chemical, Petrochemical, Power, etc.
Size :
DN6-DN800
Description

A403 WPW Stainless Steel Butt Welded Fittings 150LB Steel Concentric Reducer


►Products description

The Stainless Steel Butted Welded Pipe Fittings Stainless Concentric Reducer (A403 WPW) is designed for high-performance industrial applications, offering exceptional durability and corrosion resistance. Manufactured from premium stainless steel, it complies with A403 WPW standards, ensuring reliability in high-pressure and high-temperature environments. The concentric reducer design ensures smooth flow transition, minimizing pressure drop and turbulence. Ideal for chemical, petrochemical, and oil & gas industries, this fitting guarantees leak-proof connections and seamless integration into piping systems. Precision-engineered for long-term performance, it is a trusted solution for critical applications demanding superior quality and reliability.

►Product Size

DN NPS OD Nominal Wall Thickness
Schss Sch10S Sch405 Sch8os Sch10 Sch20 Sch30 STD Sch40 Sch60 XS
6 1/8 10.3 - 1.24 1.73 2.41 - - - 1.73 1.73 - 2.41
8 1/4 13.7 1.65 2.24 3.02 - - - 2.24 2.24 - 3.02
10 3/8 17.1 - 1.65 2.31 3.2 - - - 2.31 2.31 - 3.2
15 1/2 21.3 1.65 2.11 2.77 3.73 - - - 2.77 2.77 - 3.73
20 3/4 26.7 1.65 2.11 2.87 3.91 - - - 2.87 2.87 - 3.91
25 1 33.4 1.65 2.77 3.38 4.55 - - - 3.38 3.38 - 4.55
32 1 1/4 42.2 1.65 2.77 3.56 4.85 - - - 3.56 3.56 - 4.85
40 1 1/2 48.3 1.65 2.77 3.68 5.08 - - - 3.68 3.68 - 5.08
50 2 60.3 1.65 2.77 3.91 5.54 - - - 3.91 3.91 - 5.54
65 2 1/2 73 2.11 3.05 5.16 7.01 - - - 5.16 5.16 - 7.01
80 3 88.9 2.11 3.05 5.49 7.62 - - - 5.49 5.49 - 7.62
90 3 1/2 101.6 2.11 3.05 5.74 8.08 - - - 5.74 5.74 - 8.08
100 4 114.3 2.11 3.05 6.02 8.56 - - - 6.02 6.02 - 8.56
125 5 141.3 2.77 3.4 6.55 9.53 - - - 6.55 6.55 - 9.53
150 6 168.3 2.77 3.4 7.11 10.97 - - - 7.11 7.11 - 10.97
200 8 219.1 2.77 3.76 8.18 12.7 - 6.35 7.04 8.18 8.18 10.31 12.7
250 10 273 3.4 4.19 9.27 12.7 - 6.35 7.8 9.27 9.27 12.7 12.7
300 12 323.8 3.96 4.57 9.53 12.7 - 6.35 8.38 9.53 10.31 14.27 12.7
350 14 355.6 3.96 4.78 - - 6.35 7.92 9.53 9.53 11.13 15.09 12.7
400 16 406.4 4.19 4.78 - 6.35 7.92 9.53 9.53 12.7 16.66 12.7
450 18 457 4.19 4.78 - - 6.35 7.92 11.13 9.53 14.27 19.05 12.7
500 20 508 4.78 5.54 - - 6.35 9.53 12.7 9.53 15.09 20.62 12.7

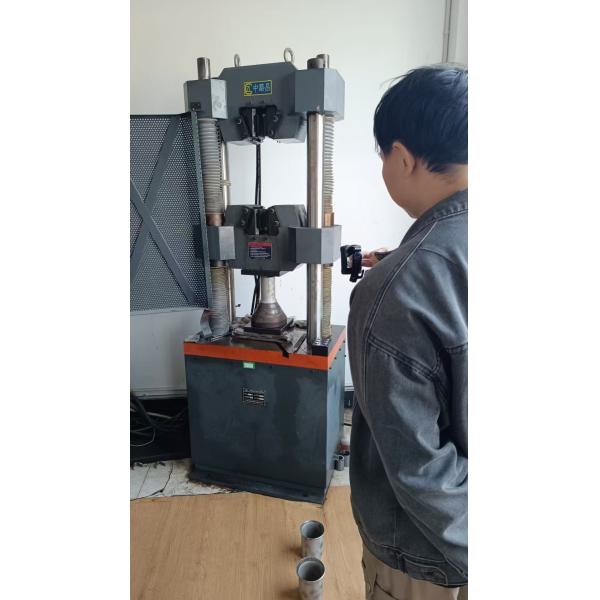

►Factroy Shoot

A403 WPW Stainless Steel Butt Welded Fittings 150LB Steel Concentric ReducerA403 WPW Stainless Steel Butt Welded Fittings 150LB Steel Concentric Reducer

A403 WPW Stainless Steel Butt Welded Fittings 150LB Steel Concentric Reducer

►FAQ

Q1: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.

Q2: Do you have your own factory?
A: Yes, we do. We have our own factory, and we can provide stable stock with competitive price and good quality.

Q3: What is the warranty on your products?
A: One year. However, our products can typically last many years, even decades when installedproperly, protected and used in the right working environment that they have been designed for.

Q4: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: Can you make the product according to our requirements?
A: Yes, we will strictly follow your requirements, such as the way of the package, the length of the product,the treatment of the product and so on.
