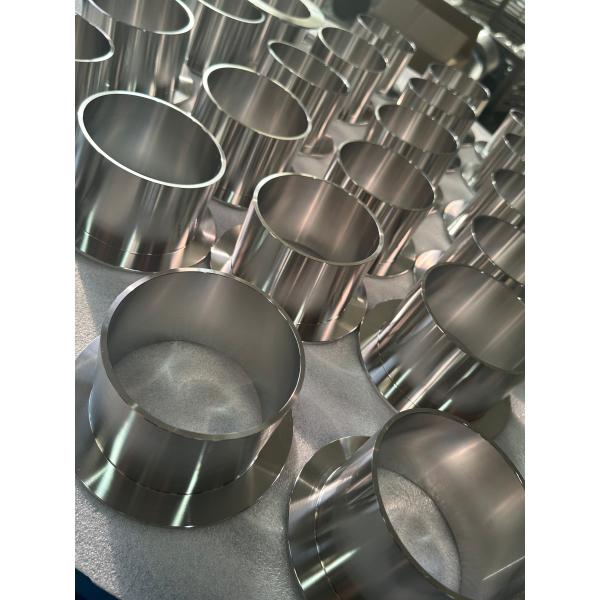

ASTM SCH5-SCH160 Flanging Stainless Steel Weld Pipe Fittings Stub End
ASTM SCH5-SCH160 Flanging Stainless Steel Weld Pipe Fittings Stub End
ASTM SCH5-SCH160 Flanging Stainless Steel Weld Pipe Fittings Stub End
ASTM SCH5-SCH160 Flanging Stainless Steel Weld Pipe Fittings Stub End
Specifications
Brand Name :
YUHAO
Model Number :
Butt Weld Pipe Fittings
Certification :
ASTM, AISI, GB, DIN, JIS
Place of Origin :
China
MOQ :
100kgs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
15days
Packaging Details :
Standard sea worth bundles,Standard Plywood cases
Supply Ability :
2000tons/per month
Wall Thickness :
SCH5-SCH160
Standard :
ASTM, AISI, GB, DIN, JIS
Surface Finish :
Bright Annealed, Pickled, Polished, Sand Blasted
Material :
304, 304L, 316, 316L, 321, 310
Pipe Fitting Type :
Flanging / Stub End
Forming Process :
Cold Forming, TIG Welding
Application :
Water Conservancy, Beverage, Pharmaceutical, Power Plants, Petroleum Gas Pipeline Engineering, Chemical Plants
Diameter Range :
DN15-DN800
Country Of Origin :
China
Corrosion Resistance :
High Corrosion Resistance
Description

ASTM SCH5-SCH160 Flanging Stainless Steel Weld Pipe Fittings Stub End


►Products Description

A stub end is a fitting specifically designed for use with lap joint flanges, enabling both connection and disassembly in piping systems. It comprises two main parts: the stub end, a short pipe section with a flared end, and the lap joint flange, which attaches to the plain section of the stub end, allowing the flared end to rest securely. This configuration ensures easy dismantling of the connection without affecting the welded portion of the stub end, providing significant benefits during system maintenance and modifications.

►Product Size

DN NPS OD Nominal Wall Thickness
Schss Sch10S Sch405 Sch8os Sch10 Sch20 Sch30 STD Sch40 Sch60 XS
6 1/8 10.3 - 1.24 1.73 2.41 - - - 1.73 1.73 - 2.41
8 1/4 13.7 1.65 2.24 3.02 - - - 2.24 2.24 - 3.02
10 3/8 17.1 - 1.65 2.31 3.2 - - - 2.31 2.31 - 3.2
15 1/2 21.3 1.65 2.11 2.77 3.73 - - - 2.77 2.77 - 3.73
20 3/4 26.7 1.65 2.11 2.87 3.91 - - - 2.87 2.87 - 3.91
25 1 33.4 1.65 2.77 3.38 4.55 - - - 3.38 3.38 - 4.55
32 1 1/4 42.2 1.65 2.77 3.56 4.85 - - - 3.56 3.56 - 4.85
40 1 1/2 48.3 1.65 2.77 3.68 5.08 - - - 3.68 3.68 - 5.08
50 2 60.3 1.65 2.77 3.91 5.54 - - - 3.91 3.91 - 5.54
65 2 1/2 73 2.11 3.05 5.16 7.01 - - - 5.16 5.16 - 7.01
80 3 88.9 2.11 3.05 5.49 7.62 - - - 5.49 5.49 - 7.62
90 3 1/2 101.6 2.11 3.05 5.74 8.08 - - - 5.74 5.74 - 8.08
100 4 114.3 2.11 3.05 6.02 8.56 - - - 6.02 6.02 - 8.56
125 5 141.3 2.77 3.4 6.55 9.53 - - - 6.55 6.55 - 9.53
150 6 168.3 2.77 3.4 7.11 10.97 - - - 7.11 7.11 - 10.97
200 8 219.1 2.77 3.76 8.18 12.7 - 6.35 7.04 8.18 8.18 10.31 12.7
250 10 273 3.4 4.19 9.27 12.7 - 6.35 7.8 9.27 9.27 12.7 12.7
300 12 323.8 3.96 4.57 9.53 12.7 - 6.35 8.38 9.53 10.31 14.27 12.7
350 14 355.6 3.96 4.78 - - 6.35 7.92 9.53 9.53 11.13 15.09 12.7
400 16 406.4 4.19 4.78 - 6.35 7.92 9.53 9.53 12.7 16.66 12.7
450 18 457 4.19 4.78 - - 6.35 7.92 11.13 9.53 14.27 19.05 12.7
500 20 508 4.78 5.54 - - 6.35 9.53 12.7 9.53 15.09 20.62 12.7

►Shot Shoot

ASTM SCH5-SCH160 Flanging Stainless Steel Weld Pipe Fittings Stub EndASTM SCH5-SCH160 Flanging Stainless Steel Weld Pipe Fittings Stub End

ASTM SCH5-SCH160 Flanging Stainless Steel Weld Pipe Fittings Stub End

►FAQ

Q1: How is the quality?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q2: Are you manufacturer or trading company?

A: We are not only manufacturer but also a trading company,we have more than 12years export experience.

Q3: How do you ensure product quality?

A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.

Q4: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q5: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
