GB JIS ANSI304L Ss Seamless Tube A312 TP 304l 6.35mm OD Stainless Seamless Tube
GB JIS ANSI304L Ss Seamless Tube A312 TP 304l 6.35mm OD Stainless Seamless Tube
Specifications
Brand Name :
YH
Model Number :
SEAMLESS INDUSTRIAL PIPES
Certification :
ISO PED CE TUV
Place of Origin :
CHINA
MOQ :
100KGS
Price :
NEGOTIATION
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000TONS/PER MONTH
Delivery Time :
15-35DAYS
Packaging Details :
PACKAGED IN SEA-WORTH BUNDLES,PACKAGED IN PLYWOOD CASES
Steel grade :
TP304/304L,TP316L,TP316Ti,TP321,TP309S,TP310S,S31803,2205,904L
Type :
CS Seamless Pipe, SS Seamless Pipe Black Seamless Pipe, GI Seamless Pipe
Standard :
ASTM ( ASME) ,EN, DIN, JIS
OD :
6.35mm - 914.4mm
WT :
SCH10,SCH40,SCH60,XS,SCH80
Length :
0.5M-15M OR AS REQUESTED
Technique :
COLD DRAWING,COLD ROLLED
Surface :
ANNEALED AND PICKING OR POLISHED OR AS REQUESTED
Package :
PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED
Application :
Connection, Decoration, oil and gas, Automative, New Energy, Chemical
Description

ASTM, AISI, GB, JIS, ANSI304L, 316L Ss Seamless Pipes Stainless Seamless Tube

►Products Information

Stainless steel seamless pipes are high-performance tubes widely used in industries such as oil and gas, petrochemical, chemical, and power generation. These pipes are manufactured without any welding seams, ensuring uniform strength and structure throughout the pipe body. This makes them capable of withstanding higher pressure, temperature, and mechanical stress compared to welded pipes. Available in various grades like 304, 316L, and 310S, they offer excellent corrosion resistance and durability in harsh environments. Common applications include conveying pipelines, mechanical structures, and high-pressure systems. With specifications adhering to ASTM, DIN, and other international standards, stainless steel seamless pipes are a reliable choice for demanding industrial needs.

►Product Size

STAINLESS STEEL(KS/JIS)
A O.D SCH 5S SCH 10S SCH 20S SCH 40 SCH 80 SCH 120 SCH 160
6A 10.5 1 1.2 1.5 1.7 2.4 - -
8A 13.8 1.2 1.65 2 2.2 3 - -
10A 17.3 1.2 1.65 2 2.3 3.2 - -
15A 21.7 1.65 2.1 2.5 2.8 3.7 - 4.7
20A 27.2 1.65 2.1 2.5 2.9 3.9 - 5.5
25A 34 1.65 2.8 3 3.4 4.5 - 6.4
32A 42.7 1.65 2.8 3 3.6 4.9 - 6.4
40A 48.6 1.65 2.8 3 3.7 5.1 - 7.1
50A 60.5 1.65 2.8 3.5 3.9 5.5 - 8.7
65A 76.3 2.1 3 3.5 5.2 7 - 9.5
80A 89.1 2.1 3 4 5.5 7.6 - 11.1
90A 101.6 2.1 3 4 5.7 8.1 - 12.7
100A 114.3 2.1 3 4 6 8.6 11.1 13.5
125A 139.8 2.8 3.4 5 6.6 9.5 12.7 15.9
150A 165.2 2.8 3.4 5 7.1 11 14.3 18.2
200A 216.3 2.8 4 6.5 8.2 12.7 18.2 23
250A 267.4 3.4 4 6.5 9.3 15.1 21.4 28.6
300A 318.5 4 4.5 6.5 10.3 17.4 25.4 33.3
350A 355.6 - - - 11.1 19 27.8 35.7
400A 406.4 - - - 12.7 21.4 30.9 40.5
450A 457.2 - - - 14.3 23.8 34.9 45.2
500A 508 - - - 15.1 26.2 38.1 50
550A 558.8 - - - 15.9 28.6 41.3 54
600A 609.6 - - - 17.5 31 46 59.5
650A 660.4 - - - 18.9 34 49.1 64.2

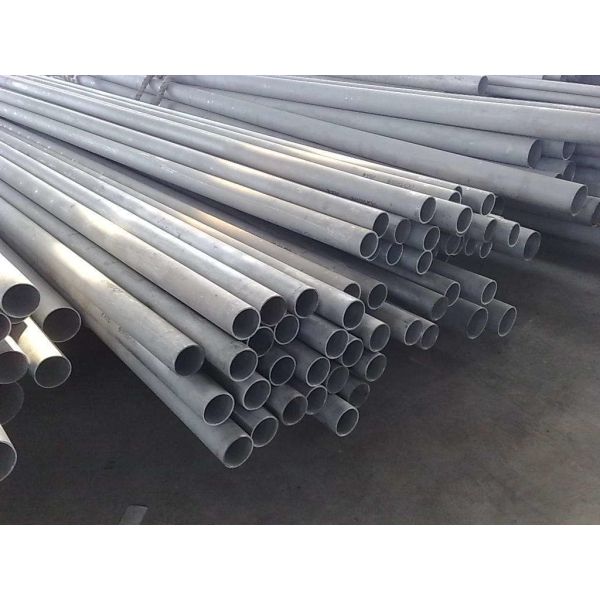

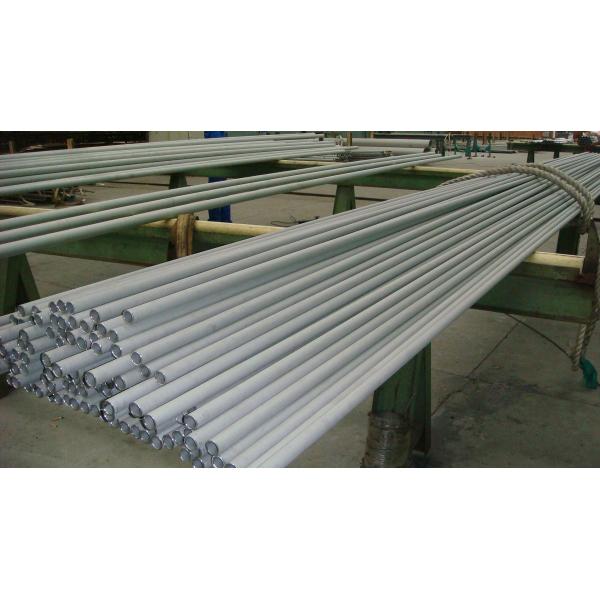

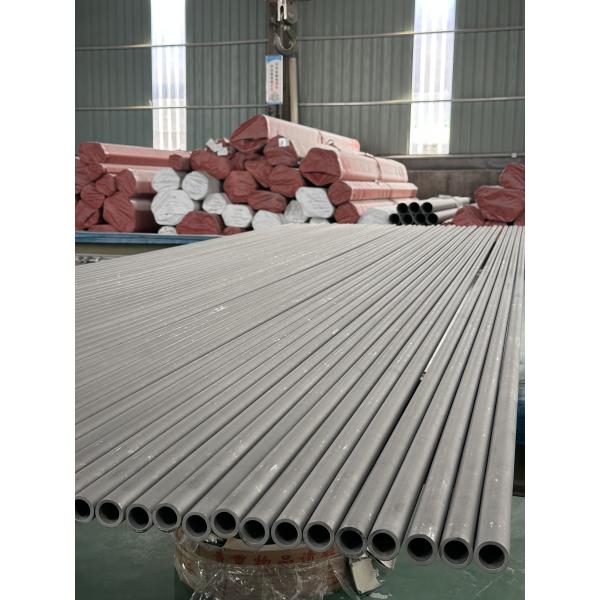

►Factory Shoot

GB JIS ANSI304L Ss Seamless Tube A312 TP 304l 6.35mm OD Stainless Seamless TubeGB JIS ANSI304L Ss Seamless Tube A312 TP 304l 6.35mm OD Stainless Seamless TubeGB JIS ANSI304L Ss Seamless Tube A312 TP 304l 6.35mm OD Stainless Seamless Tube

►FAQ

Q1: How is the quality about the products?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q2: Which payment terms you can accept?

A: We can accept TT,LC,DP,DA,Western Union or Negotiation.

Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q4: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q5: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
