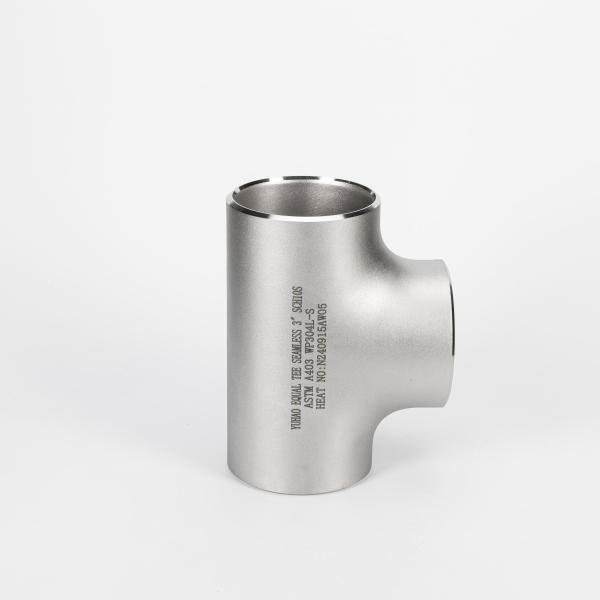

SCH20s-SCH160s Stainless Steel Butt Welded Pipe Fittings SS Equal Tee
SCH20s-SCH160s Stainless Steel Butt Welded Pipe Fittings SS Equal Tee
SCH20s-SCH160s Stainless Steel Butt Welded Pipe Fittings SS Equal Tee
SCH20s-SCH160s Stainless Steel Butt Welded Pipe Fittings SS Equal Tee
Specifications
Brand Name :
YUHAO
Model Number :
Butt Weld Pipe Fittings
Certification :
ASTM, AISI, GB, DIN, JIS, EN
Place of Origin :
China
MOQ :
100kgs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000tons/per month
Delivery Time :
15days
Packaging Details :
Standard sea worth bundles,Standard Plywood cases
wall thickness :
SCH20s-SCH160s
customized support :
OEM, ODM, OBM
Product name :
Tee
surface treatment :
Mirror, Polishing, Sandblasting, Sand Rolled
Connection Type :
Butt Welded
Application :
Oil, Gas, Chemical, Petrochemical, Power, etc.
Packing :
PLY-wooden case or pallet or as for clients' requirements.
Standard :
EN, ASTM, AISI, DIN, JIS
Grade :
304, 304L, 316, 316L, 403, 402
Diameter Range :
DN5-DN1000
Description

SCH20s-SCH160s Stainless Steel Butt Welded Pipe Fittings SS Equal Tee


►Products description

A Stainless Steel Equal Tee is a crucial pipe fitting designed to connect three pipes of equal diameter, facilitating fluid distribution in plumbing, industrial, and sanitary systems. Constructed from high-grade stainless steel (e.g., 304/316L), it offers exceptional corrosion resistance, durability, and hygiene, making it ideal for harsh environments, food processing, and pharmaceutical applications. Available in seamless or welded variants, it complies with standards like ASTM A403, ASME B16.9, and DIN 2605. Features include pressure ratings up to 2000LBS, thickness options (SCH5-SCH160), and ease of welding or press-fit installation. Its robust design ensures leak-proof performance in water, gas, and chemical pipelines.

►Product Size

DN NPS OD Nominal Wall Thickness
Schss Sch10S Sch405 Sch8os Sch10 Sch20 Sch30 STD Sch40 Sch60 XS
6 1/8 10.3 - 1.24 1.73 2.41 - - - 1.73 1.73 - 2.41
8 1/4 13.7 1.65 2.24 3.02 - - - 2.24 2.24 - 3.02
10 3/8 17.1 - 1.65 2.31 3.2 - - - 2.31 2.31 - 3.2
15 1/2 21.3 1.65 2.11 2.77 3.73 - - - 2.77 2.77 - 3.73
20 3/4 26.7 1.65 2.11 2.87 3.91 - - - 2.87 2.87 - 3.91
25 1 33.4 1.65 2.77 3.38 4.55 - - - 3.38 3.38 - 4.55
32 1 1/4 42.2 1.65 2.77 3.56 4.85 - - - 3.56 3.56 - 4.85
40 1 1/2 48.3 1.65 2.77 3.68 5.08 - - - 3.68 3.68 - 5.08
50 2 60.3 1.65 2.77 3.91 5.54 - - - 3.91 3.91 - 5.54
65 2 1/2 73 2.11 3.05 5.16 7.01 - - - 5.16 5.16 - 7.01
80 3 88.9 2.11 3.05 5.49 7.62 - - - 5.49 5.49 - 7.62
90 3 1/2 101.6 2.11 3.05 5.74 8.08 - - - 5.74 5.74 - 8.08
100 4 114.3 2.11 3.05 6.02 8.56 - - - 6.02 6.02 - 8.56
125 5 141.3 2.77 3.4 6.55 9.53 - - - 6.55 6.55 - 9.53
150 6 168.3 2.77 3.4 7.11 10.97 - - - 7.11 7.11 - 10.97
200 8 219.1 2.77 3.76 8.18 12.7 - 6.35 7.04 8.18 8.18 10.31 12.7
250 10 273 3.4 4.19 9.27 12.7 - 6.35 7.8 9.27 9.27 12.7 12.7
300 12 323.8 3.96 4.57 9.53 12.7 - 6.35 8.38 9.53 10.31 14.27 12.7
350 14 355.6 3.96 4.78 - - 6.35 7.92 9.53 9.53 11.13 15.09 12.7
400 16 406.4 4.19 4.78 - 6.35 7.92 9.53 9.53 12.7 16.66 12.7
450 18 457 4.19 4.78 - - 6.35 7.92 11.13 9.53 14.27 19.05 12.7
500 20 508 4.78 5.54 - - 6.35 9.53 12.7 9.53 15.09 20.62 12.7

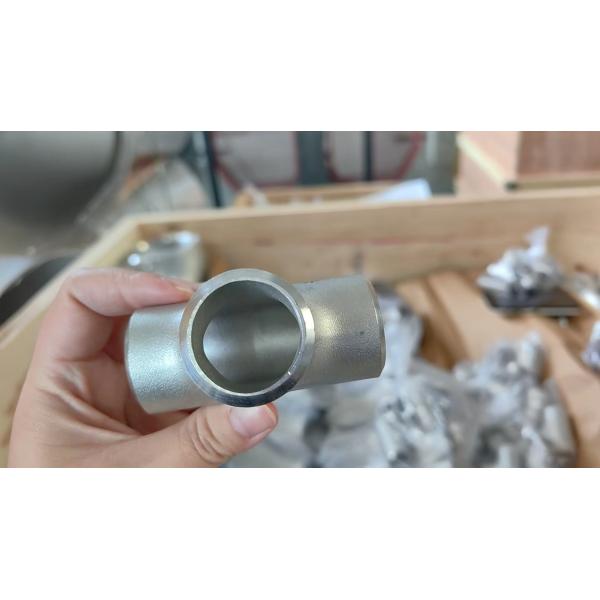

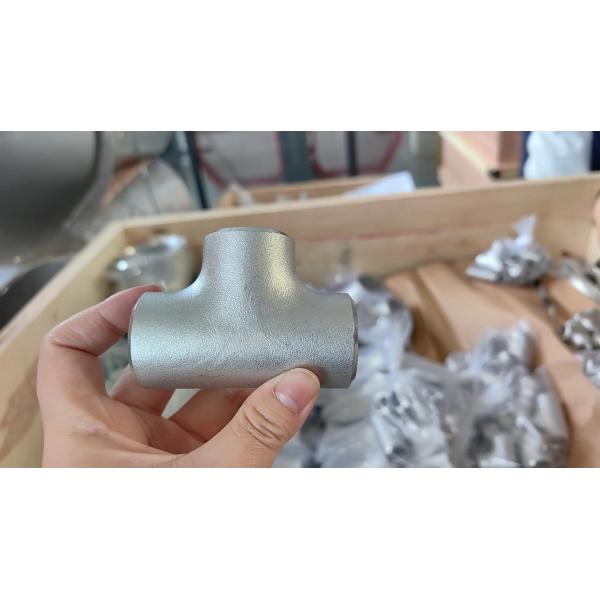

►Factroy Shoot

SCH20s-SCH160s Stainless Steel Butt Welded Pipe Fittings SS Equal Tee

SCH20s-SCH160s Stainless Steel Butt Welded Pipe Fittings SS Equal Tee

SCH20s-SCH160s Stainless Steel Butt Welded Pipe Fittings SS Equal Tee

►FAQ

Q1: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q2: How is the quality about the products?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q4: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
