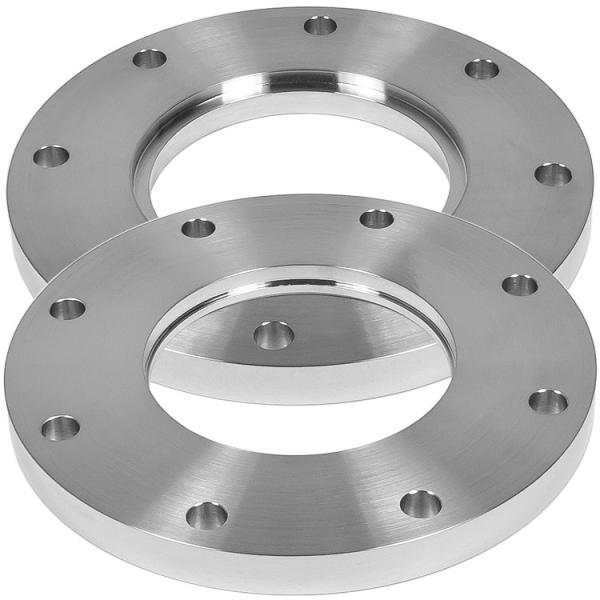

SS304 SS316 Forged Steel Slip On Flange Blind Plate ANSI 1/2''-60''
SS304 SS316 Forged Steel Slip On Flange Blind Plate ANSI 1/2''-60''
Specifications
Brand Name :
HUAHAI
Model Number :
1/2''-64''
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100000pcs
Delivery Time :
15days
Packaging Details :
plywood cases
Standard :
ANSI
Application :
Industrial,Petroleum,DIY Furniture Decor,fittings and connection,cosmetic
Material :
Carbon Steel
Pressure :
CLASS150/CLASS300/CLASS600/CLASS900/CLASS1500/CL
Certificate :
ISO9001
Surface treatment :
Black oxidation
Description

Stainless Steel SS304/SS316 Forged Steel Slip-on Flange /Stainless Steel Flanges Blind Plate Flange

Stainless Steel SS304/SS316 Forged Steel Slip-on Flange

Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water pump, it's not inapposite to call water pump as flange type parts,but relative small valve,it can be called as flange type parts .

Item Welding neck flanges,Plate flanges,Slip on flange,Blind flange,Threaded flange,Socket welding flange
Standard ANSI ANSI B16.5 ASME B16.47 series A/B
DIN DIN
GOST GOST 12820-80/ GOST 12821-80 /GOST 12822-80
EN EN1092-1:2002
JIS JIS B2220-2004,KS D3576, KS B6216 KS B1511-2007 JIS B2216;JIS B8210
BS BS4504 BS10 TABLE D/E
Size ANSI 1/2''-60''
DIN DN15-DN2000
GOST DN15-DN1600
EN DN15-DN2000
JIS 15A-1500A
BS DN15-DN2000
Material ANSI CS A105, 105N, SS304/304L, 316/316L, ALLOY STEEL:WHPY45/52/65/80
DIN SS304/304L, 316/316L, CS RST37.2, S235JR
GOST S304/304L ,316/316L ,CS CT20, 16MN ,
EN Q235, SS304/304L, 316/16L ,CS ,RST37.2 ,S235JR ,C22.8
JIS S304/304L ,316/316L, SS400, SF440
BS Q235SS, 304/304L ,316/316L, CSRST37.2, S235JR ,C22.8;
Pressure ANSI CLASS 150 ,300 ,600, 900, 1500, 2500
DIN PN6,10,16,25,40,64,100
GOST PN6,10,16,25,40,64,100
EN PN6,10,16,25,40,64,100
JIS 1K,2K,5K,10K,16K,20K,30K,40K
BS PN6,10,16,25,40,64,100
Surface Anti-rust,galvanizing,varnisg,color painting...etc
Usage Used for connection of all kinds of pipe line such as valves,pies...etc
Medium Water,gas,oli...etc
Our advantage Factory direct sales
Most competitive price and guaranteed quality
Strong production capacity and prompt delivery
Trial order are avialable
Good pre-sales service and after-sales service

Flange Standard Flange Size Flange Pressure Flange Type
ANSI B16.5 1/2'-24' Class150 Class300 Blind Plate Slip on Welding Neck
ASME B16.5 Class600 Class900 Socket welling Threaded RTJ(tiring type joint )
ASA B16.5 Class1500 Class2500 Facing: FF (flat face) RF (raised face)
ANSI B16.47 (A) 1/2'-60' Class150,300 Slip on Welding neck RTJ(ring type joint)
Class400,600,900 Facing: FF (flat face) RF (raised face)
ANSI B16.5 (B) 26'-60' Class75,150,300 Slip on Welding neck RTJ(ring type joint)
Facing: FF (flat face) RF (raised face)
ANSI B16.36 1"-24" Class300,400,600 Slip on Welding neck Threaded RTJ
Class900,1500,2500 Facing: FF (flat face) RF (raised face)
EN1092-1 Type01 DN10-DN2000 pn6 pn10 pn16 pn25 pn40 Plate flange
EN1092-1 Type05 DN10-DN3000 pn6 pn10 pn16 pn25 pn40 Blind flange
EN1092-1 Type11 DN15-DN3000 pn6 pn10 pn16 pn25 pn40 Welding neck flange
EN1092-1 Type13 DN10-DN150 pn6 pn10 pn16 pn25 pn40 Threaded flange
EN1092-1 Type02 DN15-DN1000 pn6 pn10 pn16 Loose flange
GOST 12820-80 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Plate flange
pn2.5MPa 4.0MPa 6.4MPa FF(flute face) RF(raised face)
GOST 12821-80 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Welding neck flange
pn2.5MPa 4.0MPa 6.4MPa FF(flute face) RF(raised face)
GOST 12836 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Blind flange
pn2.5MPa 4.0MPa FF(flute face) RF(raised face)
