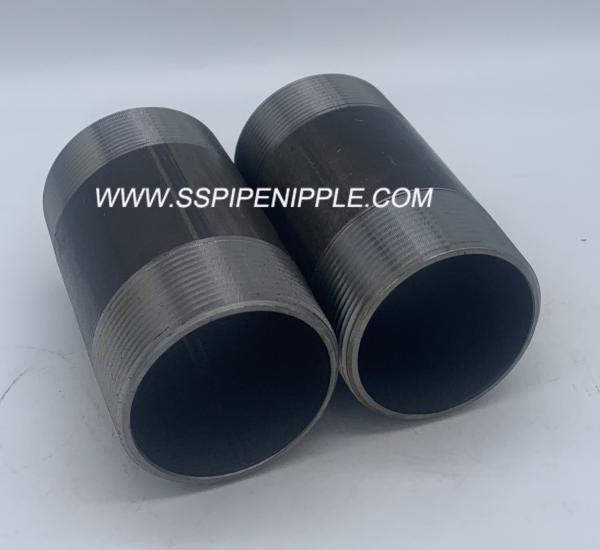

SCH 40 Black Pipe Nipple NPT 2X6 Conform To ASTM A53 ASTM 733
SCH 40 Black Pipe Nipple NPT 2X6 Conform To ASTM A53 ASTM 733
Specifications
Brand Name :
HUAHAI
Model Number :
1/8"--8"
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
0.1-8USD
Payment Terms :
T/T
Supply Ability :
100000PCS
Delivery Time :
30DAYS
Packaging Details :
BOX-PALLET
Technics :
Casting
Shape :
Equal
Material :
Carbon Steel Pipes
Surface :
Black
Description

NEW SCH40 BLACK PIPE NIPPLES ASTM A53.pdf

Schedule SCH40 Welded Steel Pipe Nipples - Black

• The material for Welded steel pipe conforms to the requirements of ASTM A53
• Welded Steel Pipe Nipple Design/Dimensions conform to ASTM A733.
Contact HUAHAI for exact dimensional information.
• NPT threads on Nipples conform to ASME B1.20.1. Threads are right hand on both the ends.
• The ends of the Nipple are chamfered on the outside at an angle of 35˚ +/- 10˚.
to the central axis and free from burrs
• Ends are cut square to the central axis.
• All nipples are stamped with heat code and material sepcifications

SCH 40 Black Pipe Nipple NPT 2

SCH 40 Black Pipe Nipple NPT 2

B A Length
Pipe Size Pipe O.D. Close Space
1/8” 0.405 3/4" 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
1/4” 0.54 7/8" 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
3/8” 0.675 1 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
1/2” 0.84 1 1/8 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
3/4” 1.05 1 3/8 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
1” 1.315 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
11/4” 1.66 1 5/8 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
11/2” 1.9 1 3/4 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
2” 2.375 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
21/2” 2.875 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
3” 3.5 2 5/8 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
4” 4.5 2 7/8 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
5” 5.563 3 4 1/2 5 5 1/2 6 7 8 9 10 11 12
6” 6.625 3 1/8 4 1/2 5 5 1/2 6 7 8 9 10 11 12
8” 8.625 3 1/2 4 1/2 5 5 1/2 6 7 8 9 10 11 12

Type: Close Nipple, Short Nipple, Shoulder nipple, Long Nipple, Running Nipple, Barrel Nipple etc
Type of pipe: Welded or Seamless pipe
Size: 1/8" to 8"
Length: 3/4"-24"; 19mm-500mm; Or as per customer's request
Thickness: SCH40, SCH80, SCH160; CLASS A, CLASS B, CLASS C
Material: Carbon steel; Stainless steel: 304/304L/316/316L/321
Standard:
American Standard: ASTM A733 / PIPE: ASTM A53 / ASTM A106 / THREADS: ANSI B1.20.1
British Standard: BS EN10241 / PIPE: BS1387 / THREADS: ISO 7/1
DIN Standard: DIN2982 / PIPE: DIN2440 / THREADS: DIN2999
Surface treatment: Black, Hot galvanized, Electro galvanized
Packing: Packed in cartons, then on pallet
Min Order Quantity: According to customer's requirement
Delivery Time: 25 days after order conformed
Payment: By T/T or L/C
Applications range:1) Petroleum, chemical industry, water conversancy, electric power, Natural gas, Coal gas, Water power and other pipeline projects.
2) Industrial pipeline system on shipping, mine, oil field, textile, powder plant etc
3) Pipeline system on subway station, railway station, airport, seaport, bridge etc
