Industrial Black Pipe Nipple 2X3 Male Threaded Pipe Nipples
Industrial Black Pipe Nipple 2X3 Male Threaded Pipe Nipples
Specifications
Brand Name :
HUAHAI
Model Number :
1/8"--8"
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
0.1-8USD
Payment Terms :
T/T
Supply Ability :
100000PCS
Delivery Time :
30DAYS
Packaging Details :
BOX-PALLET
Technics :
Casting
Shape :
Equal
Material :
Carbon Steel Pipes
Surface :
Black
Description

NEW SCH40 BLACK PIPE NIPPLES ASTM A53.pdf

Schedule SCH40 Welded Steel Pipe Nipples - Black

SCH40 BLACK STEEL NIPPLE NPT ASTM A53 2"X3" ASTM 733 ANSI/ASME B1.20.1

• The material for Welded steel pipe conforms to the requirements of ASTM A53
• Welded Steel Pipe Nipple Design/Dimensions conform to ASTM A733.
Contact HUAHAI for exact dimensional information.
• NPT threads on Nipples conform to ASME B1.20.1. Threads are right hand on both the ends.
• The ends of the Nipple are chamfered on the outside at an angle of 35˚ +/- 10˚.
to the central axis and free from burrs
• Ends are cut square to the central axis.
• All nipples are stamped with heat code and material sepcifications

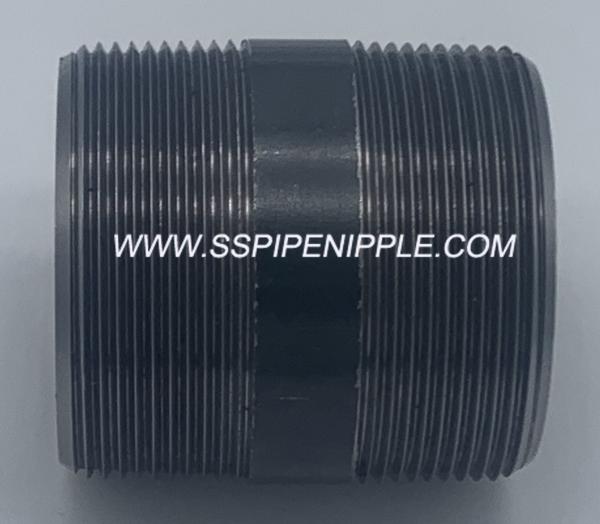

Industrial Black Pipe Nipple 2

Industrial Black Pipe Nipple 2

B A Length
Pipe Size Pipe O.D. Close Space
1/8” 0.405 3/4" 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
1/4” 0.54 7/8" 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
3/8” 0.675 1 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
1/2” 0.84 1 1/8 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
3/4” 1.05 1 3/8 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
1” 1.315 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
11/4” 1.66 1 5/8 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
11/2” 1.9 1 3/4 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
2” 2.375 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
21/2” 2.875 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
3” 3.5 2 5/8 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
4” 4.5 2 7/8 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
5” 5.563 3 4 1/2 5 5 1/2 6 7 8 9 10 11 12
6” 6.625 3 1/8 4 1/2 5 5 1/2 6 7 8 9 10 11 12
8” 8.625 3 1/2 4 1/2 5 5 1/2 6 7 8 9 10 11 12

STEEL PIPE NIPPLE DETAILS

Material 1.Carbon steel 2.Stainless steel
British Standard Threads:BS21
DIN Standard Threads:DIN2999
American Standard Threads:ASTM A865, ASTM A733
Hydraulic Test Test Pressure: Max2.5MPa
Working Pressure: Max2.5MPa
Model Thread both end nipple, thread one end nipple, close/full nipple
Surface 1. Galvanized 2. Electro galvanised 3. normal black 4. sand blasting
Size OD:1/8''-6''
WT: SCH20, SCH40, SCH60, SCH80, SC100, SCH120, SCH160, STD, xs, xxs, CLASS A, CLASS B, CLASS C etc
Length: Standard or Special
Series Heavy series, Standard series, Mediun series, Light series
Connection Male
Shape Equal
Certificate ISO, BV
Customers' drawing or designs are available.
