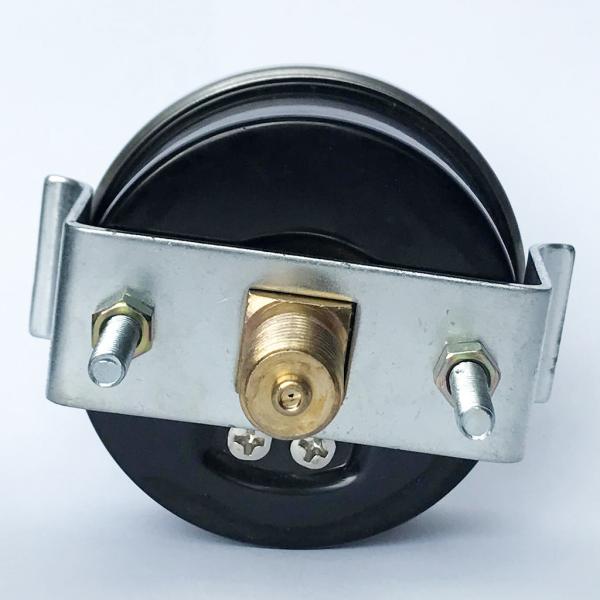

63mm Vacuum Pressure Gauge Bracket Mount PC U Clamp Pressure Gauge
63mm Vacuum Pressure Gauge Bracket Mount PC U Clamp Pressure Gauge
63mm Vacuum Pressure Gauge Bracket Mount PC U Clamp Pressure Gauge
63mm Vacuum Pressure Gauge Bracket Mount PC U Clamp Pressure Gauge
63mm Vacuum Pressure Gauge Bracket Mount PC U Clamp Pressure Gauge
63mm Vacuum Pressure Gauge Bracket Mount PC U Clamp Pressure Gauge
63mm Vacuum Pressure Gauge Bracket Mount PC U Clamp Pressure Gauge
63mm Vacuum Pressure Gauge Bracket Mount PC U Clamp Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M07.02.063.B
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
63mm
Mount :
Panel Mount
Pressure Range :
-1 bar, vacuum
Case Material :
Painted Steel
Lens Material :
PC
Bourton Tube :
Brass
Movement :
Brass
Dial :
Aluminum
Color :
Black
Description

63mm 2.5" -1 bar Bracket Mounting Manometer Painted Steel U-Clamp Vacuum Pressure Gauge

Description

Vacuum can refer to any pressure between 0 PSIA and 14.7 PSIA and consequently must be further defined. For applications concerned with measuring vacuum pressures over this full range, two different approaches are often taken.

Applications

Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.

Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 2.5, 1.6
Pressure range -1 bar vacuum (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass, C-type or helical type
Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Painted steel
Window Plastic, glass
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

lower mount (radial)

63mm Vacuum Pressure Gauge Bracket Mount PC U Clamp Pressure Gauge

Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85

back mount (axial)

63mm Vacuum Pressure Gauge Bracket Mount PC U Clamp Pressure Gauge

Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

63mm Vacuum Pressure Gauge Bracket Mount PC U Clamp Pressure Gauge
