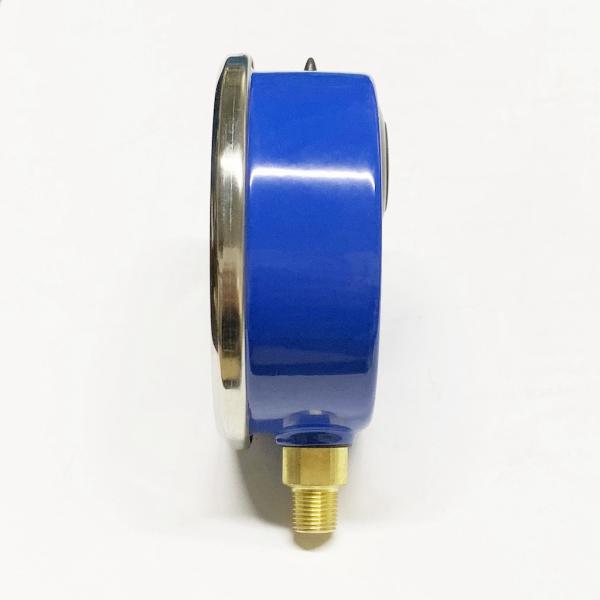

Glass Ammonia Refrigeration Pressure Gauge 300 Psi 80mm Water Chiller Manometer
Glass Ammonia Refrigeration Pressure Gauge 300 Psi 80mm Water Chiller Manometer
Glass Ammonia Refrigeration Pressure Gauge 300 Psi 80mm Water Chiller Manometer
Glass Ammonia Refrigeration Pressure Gauge 300 Psi 80mm Water Chiller Manometer
Glass Ammonia Refrigeration Pressure Gauge 300 Psi 80mm Water Chiller Manometer
Glass Ammonia Refrigeration Pressure Gauge 300 Psi 80mm Water Chiller Manometer
Specifications
Brand Name :
WESEN or Customized
Model Number :
M10.01.080.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
80mm
Mount :
Radial direction
Pressure Range :
300 psi or Customized
Case Material :
Blue pained steel
Lens Material :
PC, safety glass
Bourton Tube :
Copper alloy
Movement :
Copper alloy
Dial :
Aluminum, white
Accuracy :
1.6
Description

80mm Blue Painted Steel Refrigeration Pressure Gauge 300 psi Brass Connection Water Chiller Manometer

Description

The large overhanging free end of the Bourdon tube makes this measuring principle sensitive to vibrations.

When vibrations occur, the overhanging part will make small up and down movements. The transmission mechanism ensures that this movement is amplified and passed on to the pointer. As a result, the pointer will constantly move back and forth, making accurate reading impossible.

Applications

Measuring refrigerant ammonia pressure and temperature

Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system

Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction

​​

Special features

Excellent load-cycle stability and shock resistance

All stainless steel construction

Ammonia refrigerant scales on dial

Specifications

Design

EN 837-1

Nominal size

 80mm

Accuracy

 1.6, 1.0
Pressure range 300 psi (customized)

Working pressure

63mm:

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value

100mm:

Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value
Permissible temperature

Ambient:

-40 ... +60 °C - dry;

-20 ... +60 °C - glycerine filled

-40 ... +60 °C - silicone filled

Mediium:

+100 °C maximum

Ingress protection

 IP66

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4%/10 K of the span

Process connection

 Copper alloy

Pressure element

 Copper alloy
Movement Copper alloy
Dial Aluminium
Pointer Aluminium
Case Blue painted steel
Ring Steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket

Dimensions

Glass Ammonia Refrigeration Pressure Gauge 300 Psi 80mm Water Chiller Manometer

Size A B C D E J L M N S T W
63mm 69 54 32 62 13 3.6 7.5 85 75 6.5 1/4" 14
100mm 107 87 48 100 15.5 4.8 9 132 116 8 1/2" 22

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Glass Ammonia Refrigeration Pressure Gauge 300 Psi 80mm Water Chiller Manometer
