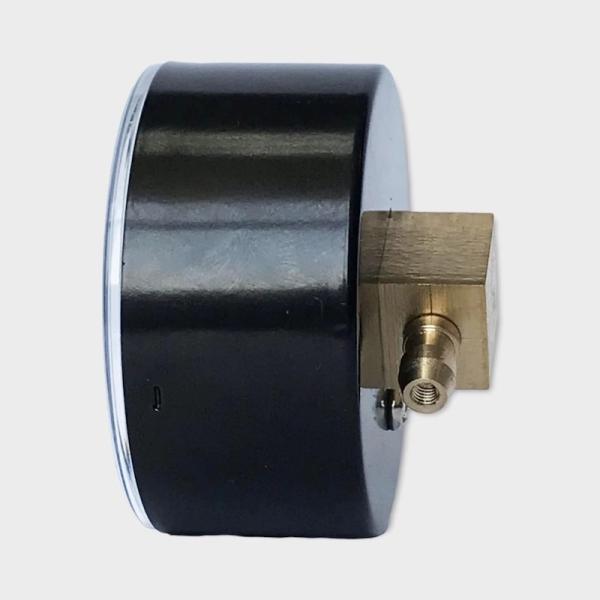

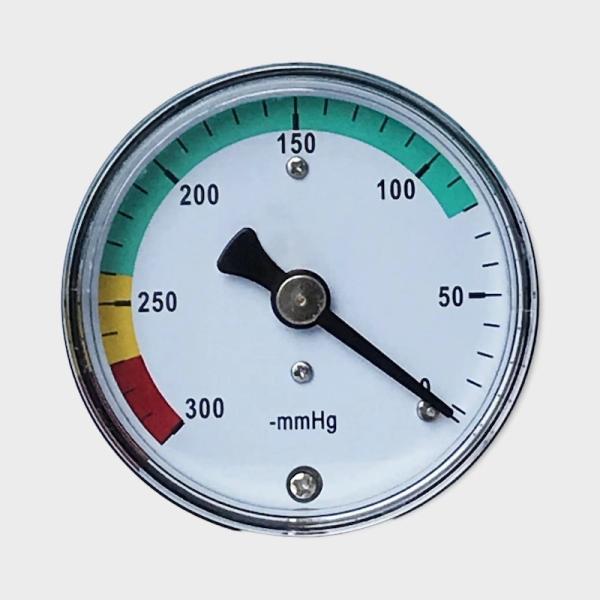

50mm Dial Vacuum Capsule Pressure Gauge Steel Case Brass Internals 300mmHg
50mm Dial Vacuum Capsule Pressure Gauge Steel Case Brass Internals 300mmHg
50mm Dial Vacuum Capsule Pressure Gauge Steel Case Brass Internals 300mmHg
50mm Dial Vacuum Capsule Pressure Gauge Steel Case Brass Internals 300mmHg
50mm Dial Vacuum Capsule Pressure Gauge Steel Case Brass Internals 300mmHg
50mm Dial Vacuum Capsule Pressure Gauge Steel Case Brass Internals 300mmHg
Specifications
Brand Name :
WESEN or Customized
Model Number :
M08.02.050.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-3
Size :
50mm
Mount :
Center back
Pressure Range :
-300~0 mmHg or Customized
Case Material :
Black steel
Lens Material :
Acrylic
Bellows :
Brass
Movement :
SUS 304
Dial :
Aluminum
Accuracy :
2.5, 1.6
Description

50mm Dial Black Steel Case Brass Internals -30mmHg Wholesale Vacuum Low Pressure Gauge

Description

Low-pressure gauges have a bellows or a diaphragm sensor for sensitive low-pressure readings. Diaphragm-sensor gauge applications include gas burners, vacuum ovens, and suction regulators/respirators. Bellows gauges are for applications usually found in oil, gas, chemical, and water/wastewater pressure control environments. Typical media applications include natural gas pressure, air flow indications, and lead detection.

Applications

Low pressure gauge for applications in a controlled environment

Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring

For gaseous, dry and non-aggresive media

Special features

Front zero adjustment

Special connections on request

Scale ranges from 0/10 InWC (25 mbar)

Specifications

Design

EN 837-3

Nominal size

50mm

Accuracy

± 1.6 of full scale value

Pressure range

-300~0 mmHg (customized)

Standard ranges

2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar)

2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges

Standard scales

InH2O/mmH2O

oz/sq.in/mmH2O

oz/sq.in/InH2O

PSI

Pressure limitation

Steady: full scale value
Fluctuating: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +100 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span

Process connection

Brass

Pressure element

Brass

Movement

Brass

Dial

Aluminium, white, black lettering

Pointer

Aluminium

Case

Black steel, painted steel

Window

Acrylic

Zero adjustment

At the front

Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

50mm Dial Vacuum Capsule Pressure Gauge Steel Case Brass Internals 300mmHg

Size

Dimension in inches

Weight in LBS

a

b

b1

b2

D

G

h

SW

2”

-

-

1.10

1.89

50

1/4”NPT

-

0.55

0.20

2½”

0.37

1.57

1.44

2.19

63

1/4”NPT

2.00

0.55

0.44

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

50mm Dial Vacuum Capsule Pressure Gauge Steel Case Brass Internals 300mmHg
